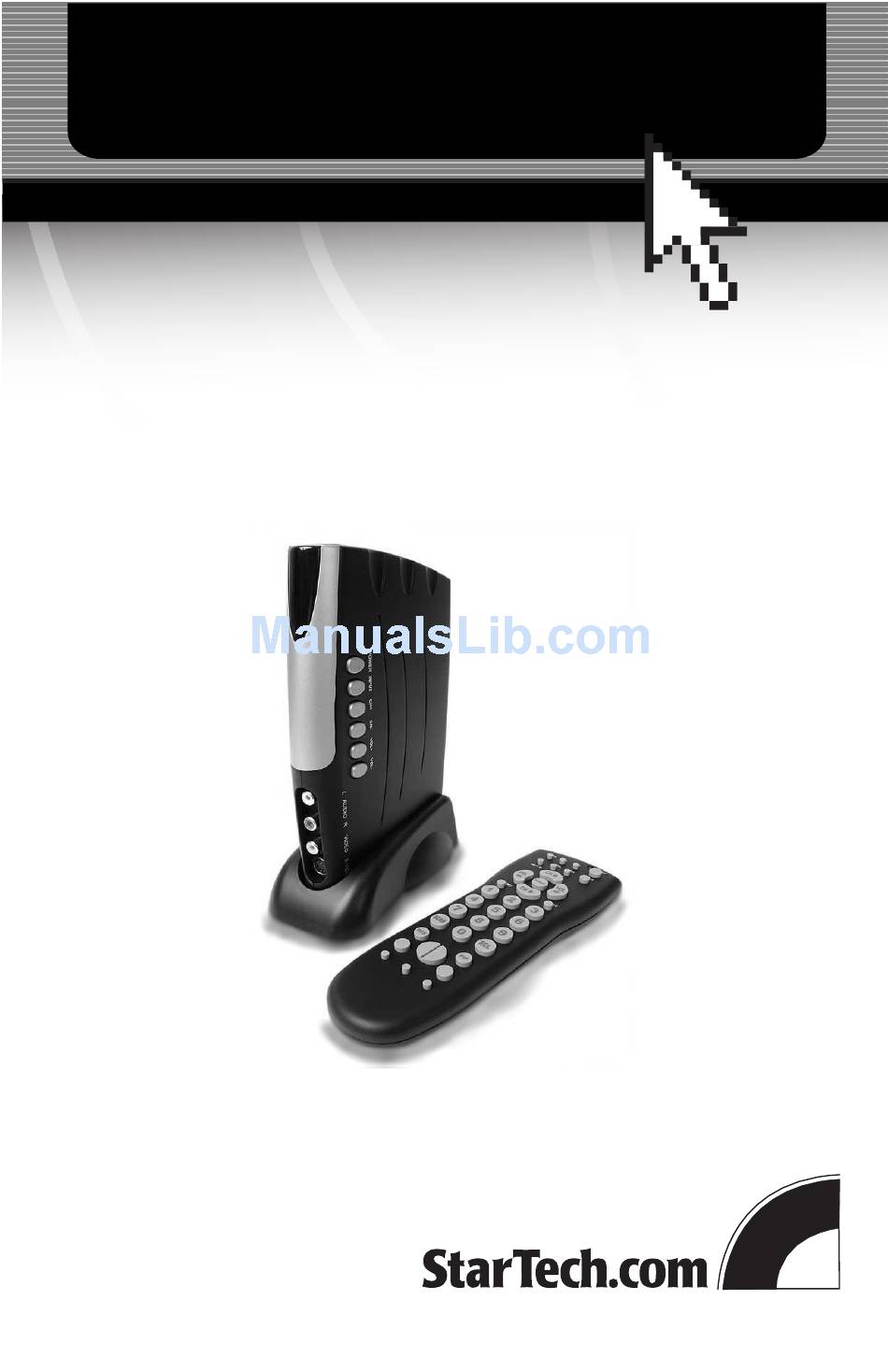

- Page 1 VIDEO ADAPTER The TV Jockey Computer Monitor TV Tuner with Remote COMP2VGATVGB Instruction Guide * Actual product may vary from photo The Professionals’ Source For Hard-to-Find Computer Parts...
- Page 2 FCC COMPLIANCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
-
Page 3: Table Of Contents
Table of Contents Introduction Installation Suggested Configurations 4 Using the Remote Adjusting Your TV Jockey 7 Troubleshooting 10 Technical Specifications Technical Support Information Warranty Information... -
Page 4: Introduction
Introduction Thank you for purchasing a StarTech.com TV Jockey. Now you can turn your computer monitor into a multimedia TV capable of showing video from your cable/satellite TV feed, VCR, DVD player, camcorder, or game console. With the remote control, you can easily flip between computer and TV modes, change the channel, adjust the volume, or adjust your video settings with just the touch of a button. -
Page 5: Installation
Installation There are many different ways to configure your TV Jockey, depending on how you want to use it. Please use the diagrams below and the instructions on the following pages to assist you in your installation. NOTE: The INPUT button on the front of the device scrolls through CATV IN (for a connection to a cable television service), CVBS (for connections that use the yellow VIDEO connector on the front of the unit, like VCRs and some game consoles), S-VIDEO IN (for connections to S- Video sources like some DVD players, game consoles or camcorders), and PC to switch back to... -
Page 6: Suggested Configurations
Suggested Configurations Depending on what you want to do with your TV Jockey, you will be connecting devices to it in different ways. To watch TV on your monitor Connect your CATV cable to the CABLE IN port on the back of the converter. Connect your speakers or other audio output devices to the SPEAKER port on the back of the converter. -
Page 7: Using The Remote
Using the Remote Explanation of Functions With the exception of the POWER function, the features on the remote will only work in TV mode. When you press any of the function buttons on the remote, there will be a corresponding on-screen message showing your selection. - Page 8 CATV IN: Cable television, satellite, or other source connected using the CABLE IN port on the back of the unit. CVBS: A source connected using the VIDEO A/V jack on the front of the unit. Audio is provided through the AUDIO L/R A/V jacks, also on the front of the unit. S-VIDEO IN: A source connected to the special S-VIDEO jack on the front of the unit.
-
Page 9: Adjusting Your Tv Jockey
Adjusting Your TV Jockey When you press the MENU key, you will be presented with a menuing system that will allow you to adjust the settings of the TV Jockey. You can navigate the menu options by using the arrow keys on the remote (‹›flfi) to highlight your choice. Press SELECT on the remote to choose the highlighted option. - Page 10 Sharpness: Adjusts picture clarity 3. TV Function 1. Input 1. TV System 2. Picture 2. Channel Edit 3. TV Function > 3. Fine Tune 4. Resolution 4. MTS 5. OSD Function 5. Full Scan 6. Reset 6. Channel Scan TV System: You may choose either CATV (cable/satellite) or AIR (antenna: North America only) Channel Edit: You may choose either ADD or ERASE to manually change the list of channels found during a channel scan...
- Page 11 4. Resolution 1. Input 1. 640 x 480 2. Picture 2. 800 x 600 3. TV Function 3. 852 x 480 4. Resolution > 4. 1024 x 768 5. OSD Function 6. Reset The settings for this menu mirror the functionality of the RES key on the remote. For a complete description of these options, please see page 6.
-
Page 12: Troubleshooting
6. Reset 1. Input 2. Picture 3. TV Function 4. Resolution 5. OSD Function 6. Reset When selected, this returns all of the settings for the TV Jockey to the factory defaults. Do not choose this option if you wish to keep the changes you have made. Troubleshooting First make sure that all cables are in their proper ports and are firmly seated. -
Page 13: Technical Specifications
Technical Specifications Channels 106 Channels (PAL) Input connectors 75 ohm Coaxial TV antenna/cable S-Video Composite video RCA Left/Right for audio in Signal connectors 3.5 mm jack for audio (stereo audio from sound card) 15-pin HD female connector (from VGA card) Output connectors Composite video (TV mode only) 3.5 mm audio jack (to speaker) -
Page 14: Technical Support Information
Limitation of Liability In no event shall the liability to StarTech.com Ltd. (or its officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of related to the use of the product exceed the actual price paid for the product.
