FOXBOX DVI Plus • Setup Guide (Cont'd)
Step 4 — Remote Connector
Connect a host device to either unit's front panel Configuration connector via the 9-pin D to 2.5 mm mini jack TRS RS-232
cable that is included with the TX model or available separately using part #70-335-01. Refer to the FOXBOX DVI Plus
User Guide for detailed information about the using the Simple Instruction Set (SIS
FOX Extender program to set up and operate the transmitter and receiver and to take advantage of the various adjustments
and test patterns available on the FOXBOX units.
Step 5 — Power

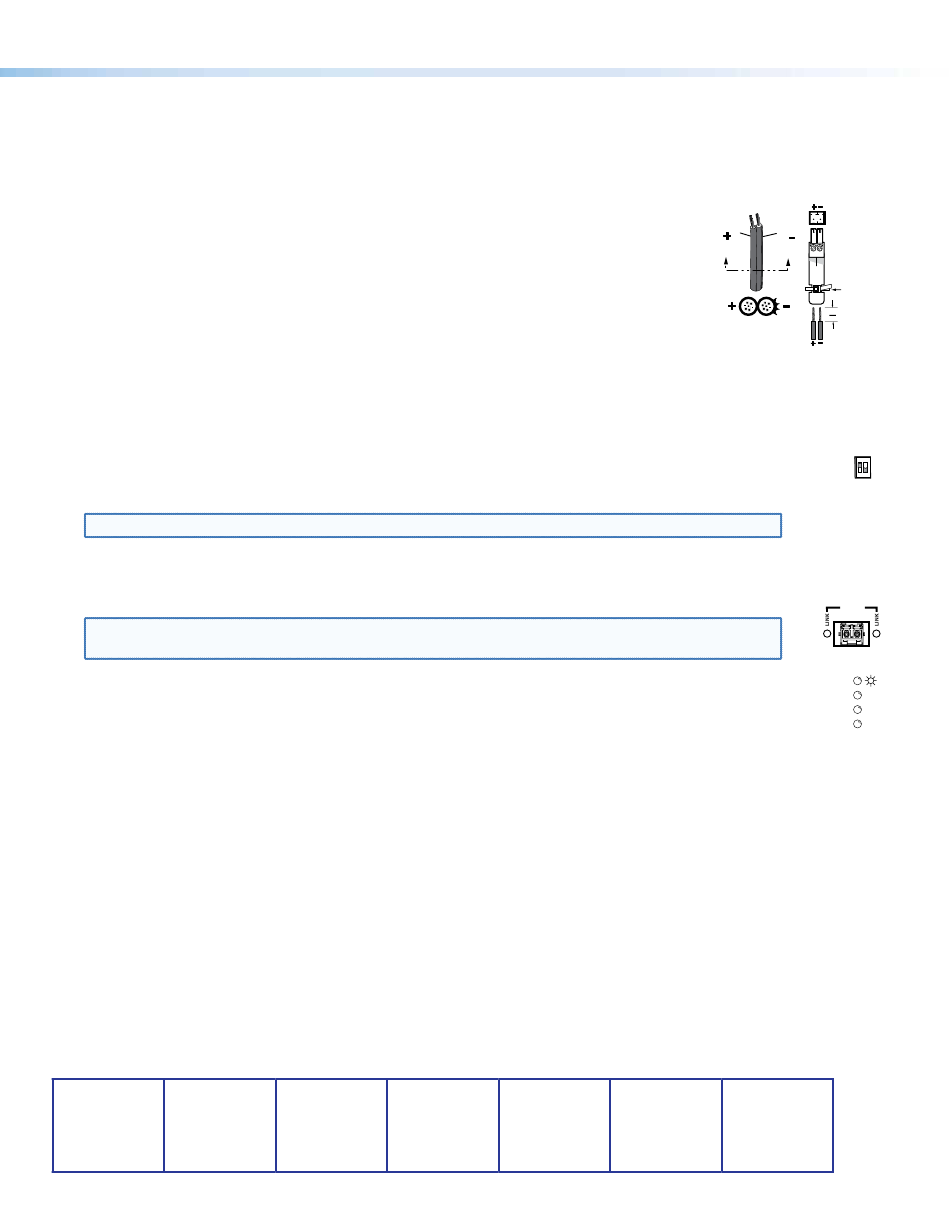

Connect using an external power supply as shown on the right.
Control and Indications
Operation
After all receivers, the transmitter, and their connected devices are powered up,
the system is fully operational. If any problems are encountered, verify that the
cables are routed and connected properly and that all display devices have identical resolutions and refresh rates. If your
problems persist, call the Extron S
Mode Switch
Mode switch (receiver) — To connect the received optical input to another receiver in a daisy chain configuration,
set DIP switch 1 to up as shown.
DIP switch 2 is not used.
NOTE: Up to 10 properly-configured receivers can be connected in a daisy chain to a single transmitter.
Indications
Tx Link and Rx Link LEDs — When lit, the link is active (light is output [Tx] or received [Rx]).
NOTE: The Link LEDs indicate light transmission only, not whether there is data encoded in the optical
link.
Power LED — This LED lights to indicate that power is applied to the unit.
Over Temp(erature) LED — This LED lights to indicate that the unit is operating at a dangerously high
temperature (approximately 167° F [75° C]) and that equipment damage is imminent.
DVI LED — This LED lights on both units when the transmitter detects a signal on its video input. This LED lights on
the receiver when the transmitter detects a DVI video signal.
Audio LED — This LED lights on both units when the transmitter detects a low level audio signal for a short period of time.
It goes dark if the audio signal drops below the minimum threshold for a short period of time.
