Quick start proceDure
Table 2. DC2268A Demo Circuit
DEMO BOARD NUMBER
DC2268A-A
DC2268A-B
DC2268A-C
DC2268A-D
DC2268A-E
DC2268A-F
DC2268A-G
DC2268A-H
DC2268A-I
µModule REGULATOR ON THE BOARD
LTM4620
LTM4620A
LTM4628
LTM4630
LTM4630-1
LTM4630A
LTM4631
LTM4650-1
LTM4650A-1
V
IN
5.5V to 15V
+ + –
–
+
–
(0A~18A)

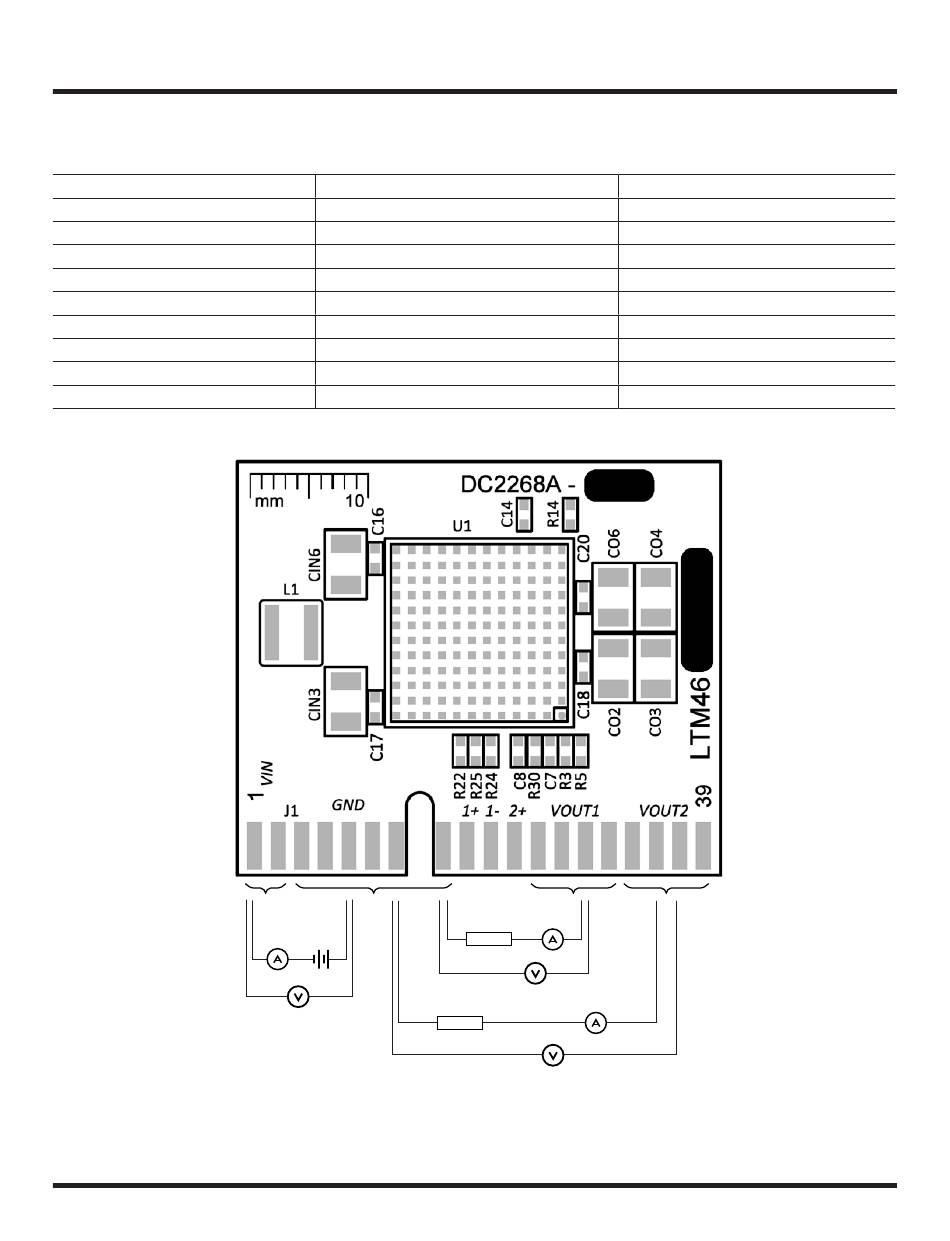

Figure 2. Test Setup of DC2268A-F
DEMO MANUAL DC2268A-F
LOAD1
+
–
(0A~18A)
–
+
V
OUT1
LOAD2
+
–
–
+
V
OUT2
OUTPUT CURRENT
13A,13A
13A,13A
8A, 8A
18A,18A
18A,18A
18A, 18A
10A, 10A
25A, 25A
25A, 25A
