INSTALLING THERMOSTAT SENSING BULB ( OPTIONAL )
1. Carefully remove bulb clips with ther-
mostat sensing bulb from the shipping
position in the back panel, see Figure 5.
2. Insert bulb clips into 2 rectangular slots
beside the shipping location (relocation
position). If clips are damaged replace with
clips located in the hardware package.
1. Remove 4 screws securing front panel.
2. Carefully slide front panel forward.
Mounting Bracket
The mounting bracket is located on back panel
of heater. It has been taped there for shipping.
Remove mounting bracket from back panel.
Methods For Attaching Mounting
Bracket To Wall
Use only the last hole on each end of mount-
ing bracket to attach bracket to wall. Attach
mounting bracket to a wall only in one of two
ways:
10
INSTALLATION
For Heaters with Blower Installed Only
REMOVING FRONT PANEL
FASTENING HEATER TO WALL
HearthSense
Thermostat
Sensing
Bulb
Relocation
Location
Thermostat Sensing Bulb Shipping Position
Thermostat Sensing Bulb
Bulb Clip

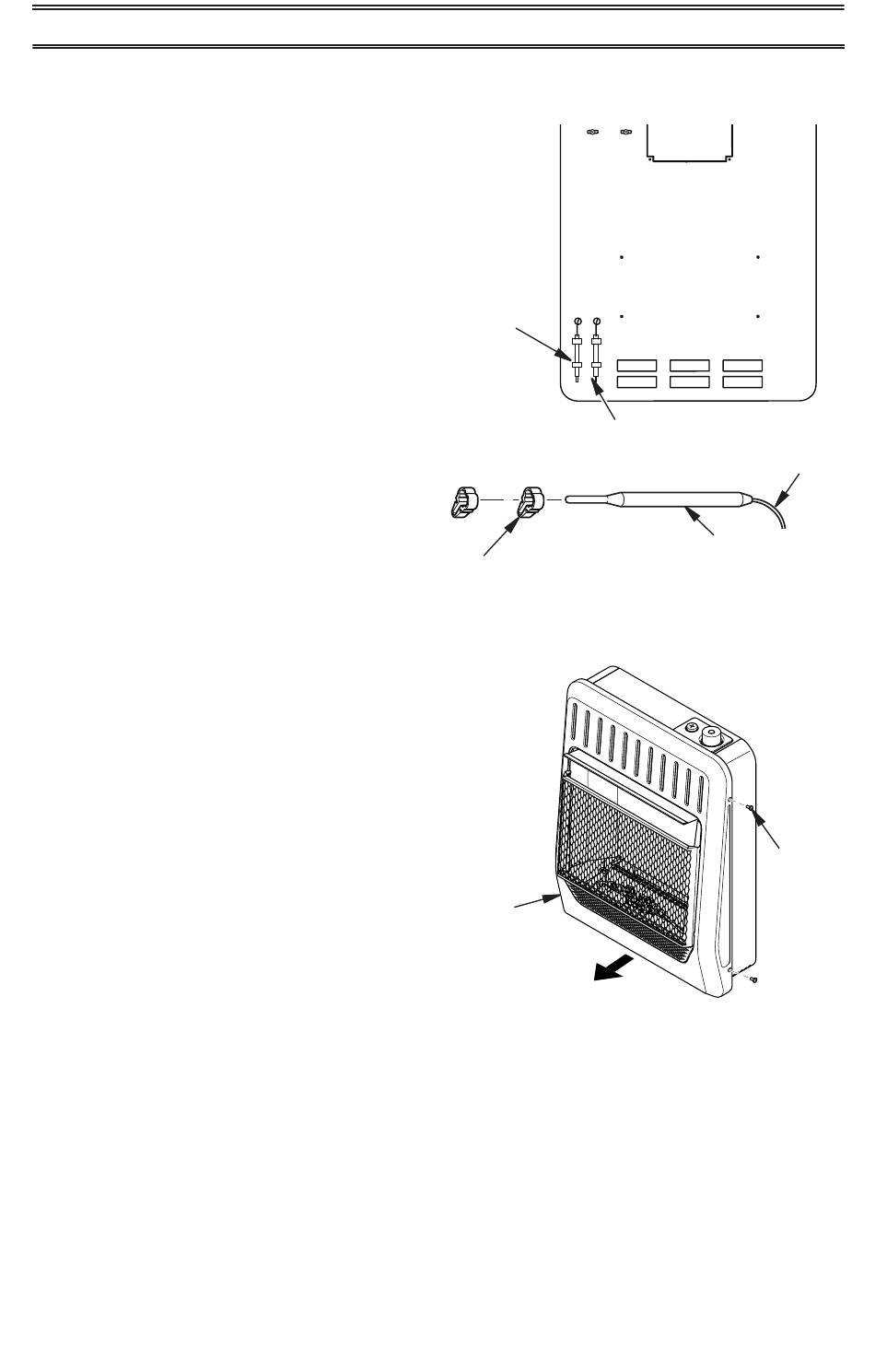

Figure 5 - Moving Thermostat Sensing
Front
Panel
Figure 6 - Removing Front Panel
1. Attaching to wall stud: This method pro-
vides the strongest hold. Insert mounting
screws through mounting bracket and into
wall studs.
2. Attaching to wall anchor: This method
allows you to attach mounting bracket to
hollow walls (wall areas between studs)
or to solid walls (concrete or masonry).
Decide which method better suits your needs.
Either method will provide a secure hold for
the mounting bracket.
Capillary
Bulb
Screw
