2. With the SVP3 at the installation position, attach a washer and screw on each side of
the rack leaving it unscrewed enough to attach the brackets.

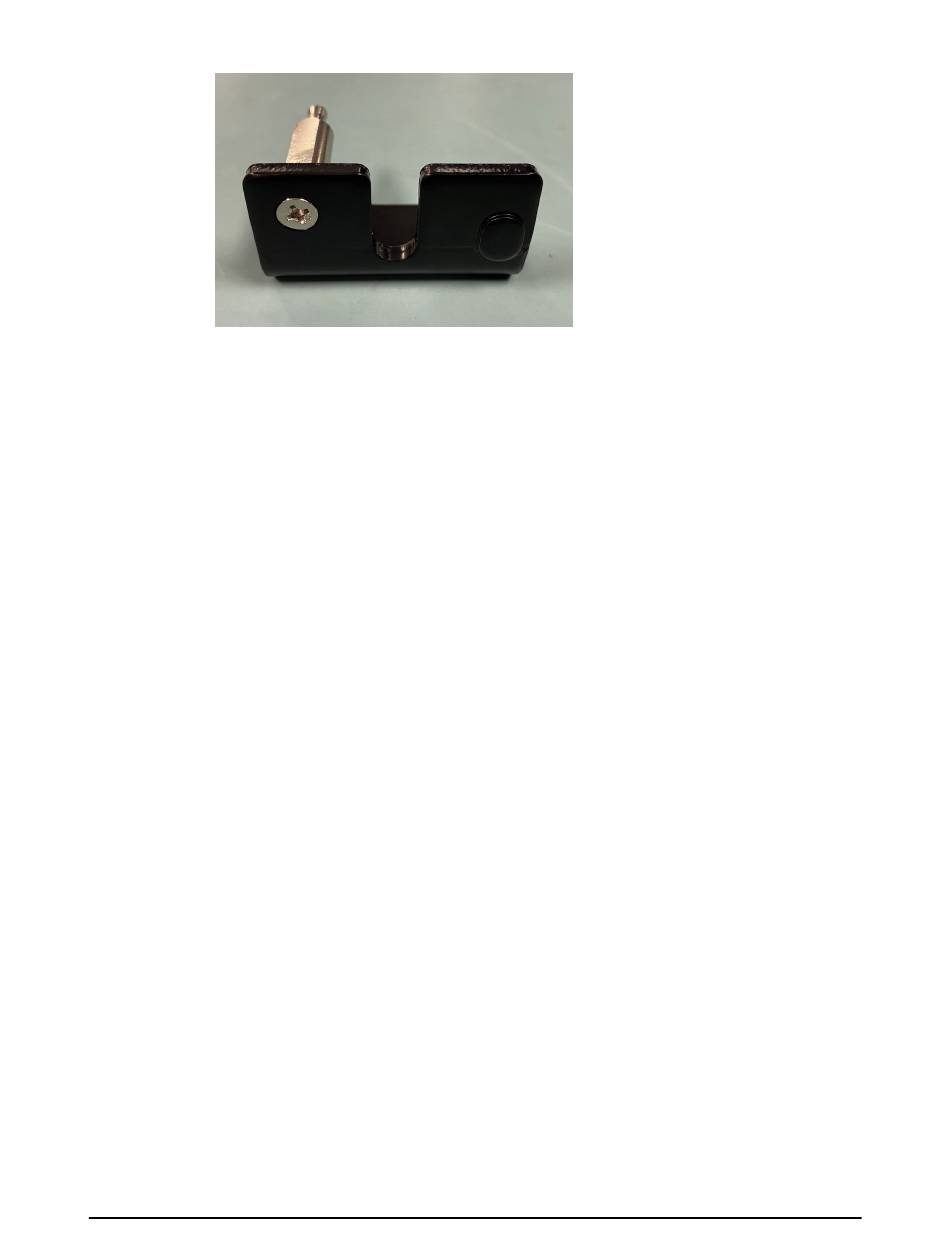

3. Slide the left and right bracket into position behind the washers.
4. Attach the extrusion behind each bracket and into each bottom slot. Ensure
brackets are aligned vertically before tightening the screws.
5. Align the front and back rails on each side of the rack and install two screws on each
side.
6. Align the left side of the bezel at approximately a 25° angle and snap the top-right
corner of the bezel into place.

Connecting to the physical SVP3

All port connections to the SVP3 are located at the rear of the SVP3.
The SVP3 has a built-in, unmanaged network switch to connect to the LAN ports of the
storage system's controller. The LAN ports of the SVP3 are compatible with all network
infrastructures.
The management console must be able to access the SVP3. Use Category 5 or higher
Ethernet cables to connect the management console to the LAN port of the SVP3.
Procedure
1. Connect the LAN1 port to a maintenance/service PC.
2. Connect the LAN4 port to a management console PC.
Typically, this is a notebook PC.
3. Connect the LAN2 port to the user LAN port on storage system controller 1.
4. Connect the LAN3 port to the user LAN port on storage system controller 2.

Default IP address settings

The SVP3 is pre-configured with a default IP for the LAN port 1 and port 4.
Connect to the SVP3 using the IP address 192.168.0.15 for the LAN port 4 (management)
or 10.0.0.100 for LAN port 1 (maintenance).
