Pyronix KX15DT1 User Manual page 2

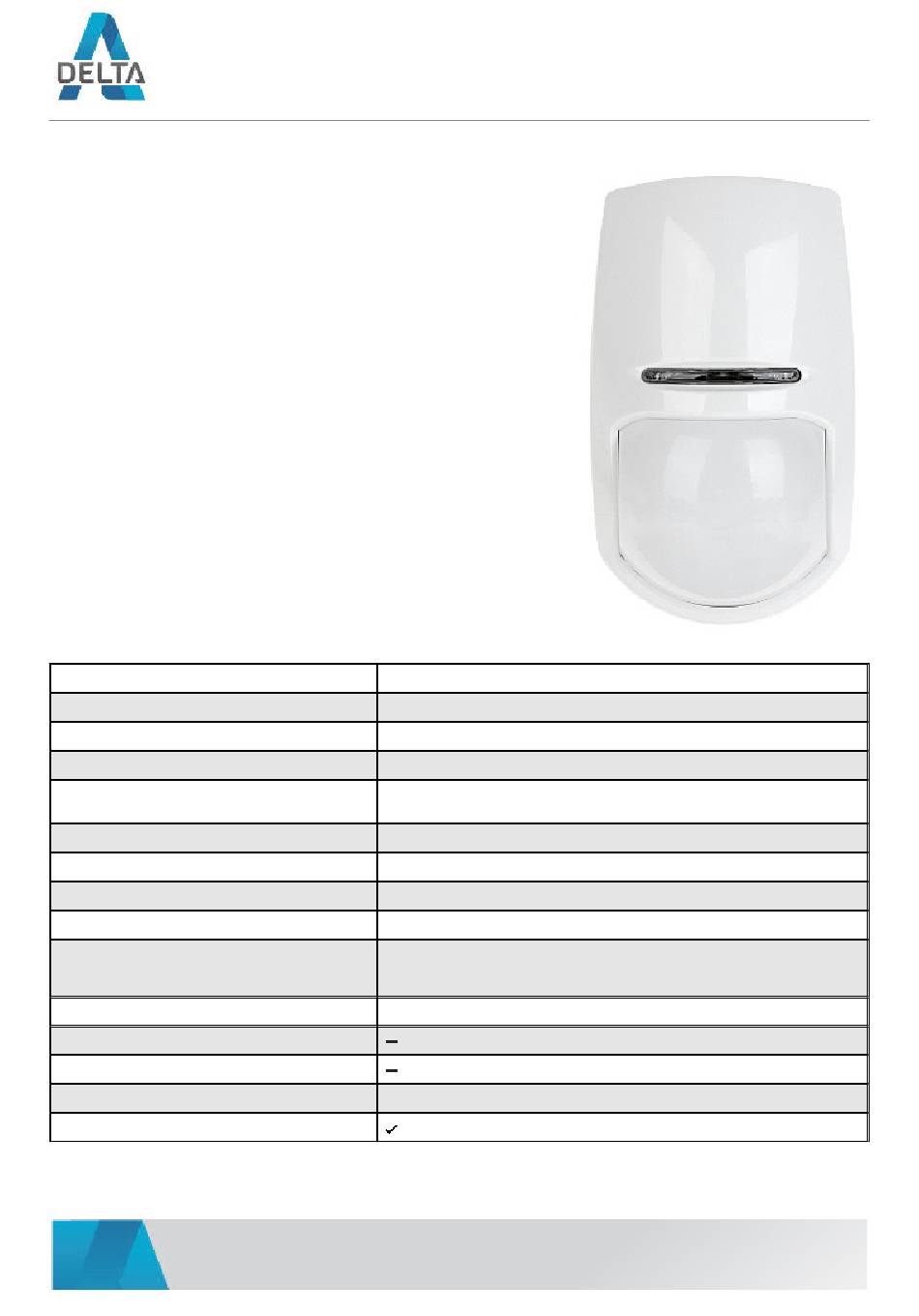

Digital dual technology detector equipped with PIR and microwave detection.
Application:
Pyroelectric sensor:
Sensor type:
Recommended installation height:
Range:
Detection angle:
Sensitivity adjustment:
Alarm output:
Tamper output:
LED indication:
Microwave frequency band:
Pet immunity:
Antimask feature:
Maximal outputs load:
Digital temperature compensation:
DELTA-OPTI Monika Matysiak; https://www.delta.poznan.pl
POL; 60-713 Poznań; Graniczna 10
e-mail: delta-opti@delta.poznan.pl; tel: +(48) 61 864 69 60
2021-07-04
User Manual
Code: KX15DT1
DUAL TECHNOLOGY DETECTOR MICROWAVE + PIR KX15DT1 PYRONIX
Indoor
Double
Passive Infra Red (PIR) and microwave (MW)
1.8 ... 2.4 m
• MW detector : 15 m,
• PIR detector : 15 m
85 °
Automatic
NO, NC, EOL/NO, EOL/NC, 2EOL/NC, 2EOL/NO
NC
• Orange - MW detector
• Blue - Alarm signaling
• Green - PIR detector
9 GHz
50 mA / 60 V DC, 42 V AC - RMS
KX15DT1 2/5
