x1
Lockbody
x1
Double Door
Plate
Failure to follow these instructions could result in damage to the product and void the factory warranty
Trusted every day
Trusted every day
Smart Cabinet Lock
Installation Instructions
x2
Standard Lock
Post
x1
Mounting Bracket
x1
Lock Post
M4x12 Screw
Guide
YRCB490-MNL-0014 Rev B
YRCB490-MNL-0014 Rev B
Glow in the Dark
Emergency Release
x1
Long Lock Post
x1
CR2 Battery
x2
x4
M3x10 Screw
x1
Mounting Template
1
4
x5
3M Mounting Tape
Part of ASSA ABLOY
Part of ASSA ABLOY
Advertisement
Related Manuals for Yale YRCB-490-BLE-WSP
Summary of Contents for Yale YRCB-490-BLE-WSP

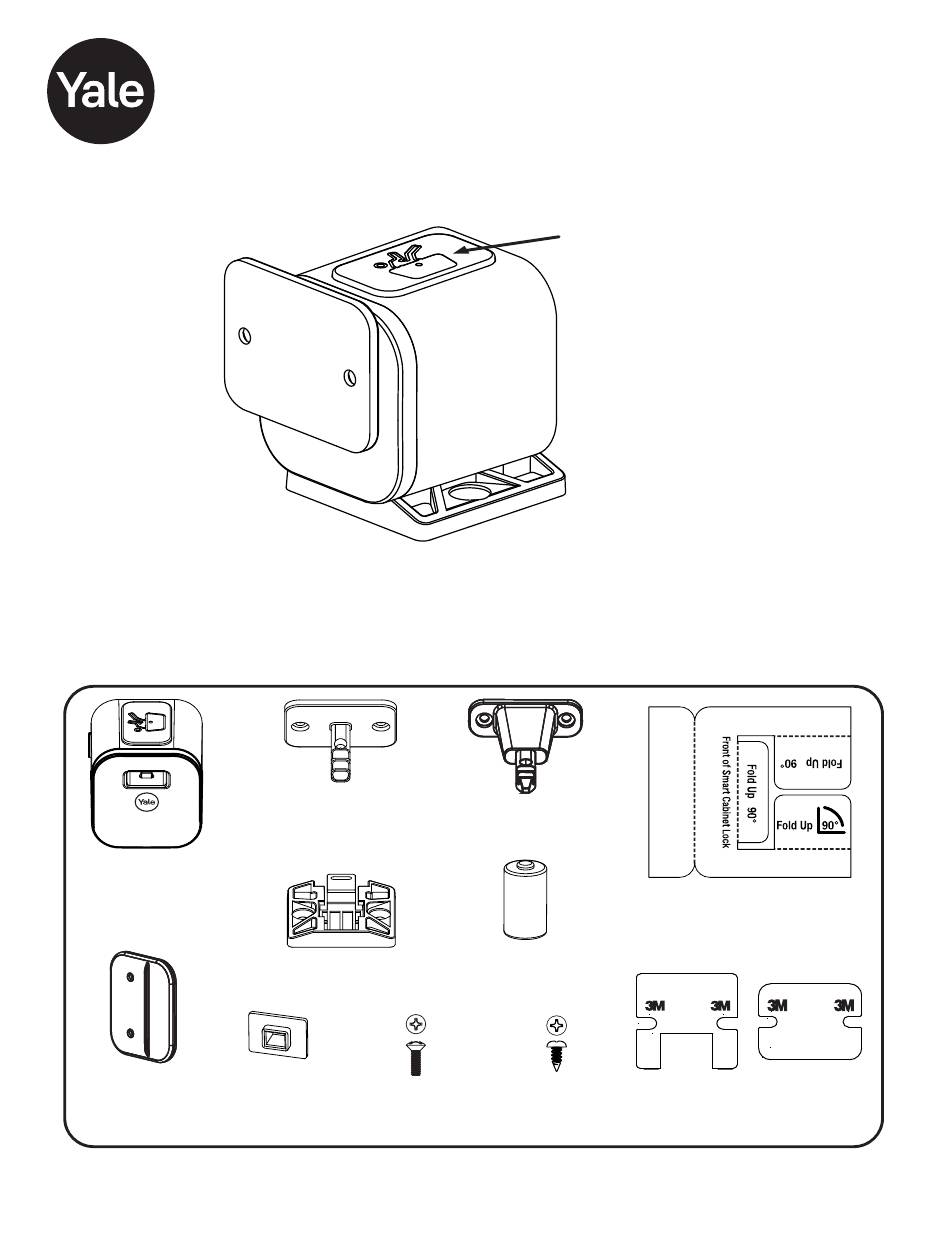

- Page 1 Smart Cabinet Lock Installation Instructions Glow in the Dark Emergency Release If you have any questions while installing, call our 24/7 tech support team! Call 1-855-213-5841 or email Support@YaleLock.com Standard Lock Long Lock Post Post Lockbody Mounting Template CR2 Battery Mounting Bracket Lock Post Double Door...
- Page 2 Download the Yale Access App IOS 11.0 + Android 6.0 + Insert CR2 Battery Into Lockbody Lock will automatically unlock if batteries die. Your app will alert you when batteries are low. Trusted every day Part of ASSA ABLOY YRCB490-MNL-0014 Rev B...
- Page 3 Attach 3M Tape to Mounting Bracket and Lock Post Clean surface before application and allow up to 24 hours for proper bondage. If cabinet has a face frame or lip (max 1” high x max 1-1/4” deep), use long lock post. Slide Mounting Bracket onto Bottom of Lockbody Trusted every day...
- Page 4 Slide Lock Post Guide onto Lock Post Attach Lock Post to Lockbody Trusted every day Part of ASSA ABLOY YRCB490-MNL-0014 Rev B...
- Page 5 Install Smart Cabinet Lock Place mounting template in desired location for installation. Mounting template cannot be used to position lock when using long lock post. Remove 3M film from mounting bracket. Trusted every day Part of ASSA ABLOY YRCB490-MNL-0014 Rev B...
- Page 6 Attach Lock Post to Door Trusted every day Part of ASSA ABLOY YRCB490-MNL-0014 Rev B...
-
Page 7: Test Operation
Test Operation Remove Lock Post Guide Trusted every day Part of ASSA ABLOY YRCB490-MNL-0014 Rev B... - Page 8 Congratulations! You've installed the Yale ® Smart Cabinet Lock. Follow the steps in your Yale Access app to complete the setup process. NOTE TO INSTALLER AND CONSUMER A second lock post is provided as a spare in the event the cabinet door must be forced open and installed lock post is broken.
-
Page 9: Screw Mounting
Screw Mounting optional Make sure screws are no longer than depth of your cabinet door. Remove lockbody from mounting bracket to access screw holes. Top Of Cabinet Installation optional Trusted every day Part of ASSA ABLOY YRCB490-MNL-0014 Rev B... - Page 10 Double Door Plate optional Use screws OR double sided tape to adhere the double door plate when installing the Smart Cabinet Lock on the adjacent door of a double door cabinet. Trusted every day Part of ASSA ABLOY YRCB490-MNL-0014 Rev B...
- Page 11 Long Lock Post optional The Long Lock Post is used on cabinets with a face frame or lip no taller than 1” and no deeper than 1-1/4”. Mounting template cannot be used to position lock when using long lock post. Trusted every day Part of ASSA ABLOY YRCB490-MNL-0014 Rev B...
- Page 12 Yale Home 24/7 Product Support : 1-855-213-5841 • www.US.YaleHome.com Yale® is a registered trademark of Yale Home. Other products' brand names may be trademarks or registered trademarks of their respective owners and are mentioned for reference purposes only. © Copyright 2020. All rights reserved. Reproduction in whole or in part without the express written permission of Yale Home is prohibited.
