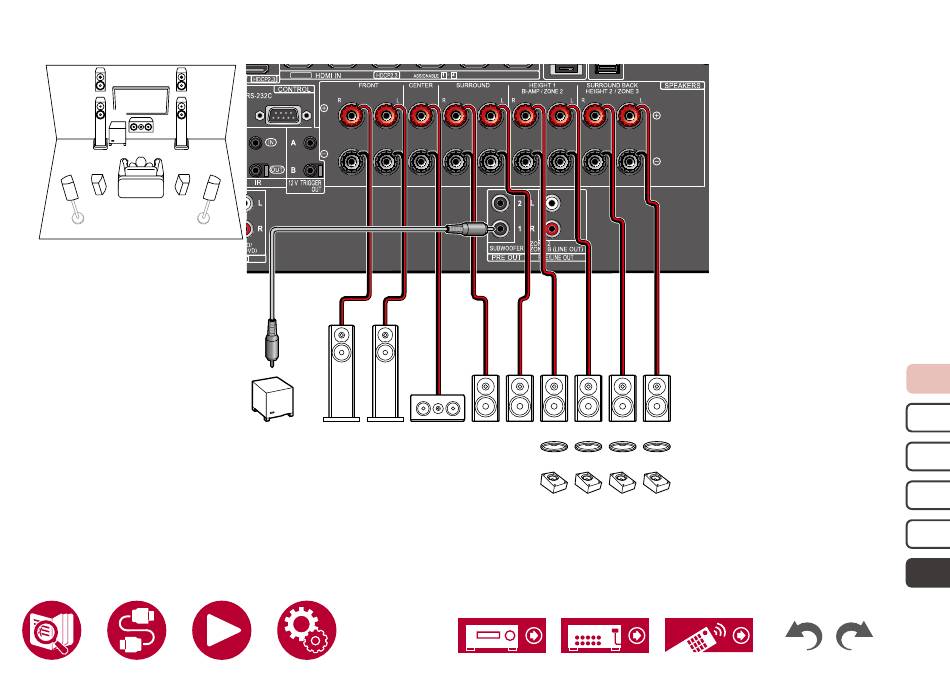

„ 5.1.4 Channel System
HL1
HR1
FL
FR
SW
C
SL
SR
HL2
HR2
*1 Connect the Height Speakers you have actually installed (HL1/HR1: Front Height Speakers, Top (front side) Speakers, Dolby Enabled Speakers (Front)).
*2 Connect the Height Speakers you have actually installed (HL2/HR2: Rear Height Speakers, Top (rear side) Speakers, Dolby Enabled Speakers (Surround)).
8K
SW
FR
FL
C
OR
OR
OR
OR
SR
SL
OR
OR
OR
OR
HR1
HL1
HR2
HL2
*1
*2
Speaker Connections
5.1ch
7.1ch
5.1.2ch
7.1.2ch
5.1.4ch
45
