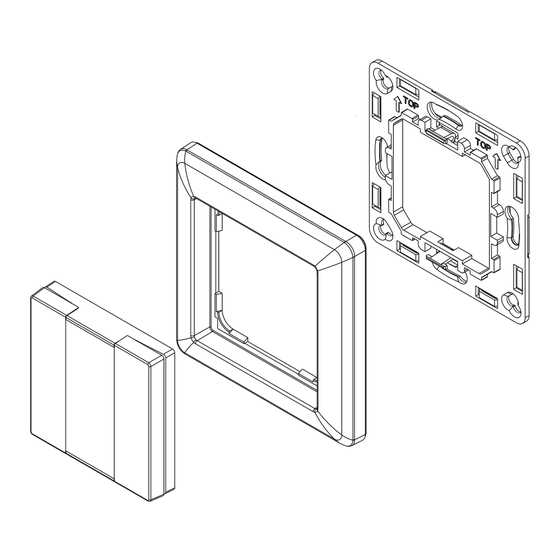

RGBW Wall Mounted ZigBee Remote Controller
Important: Read All Instructions Prior to Installation
Function introduction
Press and hold down to search and pair to ZigBee
network or factory reset the remote.
Click to turn on/off.
When controls RGB+CCT
light devices, keep short
pressing to turn on CCT
channels and get
25% ww+75% cw,
50% ww+50% cw,
75% ww+25% cw,
100% ww+0% cw,
0% ww+100% cw one by one.
Press and hold to adjust color
temperature smoothly.
When controls RGBW light
devices, keep short pressing
to turn on the 4th channel W
and get 25%, 50%, 75%,
100%, 0% intensity one by
one. Press and hold to adjust
W channel light intensity smoothly.
11 mm
Battery: CR2450
Before the first use, please open the battery
cover and remove the protective film
Press and hold down to
increase/decrease light
intensity.
Press and hold down to
select RGB color, short
press to get R, G, B one
by one
Note: This remote supports
1 group for binding max. 30
lighting devices.
Front side
71.20 mm
55.57 mm
Back side
Product Data
70100004
Protocol
Operation Voltage
Transmission Frequency
Transmission Range (free field)
Protection Type
Dimming Range
Dimensions
ZigBee Clusters Supported by This Remote Are As Follows:
Input clusters:
• Basic
• Power Configuration
Output clusters:
• Identify
• On/off
• Level control
Safety & Warnings
• This device contains a button lithium battery that shall be stored and disposed properly.
• DO NOT expose the device to moisture.
Quick Start (Simplified operation compared to standard operations in the part "Operation")
Factory reset: click both buttons
3 times to factory reset the
remote (the remote should
already be paired to a gateway).
• ZigBee RGBW remote based on ZigBee 3.0
ZigBee 3.0
• Enables to pair ZigBee lighting devices via touchlink
3VDC (CR2450)
commissioning without coordinator
• Supports find and bind mode to pair with ZigBee
2.4GHz
lighting devices
30m
• Supports 1 group for binding max. 30 lighting devices
• 2.4 GHz global operation
IP20
• Long battery life mesh technology
0.1%-100%
• Transmission range up to 30m
• Compatible with universal ZigBee Gateway products
71.2x71.2x13.6mm
• Compatible with universal RGBW, RGB+CCT ZigBee
lighting devices
• Identify
• Diagnostics
• Ota
• Color control
Network pairing mode: click both buttons 3 times to
set the remote into network pairing mode (the remote
should not belong to any gateway network).
Touchlink: Press and hold
down both for 3 seconds to
start touchlink and link light
device to the remote.
