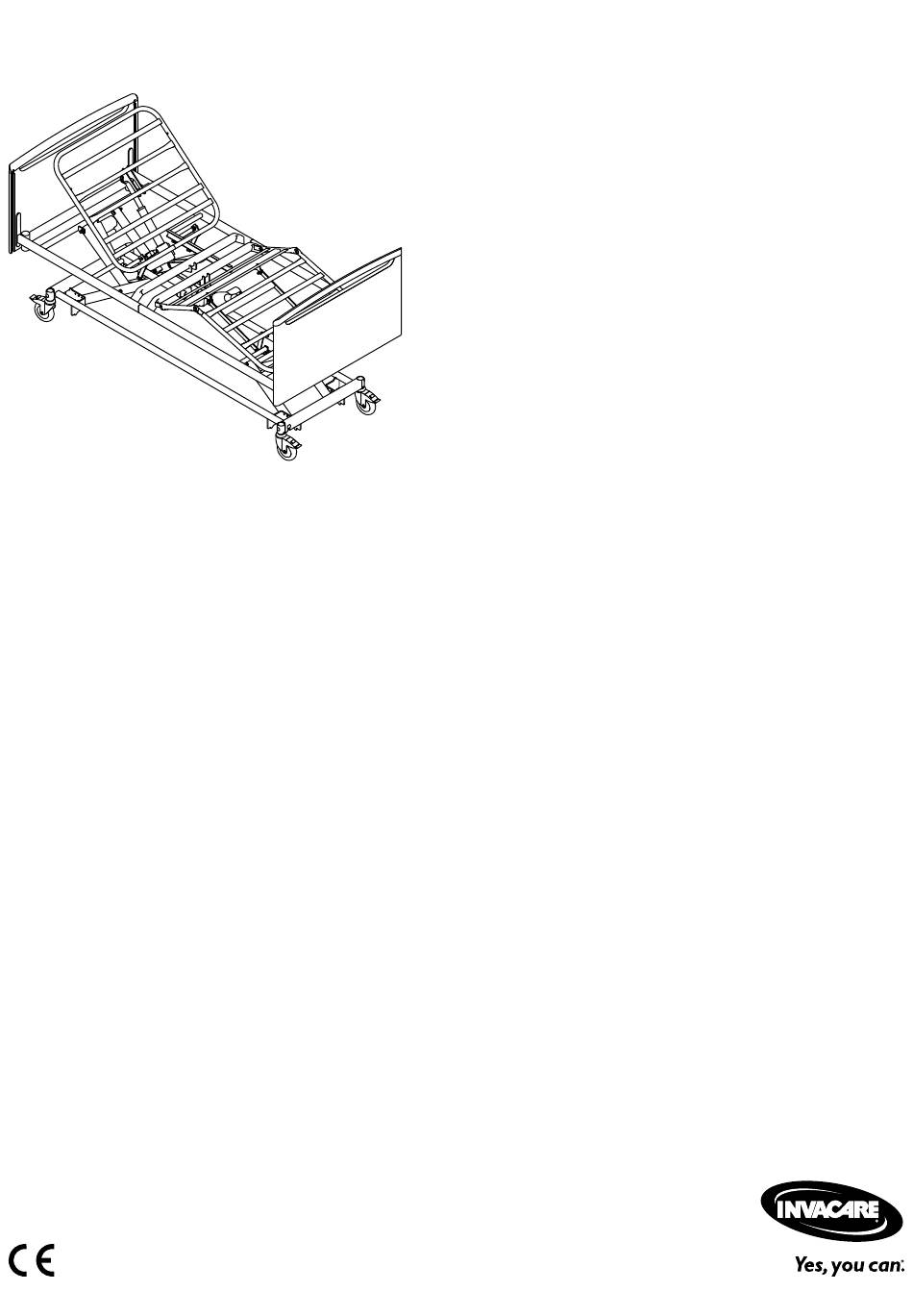

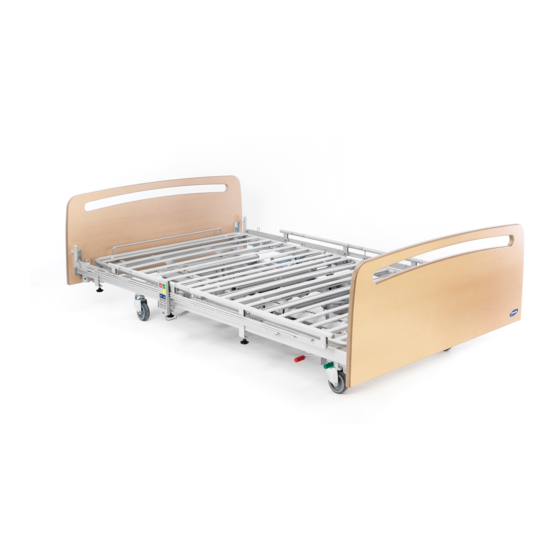

- Page 1 Invacare® NordBed™ Essential en Bed Service Manual PROVIDER: Keep this manual. The procedures in this manual MUST be performed by a qualified technician.
- Page 2 All rights reserved. Republication, duplication or modification in whole or in part is prohibited without prior written permission from Invacare. Trademarks are identified by ™ and ®. All trademarks are owned by or licensed to Invacare Corporation or its subsidiaries unless otherwise noted.
-
Page 3: Table Of Contents
Contents 1 General ......... 4 1.1 Introduction . -
Page 4: General
CAUTION Find the user manual on Invacare’s website or contact Indicates a hazardous situation that could your Invacare representative. See addresses at the end result in minor or slight injury if it is not of this document. -
Page 5: Safety
B Thigh section delivered with the accessory. C Leg section – Additional manuals can be ordered from Invacare. See addresses at the end of this D Mattress retainer document. E Mattress support extension – Due to regional differences, refer to your... -
Page 6: Setup
– Check all parts for shipping damage before use. – In case of damage, do not use the product and contact your Invacare provider for further instructions. Rotate the locking pin and allow it to engage with the 3.2 Installing bed ends bed end on both sides. -
Page 7: Bed End Brackets
Setup 3.2.3 Bed end brackets The bed can be extended by 10 cm in the foot end of the bed. Depending on the bed end to be mounted, it might be required to pre-mount or change the bed end brackets. A separate accessory kit is required to extend the bed by 20 cm in the foot end. -
Page 8: Accessories
Invacare® NordBed™ Essential 4 Accessories 3. Guide the three gliding shoes B (in the end of the side rail bars) up into the bed end guideways, until they have all passed the locking pin D. 4. Repeat steps 2 and 3 to mount the other side of the 4.1 Side Rails... -
Page 9: Installing The Torill Side Rail
Accessories 4.1.4 Installing the Torill side rail WARNING! Risk of entrapment / suffocation There’s a risk of entrapment or suffocation between side rail and bed end. – Never install the short and the long version of the side rail on the same bed. One side rail per side of bed –... - Page 10 Invacare® NordBed™ Essential Charging the batteries WARNING! Risk of explosion Old or faulty batteries may generate an explosive gas mixture during charging. – The battery box is provided with vents to ensure adequate ventilation of the box. Do not block or cover the vents, as this may result in pressure built-up and the risk of explosion.
-
Page 11: Servicing
A service contract can be made in the countries, where 5.2.1 Checklist - After relocation Invacare has its own sales company. In certain countries Invacare offers courses in service and maintenance of the Checkpoints bed. Spare parts lists and additional user manuals are available from Invacare. -
Page 12: Cleaning Intervals
Invacare® NordBed™ Essential • See attached label on each product. IMPORTANT! Wrong fluids or methods can harm or damage the product. 5.3.4 Disinfection instructions – All cleaning agents and disinfectants used Information on recommended disinfectants must be effective, compatible with one... - Page 13 Servicing • A Hand control • E Mains power cable • B Backup battery (optional) • F Height adjustment actuator, upper half • C not in use (covered with a blind plug) • G Tight section actuator • D Height adjustment actuator, lower half •...
-
Page 14: Wiring
Invacare® NordBed™ Essential 5.5 Wiring IMPORTANT! Ensure the cables are mounted and routed correctly – Make sure cables do not touch the floor and cannot block the castors. – Make sure cables cannot get squeezed by moving parts during operation. -
Page 15: Resetting The System
Servicing 5.6 Resetting the System To reset the system with the hand control: 1. Insert the magnetic key A in the slot on the side of Only for beds with Trendelenburg and / or the hand control. Anti-Trendelenburg function 2. Press and hold button B and C for 3 seconds to If a height adjustment actuator is newly connected or initiate the system reset and hold the buttons pressed reconnected to the control unit, the system needs to be... - Page 16 Invacare Sales Companies Ireland: United Kingdom: Invacare Ireland Ltd, Invacare Limited Unit 5 Seatown Business Pencoed Technology Park, Campus Pencoed Seatown Road, Swords, County Bridgend CF35 5AQ Dublin Tel: (44) (0) 1656 776 222 Tel : (353) 1 810 7084...
