Invacare Pronto M71 Owner's Operator And Maintenance Manual

Hide thumbs Also See for Pronto M71:
Table of Contents

Advertisement

Quick Links

Download this manual

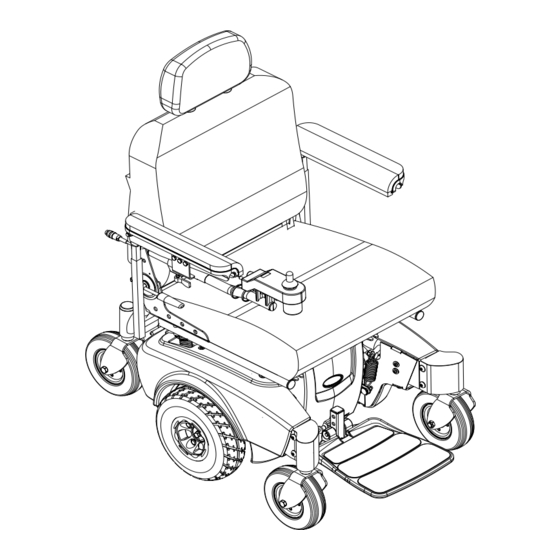

Owner's Operator and Maintenance Manual
Pronto
M71
Base
®
™
with SureStep
®
DEALER: This manual MUST be given to
the user of the wheelchair.
USER: BEFORE using this wheelchair, read
this manual and save for future reference.
For more information regarding
Invacare products, parts, and services,
please visit www.invacare.com

Advertisement

Table of Contents
loading

Related Manuals for Invacare Pronto M71

Summary of Contents for Invacare Pronto M71

  • Page 1 SureStep ® DEALER: This manual MUST be given to the user of the wheelchair. USER: BEFORE using this wheelchair, read this manual and save for future reference. For more information regarding Invacare products, parts, and services, please visit www.invacare.com...

  • Page 2: Reference Documents

    Invacare products are specifically designed and manufactured for use in conjunction with Invacare accessories. Accessories designed by other manufacturers have not been tested by Invacare and are not recommended for use with Invacare products. REFERENCE DOCUMENTS Refer to the table below for part numbers of additional documents which are referenced in this manual.

  • Page 3: Table Of Contents

    REGISTER YOUR PRODUCT ............... 6 LABEL LOCATIONS ................7 Wheelchairs With TRRO.........................8 Wheelchairs Without TRRO........................8 SPECIAL NOTES ................9 TYPICAL PRODUCT PARAMETERS ..........11 Pronto M71..............................11 SECTION 7—GENERAL GUIDELINES ..........12 Controller Settings/Repair or Service ....................12 Accessories Information .........................12 Operation Information ..........................12 Batteries..............................14 Charging Batteries ..........................14...
  • Page 4 TABLE OF CONTENTS TABLE OF CONTENTS Troubleshooting - Electrical........................27 +, SPJ+ w/PSS or SPJ+ w/ACC Joysticks................27 MPJ+, PSR+, PSF+ Joysticks or Displays ..................29 Checking Battery Charge Level......................30 SECTION 11—WHEELCHAIR OPERATION ......... 31 Operating the Wheelchair........................31 Turning the Power On/Off ........................31 Using the Joystick to Drive the Wheelchair..................31 SPJ+, MK6i SPJ+ w/PSS and MK6i SPJ+ w/ACC Joystick Switches and Indicators ....33 On/Off Button ............................33...
  • Page 5 TABLE OF CONTENTS TABLE OF CONTENTS Tilting the Seat Assembly........................45 Tilting the Seat Assembly Back ......................45 Tilting the Seat Assembly Forward....................46 SECTION 13—FOOTBOARD ASSEMBLY ..........47 Removing/Installing the Footboard Assembly..................47 Removing ...............................47 Installing..............................47 Adjusting the Footboard Assembly ......................48 Angle Adjustment ..........................48 Depth Adjustment ..........................49 SECTION 14—SHROUD/WHEELS ............

  • Page 6: Register Your Product

    Register ONLINE at warranty.invacare.com Please have your model number and purchase date available to complete your registration. Any registration information you submit will only be used by Invacare Corporation and protected as required by applicable laws and regulations. Pronto® M71™Base with SureStep®...

  • Page 7: Label Locations

    LABEL LOCATIONS LABEL LOCATIONS NOTE: One of these two labels will be on the base. Part No 1143240 Pronto® M71™Base with SureStep®...

  • Page 8: Wheelchairs With Trro

    LABEL LOCATIONS Wheelchairs With TRRO NOTE: Also on opposite side. NOTE: Also on opposite side. NOTE: Also on opposite side. Wheelchairs Without TRRO NOTE: Auto style seat positioning strap shown. This label is also on the airline style seat positioning strap. Pronto®...

  • Page 9: Special Notes

    CHANGE WITHOUT NOTICE. WHEELCHAIR USER As a manufacturer of wheelchairs, Invacare endeavors to supply a wide variety of wheelchairs to meet many needs of the end user. However, final selection of the type of wheelchair to be used by an individual rests solely with the user and his/her healthcare professional capable of making such a selection.
  • Page 10 Invacare accessories. Accessories designed by other manufacturers have not been tested by Invacare and are not recommended for use with Invacare products. The seat positioning strap is a positioning belt only. It is not designed for use as a safety device withstanding high stress loads such as auto or aircraft safety belts.

  • Page 11: Typical Product Parameters

    TYPICAL PRODUCT PARAMETERS TYPICAL PRODUCT PARAMETERS Pronto M71 18-INCH VAN 20-INCH VAN ADJUSTABLE SEAT SEAT ASBA SEAT TO FLOOR: 21-23 inches (cushion not compressed) 18-20 inches (to seat pan) OVERALL WIDTH OF BASE (W/O JOYSTICK): 24 inches OVERALL HEIGHT: 48 inches...

  • Page 12: Section 7-General Guidelines

    Contact your oxygen supplier for instruction in the use of oxygen. Invacare products are specifically designed and manufactured for use in conjunction with Invacare accessories. Accessories designed by other manufacturers have not been tested by Invacare and are not recommended for use with Invacare products.
  • Page 13 DO NOT operate on roads, streets or highways. DO NOT climb, go up or down ramps or traverse slopes greater than 9°. Invacare strongly recommends proceeding down ramps or slopes at half speed or slower and to avoid hard braking or sudden stops.

  • Page 14: Batteries

    Batteries The warranty and performance specifications contained in this manual are based on the use of deep cycle gel cell batteries. Invacare strongly recommends their use as the power source for this unit. Carefully read battery/battery charger information prior to installing, servicing or operating your wheelchair.

  • Page 15: Grounding Instructions

    Code. If you must use an extension cord, use ONLY a three-wire extension cord having the same or higher electrical rating as the device being connected. In addition, Invacare has placed RED/ORANGE warning tags on some equipment. DO NOT remove these tags.

  • Page 16: Weight Training

    Invacare DOES NOT recommend the use of its wheelchairs as a weight training apparatus. Invacare wheelchairs have NOT been designed or tested as a seat for any kind of weight training. If occupant uses said wheelchair as a weight training apparatus, Invacare shall NOT be liable for bodily injury and the warranty is void.

  • Page 17: Section 8-Emi Information

    SECTION 8—EMI INFORMATION SECTION 8—EMI INFORMATION WARNING CAUTION: IT IS VERY IMPORTANT THAT YOU READ THIS INFORMATION REGARDING THE POSSIBLE EFFECTS OF ELECTROMAGNETIC INTERFERENCE ON YOUR POWERED WHEELCHAIR. Electromagnetic Interference (EMI) From Radio Wave Sources Powered wheelchairs and motorized scooters (in this text, both will be referred to as powered wheelchairs) may be susceptible to electromagnetic interference (EMI), which is interfering electromagnetic energy (EM) emitted from sources such as radio stations, TV stations, amateur radio (HAM) transmitters, two way radios, and...
  • Page 18 2) This device has been tested to a radiated immunity level of 20 volts per meter. 3) The immunity level of the product is unknown. Modification of any kind to the electronics of this wheelchair as manufactured by Invacare may adversely affect the EMI immunity levels. Pronto® M71™Base with SureStep® Part No 1143240...

  • Page 19: Section 9-Safety/Handling Of Wheelchairs

    Individual wheelchair users often develop skills to deal with daily living activities that may differ from those described in this manual. Invacare recognizes and encourages each individual to try what works best for him/her in overcoming architectural obstacles that they may encounter, however ALL WARNINGS and CAUTIONS given in this manual MUST be followed.
  • Page 20 The Pronto M71 with SureStep has a weight limitation of 300 lbs. M71 without powered seating - For users over 250 lbs, the seat MUST be mounted in the furthest rearward position and the front seat posts MUST be in the 1-inch raised position or lower.

  • Page 21: Coping With Everyday Obstacles

    SECTION 9—SAFETY/HANDLING OF WHEELCHAIRS Coping with Everyday Obstacles NOTE: For this procedure, refer to 2-inch Bump FIGURE 9.1. or Threshold Coping with the irritation of everyday obstacles can be alleviated somewhat by learning how to manage your wheelchair. FIGURE 9.1 Coping with Everyday Keep in mind your center of gravity to Obstacles maintain stability and balance.

  • Page 22: Lifting/Stairways

    MUST be removed and transported independently of the power wheelchair. Extreme caution is advised when it is necessary to move an unoccupied power wheelchair up or down the stairs. Invacare recommends using two assistants and making thorough preparations. Use ONLY secure, nondetachable parts for hand-hold supports.

  • Page 23: Transferring To And From Other Seats

    SECTION 9—SAFETY/HANDLING OF WHEELCHAIRS WARNING: ESCALATORS DO NOT use an escalator to move a wheelchair between floors. Serious bodily injury may occur. Transferring To and From Other Seats WARNING ALWAYS turn the wheelchair power OFF and engage the Motor Release Levers to prevent the wheels from moving BEFORE attempting to transfer in or out of the wheelchair.

  • Page 24: Reaching, Leaning And Bending - Forward

    SECTION 9—SAFETY/HANDLING OF WHEELCHAIRS Reaching, Leaning and Bending - Forward WARNING DO NOT attempt to reach objects if you have to move forward in the seat or pick them up from the floor by reaching down between your knees. NOTE: For this procedure, refer to FIGURE 9.4. Position the front AND rear casters so that they are extended as far forward as possible and engage Motor Release Levers.

  • Page 25: Section 10-Safety Inspection/Troubleshooting

    SECTION 10—SAFETY INSPECTION/TROUBLESHOOTING SECTION 10—SAFETY INSPECTION/ TROUBLESHOOTING NOTE: Every six months or as necessary take your wheelchair to a qualified technician for a thorough inspection and servicing. Regular cleaning will reveal loose or worn parts and enhance the smooth operation of your wheelchair. To operate properly and safely, your wheelchair must be cared for just like any other vehicle.

  • Page 26: Inspect/Adjust Weekly

    SECTION 10—SAFETY INSPECTION/TROUBLESHOOTING Inspect/Adjust Weekly Inspect tires for flat spots and wear. Inspect/Adjust Monthly Ensure arm pivot points are free of wear and looseness. Ensure wheel mounting bolts are secure on drive wheels. Ensure no excessive side movement or binding when drive wheels are lifted and spun when disengaged (free-wheeling).

  • Page 27: Troubleshooting - Mechanical

    SECTION 10—SAFETY INSPECTION/TROUBLESHOOTING Troubleshooting - Mechanical SOLUTIONS If pneumatic, check tires for correct and equal pressure. Check for loose stem nuts/bolts. Check that casters contact ground at the same time. Troubleshooting - Electrical NOTE: For additional troubleshooting information and explanation of error codes, refer to the individual Electronics Manual supplied with each wheelchair +, SPJ+ w/PSS or SPJ+ w/ACC Joysticks The joystick information gauge and the service indicator give indications of the type of...
  • Page 28 Contact Invacare/Dealer for service. Controller Fault Contact Invacare/Dealer for service. Communications Fault Contact Invacare/Dealer for service. General Fault Contact Invacare/Dealer for service. Incompatible or incorrect Wrong type of remote connected. Contact Invacare/Dealer Remote for service. Pronto® M71™Base with SureStep® Part No 1143240...

  • Page 29: Mpj+, Psr+, Psf+ Joysticks Or Displays

    (Error code W05). Batteries draw excessive current Battery failure. Have batteries checked for shorted cell. when charging. Replace if necessary. Electrical malfunction. Contact Dealer/Invacare for service. Part No 1143240 Pronto® M71™Base with SureStep®...

  • Page 30: Checking Battery Charge Level

    Battery failure. Check batteries for shorted cell. level is low - immediately after Replace if necessary. recharge. Malfunctioning battery charger. Contact Dealer/Invacare for Service. Electrical malfunction. Contact Dealer/Invacare for Service. Battery indicator flashes the charge Batteries not charged. Have charger checked.

  • Page 31: Section 11-Wheelchair Operation

    SECTION 11—WHEELCHAIR OPERATION SECTION 11—WHEELCHAIR OPERATION Operating the Wheelchair Turning the Power On/Off NOTE: For this procedure, refer to FIGURE 11.1. 1. To turn the power On, perform one of the following steps: JOYSTICK ACTION MPJ™+ Move the On/Off switch Forward to the On position. SPJ+ Press the On/Off button.
  • Page 32 SECTION 11—WHEELCHAIR OPERATION When first learning to drive, select a slow speed and try to drive the wheelchair as slowly as possible by pushing the joystick slightly forward. This exercise will help you learn to utilize the full potential of the proportional control and allow you to start and stop smoothly.

  • Page 33: Spj+, Mk6I Spj+ W/Pss And Mk6I Spj+ W/Acc Joystick Switches And Indicators

    SECTION 11—WHEELCHAIR OPERATION SPJ+, MK6i SPJ+ w/PSS and MK6i SPJ+ w/ACC Joystick Switches and Indicators NOTE: For the following information, refer to FIGURE 11.3. Joystick Information Gauge Display On/Off Mode Button* Button Decrease Speedometer Speed Button (Tortoise) Increase Speed Button Additional (Hare) Input for...

  • Page 34: Speed Control Buttons

    SECTION 11—WHEELCHAIR OPERATION Speed Control Buttons The speed control buttons (tortoise button ( ) and hare button ( ) are used to set and adjust the maximum speed. 1. To adjust the speed, perform one of the following: • Adjust Speed in 20% Increments (5 Speed Mode) - Press the tortoise button ( or hare button ( ) to decrease/increase the speed in 20% increments.

  • Page 35: Information Gauge Display

    SECTION 11—WHEELCHAIR OPERATION Information Gauge Display The information gauge display is located on the front of the joystick housing and provides the following information to the user on the status of the wheelchair: 1. Power is On. 2. True state-of-battery-charge, including notification of when the battery requires charging: A.

  • Page 36: Speed Control

    SECTION 11—WHEELCHAIR OPERATION Memory Card Slot Charger/Programming Input (Front of Joystick) LCD Display Mode Switch Speed Control Knob Drive Select Toggle Switch Programmable Joystick Mono Port 1/2 or Remote External Mode On/Off Switch Input To Controller FIGURE 11.4 MPJ+ Joystick Switches and Indicators Speed Control The speed control knob is located on the side of the joystick housing.
  • Page 37 SECTION 11—WHEELCHAIR OPERATION Splash Screen NOTE: For this procedure, refer to FIGURE 11.5. This screen is displayed at startup of the joystick for about 2 seconds. This screen displays the software version and date information. After this screen, the joystick displays the Main Screen.
  • Page 38 SECTION 11—WHEELCHAIR OPERATION ITEM DESCRIPTION STATUS INDICATOR The status indicator will show a “Warning” (exclamation point inside a triangle) indicator when the chair has a condition that requires attention. The status indicator will show a “STOP” sign when a serious condition exists. The chair will not be allowed to operate.

  • Page 39: Programmable Mono Port 1/2 Or External Mode Switch

    SECTION 11—WHEELCHAIR OPERATION Connected Devices Screen NOTE: For this procedure, refer to FIGURE 11.8. This screen is displayed if the Mode Select switch is held active for about 10 seconds. This screen shows an icon that represents any additional devices that are connected to the chair.

  • Page 40: Remote On/Off Switch

    SECTION 11—WHEELCHAIR OPERATION Remote On/Off Switch The remote On/Off switch input is located at the rear of the joystick on the right side and allows the power switch to be operated by an ability switch (normally open momentary switch with mono plug). To use the remote On/Off feature, the Drive Select/On/Off switch must be in the On position.

  • Page 41: Adjustable Asba Seats

    SECTION 11—WHEELCHAIR OPERATION 3. Remove the three hex mounting screws, bushings and locknuts that secure the mounting bracket to the three mounting holes on the armrest plate. NOTE: The mounting bracket is mounted to the inside of the armrest plate. 4.

  • Page 42: Disconnecting/Connecting The Joysticks

    SECTION 11—WHEELCHAIR OPERATION 6. Slide the joystick mounting tube through the mounting bracket to the desired position. 7. Turn the adjustment lock lever to secure the joystick mounting tube into the mounting bracket. Disconnecting/Connecting the Joysticks NOTE: For this procedure, refer to FIGURE 11.11. NOTE: The joystick connector is located at the rear of the seat frame.
  • Page 43 SECTION 11—WHEELCHAIR OPERATION Connecting 1. Ensure the latch is pulled away from the joystick connector. 2. Connect the joystick connector to the other connectors. 3. Push the latch in to secure the joystick connector to the other connectors. Joystick Connector Latch Other Connectors FIGURE 11.12 Disconnecting/Connecting the Joysticks - MPJ+ Joysticks...

  • Page 44: Section 12-Seat

    SECTION 12—SEAT SECTION 12—SEAT WARNING After ANY adjustments, repair or service and before use, make sure that all attaching hardware is tightened securely - otherwise injury or damage may result. Before performing any maintenance, adjustment or service, verify that On/Off switch on the joystick is in the Off position.

  • Page 45: Tilting The Seat Assembly

    SECTION 12—SEAT Rear Pivot Brackets Seat Clevis Pins Latch Bar is located under the front of the seat FIGURE 12.1 Removing/Installing the Seat Assembly Tilting the Seat Assembly WARNING Make sure power to the wheelchair is Off before performing this procedure. Never leave the seat assembly in the up/open position unless necessary to perform a a procedure on the wheelchair - otherwise injury or damage may result.

  • Page 46: Tilting The Seat Assembly Forward

    SECTION 12—SEAT 5. Remove front rigging. Refer to Removing/Installing the Footboard Assembly on page 47. 6. Remove the two screws and washers securing the Formula PTO Plus frame to the front seat posts. 7. Firmly grasp the front edge of the seat assembly, slowly tilt the seat assembly back into the up/open position.

  • Page 47: Section 13-Footboard Assembly

    SECTION 13—FOOTBOARD ASSEMBLY SECTION 13—FOOTBOARD ASSEMBLY WARNING After ANY adjustments, repair or service and before use, make sure that all attaching hardware is tightened securely - otherwise injury or damage may result. Before performing any maintenance, adjustment or service, verify that On/Off switch on the joystick is in the Off position.

  • Page 48: Adjusting The Footboard Assembly

    SECTION 13—FOOTBOARD ASSEMBLY Bottom View Battery Frame Quick Release Footboard Assembly Mounting Hole Quick Release Detent Balls Detent Balls Outer Edge of Tube FIGURE 13.1 Removing/Installing the Footboard Assembly Adjusting the Footboard Assembly Angle Adjustment NOTE: For this procedure, refer to FIGURE 13.2. 1.

  • Page 49: Depth Adjustment

    SECTION 13—FOOTBOARD ASSEMBLY Depth Adjustment NOTE: For this procedure, refer to FIGURE 13.3. 1. Remove the quick release pin that secures the footboard assembly to the wheelchair frame. WARNING Make sure the detent balls of the quick release pin are fully released and protruding past the outer edge of the tube before operating the wheelchair.

  • Page 50: Section 14-Shroud/Wheels

    SECTION 14—SHROUD/WHEELS SECTION 14—SHROUD/WHEELS WARNING After ANY adjustments, repair or service and before use, make sure that all attaching hardware is tightened securely - otherwise injury or damage may result. Before performing any maintenance, adjustment or service, verify that On/Off switch on the joystick is in the Off position.

  • Page 51: Installing

    SECTION 14—SHROUD/WHEELS Installing CAUTION To prevent cracking the plastic shroud material, DO NOT overtighten the mount- ing screws. 1. Perform one of the following: • Right and Left Side Shroud - Secure each side shroud to the base frame with the five mounting screws.

  • Page 52: Engaging/Disengaging Motor Release Lever

    SECTION 14—SHROUD/WHEELS Engaging/Disengaging Motor Release Lever NOTE: For this procedure, refer to FIGURE 14.2. WARNING DO NOT engage or disengage the motor release lever until the ON/OFF switch on the joystick is in the OFF position. CAUTION Ensure both motor release levers are fully engaged BEFORE driving the wheelchair. NOTE: The motor lock disengagement/engagement allows free-wheeling OR joystick controlled operation.

  • Page 53: Replacing The Front/Rear Caster Assemblies

    SECTION 14—SHROUD/WHEELS Replacing the Front/Rear Caster Assemblies NOTE: For this procedure, refer to FIGURE 14.3. NOTE: Front and rear caster assemblies are replaced in the same manner. NOTE: When replacing the front/rear caster assemblies, it is necessary to brace the caster assemblies to prevent the wheel from spinning.

  • Page 54: Section 15-Batteries

    Make sure power to the wheelchair is Off before performing this section. The use of rubber gloves is recommended when working with batteries. Invacare strongly recommends that battery installation and battery replacement ALWAYS be done by a qualified technician. U1 batteries weight 18 pounds each. Use proper lifting techniques (lift with your legs) to avoid injury.

  • Page 55: Removing/Installing Batteries From/Into Battery Tray

    SECTION 15—BATTERIES WARNING Batteries with terminal configuration as shown below MUST be used. Batteries that have the reverse terminal configuration MUST NOT be used - otherwise injury and damage may occur. Terminals MUST have a cross hole in them as shown below Use This Configuration Do Not Use NEGATIVE (-)

  • Page 56: Removing

    SECTION 15—BATTERIES NOTE: If there is battery acid in the bottom of the battery tray or on the sides of the batteries, apply baking soda to these areas to neutralize the battery acid. Before reinstalling the existing or new batteries, clean the baking soda from the battery tray or batteries being sure to avoid contact with skin and eyes.

  • Page 57: Connecting/Disconnecting Battery Cables

    SECTION 15—BATTERIES GREY Connector Rear Battery Front Battery BLACK Connector on M71 Standard or RED Battery Handles Connector on M71 Formula PTO Plus Plug into Controller Battery Tray Rear of Wheelchair Front of Wheelchair NOTE: Seat not shown for clarity. FIGURE 15.2 Removing/Installing Batteries from/into Battery Tray Connecting/Disconnecting Battery Cables NOTE: For this procedure, refer to FIGURE 15.6.
  • Page 58 SECTION 15—BATTERIES CAUTION When connecting the battery cables to the batteries, the battery cables MUST be connected to the battery terminals as shown in FIGURE 15.3, DETAIL “B”, (depending on battery type), otherwise damage to the battery cable may result when installing battery terminal caps.

  • Page 59: Disconnecting Battery Cables

    SECTION 15—BATTERIES DETAIL “A” NOTE: Handles on batteries Battery Lifting Strap removed for clarity. Wide Part of Handle GREY Connector Mounting Screw Strap RED Battery NEGATIVE (-) Cable Battery Terminal Locknut Mounting Screw with Fuse BLACK Battery Cable POSITIVE (+) Battery U1 Battery Terminal...

  • Page 60: When To Charge Batteries

    SECTION 15—BATTERIES 1. Perform one of the following: • Wheelchairs without Formula PTO Plus - Remove the seat. Refer to Removing/ Installing the Seat Assembly on page 49. • Wheelchairs with Formula PTO Plus - Tilt the seat back. Refer to Tilting the Seat Assembly on page 55.

  • Page 61: Mpj+ Joystick

    SECTION 15—BATTERIES MPJ+ Joystick NOTE: For this procedure, refer to FIGURE 15.5. The far right side of the display screen is the Battery Gauge Display (BGD). It provides information on the remaining charge in the batteries. At full charge, solid blocks fill in all ten Display segments between E (Empty) and F (Full).

  • Page 62: Battery Charger Operation

    2. The On/Off LED indicator illuminates solid Red indicating that the charger is ON. 3. If the On/Off LED indicator is “blinking” Red, this is abnormal. Unplug AC power cord from the on-board battery charger and wall outlet. Contact Invacare at the number listed on the back page of this manual.
  • Page 63 SECTION 15—BATTERIES 6. When the CHARGE LED indicator light is solid Green, the batteries are fully charged (as their condition will allow). At this point, the charger automatically stops charging. 7. When charging is complete, unplug the male connector of the AC power cord from the wall outlet and then unplug the female connector of the AC power cord from the AC receptacle on the charger.

  • Page 64: Charging Using An Independent Charger Plugged Into The Joystick

    SAME time. Doing so will reduce the life of the batteries. CAUTION Only use a charger approved by Invacare when charging through the joystick on this wheelchair model. DO NOT use an independent charger with an output rating of over 8A (Amps).

  • Page 65: Section 16-Transport

    SECTION 16—TRANSPORT SECTION 16—TRANSPORT WARNING Formula PTO Plus Systems ONLY - DO NOT attempt to disassemble wheelchair or remove the seat - otherwise injury or damage may result. After ANY adjustments, repair or service and BEFORE use, make sure that all attaching hardware is tightened securely - otherwise injury or damage may result.

  • Page 66: Disassembly

    SECTION 16—TRANSPORT Disassembly NOTE: For this procedure, refer to FIGURE 16.2. WARNING The joystick MUST turned OFF and disconnected before attempting to remove the seat - otherwise personal injury, damage to the wheelchair and/or surrounding property may result. See Note below. The weight of the van seat is 47 lbs and weight of each of the side frames is 39 lbs.
  • Page 67 SECTION 16—TRANSPORT Removing the Side Frame Assemblies 9. Using your left hand, grip the left side frame at the large cutout in the side shroud. 10. Using your right hand, lift up on the frame release lever at the front of the battery section on the left side (Left Side Frame Label #1).
  • Page 68 SECTION 16—TRANSPORT Left Side Frame Left Side Frame STEP 8 Assembly Label #2 Hand Hold Area Side Frame at Large Cutout in NOTE: View is from inside of Shroud LEFT side frame assembly. Left Side Upper Rear Clevis Pin (STEP 11) Frame Label #1 STEP 4...

  • Page 69: Assembly

    SECTION 16—TRANSPORT Assembly CAUTION When reassembling the base frame be sure that the motor, battery and joystick leads are positioned away from any of the three side frame attachment points (FIGURE 16.3) and the four seat frame attachment points (FIGURE 16.3) - otherwise pinched cables could result.
  • Page 70 SECTION 16—TRANSPORT Left Side Frame Left Side Frame Assembly Label #2 NOTE: View is from inside of LEFT side frame assembly. Left Side Frame Upper Rear Clevis Pin (STEP 9) Label #1 Left Side Frame Label #3 Battery Upper Front Clevis Tray Label Pin (STEP 10) Lower Clevis...

  • Page 71: Section 17-Transport Ready Package

    NOTE: The information in this section is for wheelchairs ordered with the transport ready package ONLY. WARNING Contact Invacare Corporation (800-333-6900) with any questions about using this wheelchair for seating in a motor vehicle. When feasible, wheelchair occupants should transfer into the vehicle seat and use the OEM (Original Equipment Manufacturer) vehicle-installed restraint system.

  • Page 72: About Transport Ready Packages

    It is Invacare’s position that users of wheelchairs should be transferred into appropriate seating in vehicles for transportation and use be made of the restraints made available by the auto industry.

  • Page 73: Securing The Wheelchair To The Vehicle

    SECTION 17—TRANSPORT READY PACKAGE Securing the Wheelchair to the Vehicle Positioning the Wheelchair in the Vehicle WARNING This wheelchair must be in a forward facing position during travel in a motor vehicle. The recommended clear zones for wheelchair seated occupants restrained by BOTH pelvic and upper-torso belt(s) and ONLY by a pelvic belt are shown in the diagrams and described below.

  • Page 74: Securement Points

    SECTION 17—TRANSPORT READY PACKAGE Securement Points Tie-Down Bracket (hidden from view) Tie-Down Brackets Tie-Down Bracket FIGURE 17.1 Securement Points Securing the Wheelchair This wheelchair is to be used only with Wheelchair Tie-down and Occupant Restraint Systems (WTORS) that have been installed in accordance with the manufacturer's instructions and SAE J2249.

  • Page 75: Securing The Occupant

    Securing the Occupant Wheelchair-Anchored Belts WARNING The pelvic belt that is provided by Invacare has been tested for use in a motor vehi- cle on this wheelchair ONLY. DO NOT replace the pelvic belt with a different style pelvic belt.

  • Page 76: Vehicle-Anchored Belts

    SECTION 17—TRANSPORT READY PACKAGE Vehicle-Anchored Belts NOTE: For this procedure, refer to FIGURE 17.3. This wheelchair has an overall rating of “A” with regard to accommodating the use and fit of vehicle-anchored belts. This rating is scored as follows: RATING DESCRIPTION Excellent Good...

  • Page 77: Positioning Belts

    SECTION 17—TRANSPORT READY PACKAGE Positioning Belts WARNING The angle of the pelvic belt should be Side View within the preferred zone of 45 to 75 degrees to the horizontal OR within the optional zone of 30 to 45 degrees to the Preferred Zone horizontal.
  • Page 78 SECTION 17—TRANSPORT READY PACKAGE NOTES Pronto® M71™Base with SureStep® Part No 1143240...

  • Page 79: Global Limited Warranty (Excluding Canada)

    Invacare warrants the base frame to be free from defects in materials and workmanship for a period of five (5) years from the date of purchase from Invacare or a dealer, with a copy of the seller’s invoice required for coverage under this warranty.

  • Page 80: Canada Limited Warranty

    Invacare warrants the base frame to be free from defects in materials and workmanship for a period of five (5) years from the date of purchase from Invacare or a dealer, with a copy of the seller’s invoice required for coverage under this warranty.
