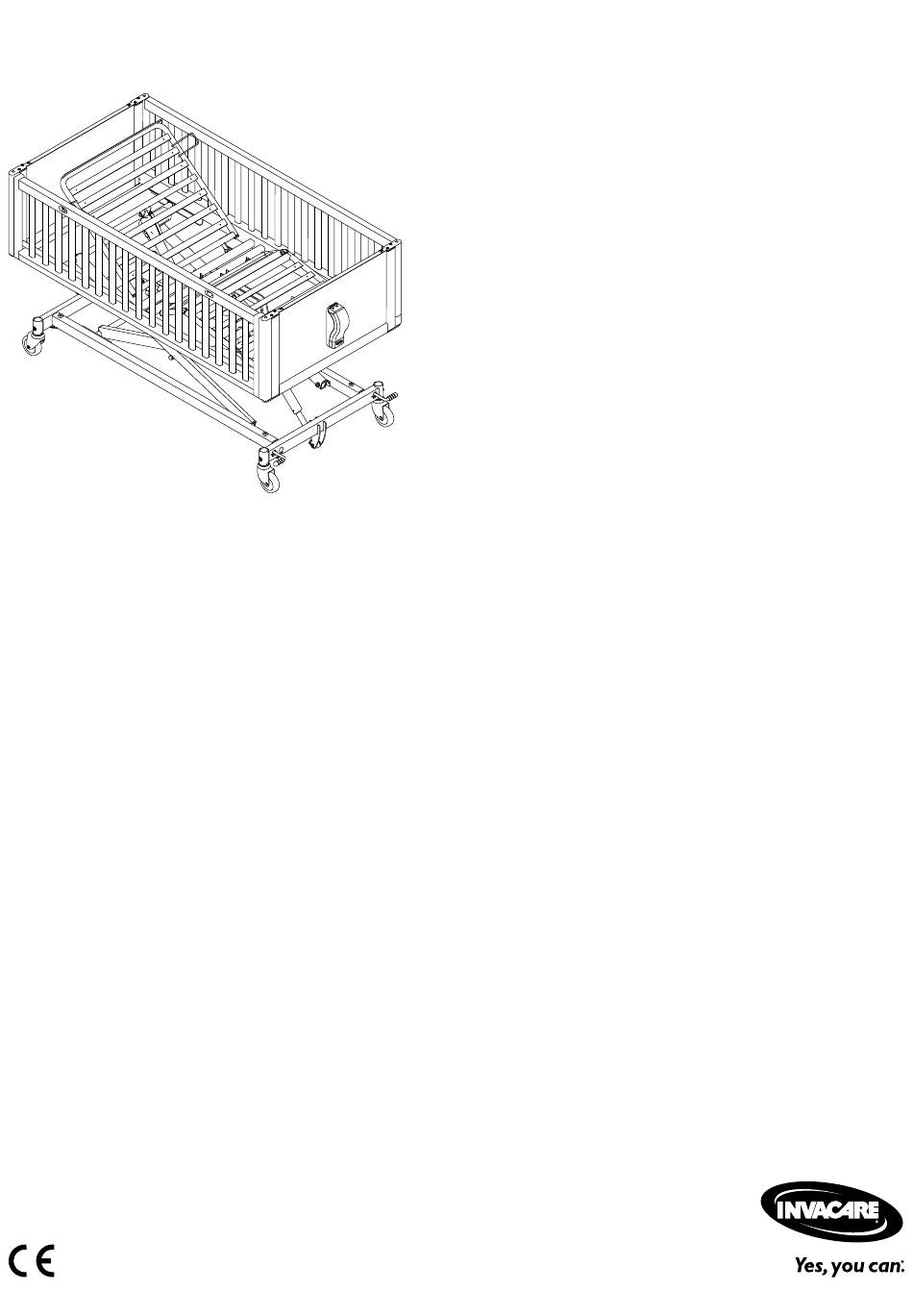

- Page 1 Invacare® NordBed™ Kid en Children`s Bed Service Manual PROVIDER: Keep this manual. The procedures in this manual MUST be performed by a qualified technician.
- Page 2 All rights reserved. Republication, duplication or modification in whole or in part is prohibited without prior written permission from Invacare. Trademarks are identified by ™ and ®. All trademarks are owned by or licensed to Invacare Corporation or its subsidiaries unless otherwise noted.
-
Page 3: Table Of Contents
Contents 1 General ......... 4 1.1 Introduction . -
Page 4: General
CAUTION Find the user manual on Invacare’s website or contact Indicates a hazardous situation that could your Invacare representative. See addresses at the end result in minor or slight injury if it is not of this document. -
Page 5: Safety
G Height adjustment actuator delivered with the accessory. H Back section actuator – Additional manuals can be ordered from Invacare. See addresses at the end of this I Leg section actuator document. J Control unit – Due to regional differences, refer to your... -
Page 6: Setup
Position the bed end frame at an 90° angle to the – In case of damage, do not use the product mattress support platform and on both sides of the and contact your Invacare provider for further bed insert the grub screw C until feeling a resistance. instructions. -
Page 7: Installing Side Rails
Setup 3.3 Installing side rails 3.3.2 Installing the Lowering Side Rail WARNING! Allen key (4 mm) Risk of personal damage There is a risk of entrapment or squeezing, Mounting while assembling or disassembling the side rail. – Pay attention to your fingers. –... -
Page 8: Installing The Side Rail With Foldable Doors
Invacare® NordBed™ Kid Dismounting Raise the bed to its highest position and follow step 1, 2 and 5 for mounting in reversed order on both ends of the bed. 3.3.3 Installing the Side Rail with Foldable Doors Allen key (2.5 mm, 4 mm) IMPORTANT! –... - Page 9 Setup Slightly loosen screws A in each corner so the bed end frames are still stable but slightly adjustable in angle. If required use the grub screws B to adjust the angle of the bed end frames until the side rails fit and function properly.
-
Page 10: Transportation And Storage
Invacare® NordBed™ Kid 4 Transportation and Storage 4.1 Dismounting the Mattress Support Platform IMPORTANT! Before dismounting – Ensure the brakes are engaged. – At least two persons are needed to dismount the mattress support platform as it must be supported in both ends. -
Page 11: Mounting The Mattress Support Platform
Transportation and Storage 4.2 Mounting the Mattress Support Platform IMPORTANT! Before mounting – Ensure the brakes are engaged. – At least two persons are needed to mount the mattress support platform as it must be supported in both ends. Press in the two latches A on the control unit with a pointed object (e.g. -
Page 12: Servicing
5.2.1 Checklist - After relocation A service contract can be made in the countries, where Invacare has its own sales company. In certain countries Checkpoints Invacare offers courses in service and maintenance of the Check that the lifting mechanism is properly engaged bed. -
Page 13: Cleaning Intervals
5.3.3 Cleaning Instructions (axle must be dismounted) IMPORTANT! For ordering of correct oil and grease, please – The product does not tolerate cleaning contact your Invacare dealer. in automatic washing systems, with high-pressure cleaning equipment or steam. 5.4 Control Unit Electrical components The control unit is attached to the height adjustment •... - Page 14 Invacare® NordBed™ Kid The actuator sockets inside the control unit are labeled with symbols and colors, indicating where to connect the respective plugs. • A Leg section actuator • B Tight section actuator • C Hand control • D Height adjustment actuator •...
- Page 15 Notes...
- Page 16 Invacare Distributors Ireland: United Kingdom: Invacare Ireland Ltd, Invacare Limited Unit 5 Seatown Business Campus Pencoed Technology Park, Pencoed Seatown Road, Swords, County Dublin Bridgend CF35 5AQ Tel : (353) 1 810 7084 Tel: (44) (0) 1656 776 222 Fax: (353) 1 810 7085 Fax: (44) (0) 1656 776 220 ireland@invacare.com...
