OpenEye OE-C1014D4 Quick Start Manual

CONNECTIONS
1
2
1
3
2
3
4
1
4 2
3
4
2
1
Waterproof Cable
5 4
1 1 Thread lock cap Thread lock cap
2 2 Rubber plug Rubber plug
3 3 RJ45 enclosure RJ45 enclosure
Liberty Lake, WA, USA
509.232.5261
openeye.net
1 1 RJ-45 RJ-45 For network and PoE connections For network and PoE connections
2 2 Power (12vDC)* Power (12vDC)* Power connection Power connection
Grey Grey Audio Out Audio Out
Purple Purple Ground Ground
3 3 Audio I/O Audio I/O
Green Green Audio In Audio In
Brown Brown Ground Ground
Yellow Yellow Alarm Out + Alarm Out +
White White Alarm Out - Alarm Out -
4 4 Alarm I/O Alarm I/O
Orange Orange Alarm Input Alarm Input
Blue Blue Ground Ground
*12vDC power input port should be plugged when not in use.
To restore the camera to factory To restore the camera to factory
defaults: defaults:
1. 1. Disconnect power for 30 Disconnect power for 30
seconds. seconds.
1 1 Reset Button Reset Button
2. 2. Reconnect power and wait 30 Reconnect power and wait 30
seconds. seconds.
3. 3. Press and hold the reset Press and hold the reset
button for 20 seconds. button for 20 seconds.
Supports up to 512GB microSD Supports up to 512GB microSD
card for Edge storage. card for Edge storage.
2 2 MicroSD Card Slot MicroSD Card Slot Do not add or remove the Do not add or remove the
microSD card when the camera microSD card when the camera
is powered on. is powered on.
3 1
2
4 4 Rubber "O" ring Rubber "O" ring
5 5 Camera cable Camera cable
Copyright ©2021 OpenEye.
All Rights Reserved. Information contained in this
document is subject to change without prior notice.
OpenEye does its best to provide accurate information but
cannot be held responsible for typos or mistakes.
This quick start guide provides
only basic information on the
camera's settings and operation for
initial installation. Please read the
user manual for optimal camera
configurations.
Find the latest product
documentation and software.
Scan the QR code or go to
openeye.net/downloads
QUICK START GUIDE

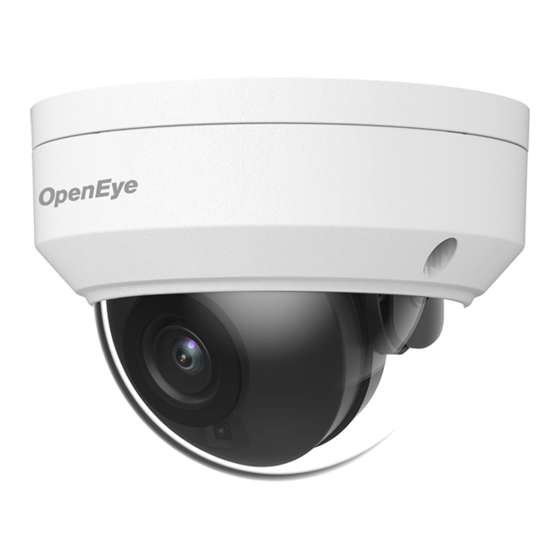

4MP Indoor IP Dome
OE-C1014D4
37488AD
