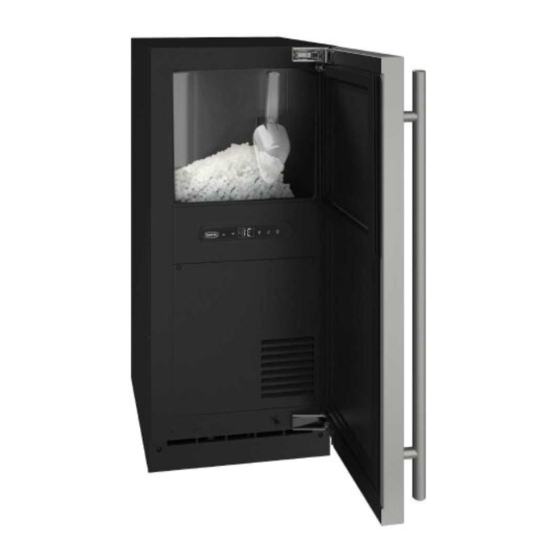

Marvel MLNP115 Owner's Manual

Marvel MLNP115 Owner's Manual

Undercounter refrigeration
Hide thumbs Also See for MLNP115:

Advertisement

O W N E R S G U I D E
OWNER'S GUIDE
M A R V E L U N D E R C O U N T E R R E F R I G E R A T I O N
M ARVEL UNDERCOUNTER REFRIGERATION
F O R M O D E L # M L N P 1 1 5
F O R M O D E L # M L R E 2 2 4
T H E O R I G I N A L R E F R I G E R A T I O N E X P E R T S S I N C E 1 8 9 2
T H E O R I G I N A L R E F R I G E R A T I O N E X P E R T S S I N C E 1 8 9 2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MLNP115 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Marvel MLNP115

  • Page 1 O W N E R S G U I D E OWNER'S GUIDE M A R V E L U N D E R C O U N T E R R E F R I G E R A T I O N M ARVEL UNDERCOUNTER REFRIGERATION F O R M O D E L # M L N P 1 1 5 F O R M O D E L # M L R E 2 2 4...
  • Page 2 Got a Marvelous Design? The service number and serial number can be found on the We would love to see how your Marvel product looks in its serial plate which is located inside the cabinet on the left new home. Send us photos at marketing@marvelrefrigera- side near the top.
  • Page 3: Table Of Contents

    TABLE OF CONTENTS Tip: Click on any section below to jump directly there Safety Important Safety Instructions Installation Unpacking Your Appliance Electrical Installing The Water Supply Maintenance Stainless Steel Maintenance Service Obtaining Service Product Liability Warranty Claims Ordering Replacement Parts R600a Specifications System Diagnosis Guide Thermistor...
  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Important Safety Instructions Warnings and safety instructions appearing in this guide are not meant to cover all possible conditions and situa- tions that may occur. Common sense, caution, and care must be exercised when installing, maintaining, or operat- ing this appliance.
  • Page 5: Unpacking Your Appliance

    UNPACKING YOUR APPLIANCE WARNING CAUTION If the appliance was shipped, handled, or stored in other EXCESSIVE WEIGHT HAZARD than an upright position for any period of time, allow the ap- Use two or more people to move product. pliance to sit upright for a period of at least 24 hours before Failure to do so can result in personal injury.
  • Page 6: Electrical

    ELECTRICAL Electrical Connection A grounded 115 volt, 15 amp dedicated circuit is required. This product is factory equipped with a power supply cord that has a three-pronged, grounded plug. It must be plugged into a mating grounding type receptacle in ac- cordance with the National Electrical Code and applicable Do not remove local codes and ordinances (see figure below).
  • Page 7: Installing The Water Supply

    INSTALLING THE WATER SUPPLY CAUTION CAUTION Observe and follow all local building codes Water when installing this ice machine and drain surrounding water damage and/or poor ice production. supply lines. inlet " " WARNING (3.2 cm) (17mm) Electrical Shock Hazard Reasonable care and safe methods should be Drain access in "...
  • Page 8 616-754-5601 cabinet. Uncoil, route to an appropriate drain and cut to length. CAUTION This drain pump is designed to be installed in Marvel ice machines only and approved for use with water only. WARNING Drain pump vent tube. Electrical Shock Hazard...
  • Page 9 INSTALLING THE WATER SUPPLY Water Supply CAUTION Observe and follow all local building codes when installing this appliance. This ice machine must be connected to a potable cold water supply line. delivering water pressure between a minimum of 20 psi and a maximum of 120 psi. "...
  • Page 10 INSTALLING THE WATER SUPPLY Procedure for Testing Drain System (both gravity and drain pump models) Drain pump models have a safety feature that will interrupt power to the unit if a high-limit condition occurs to prevent is corrected, at which time power will be restored to the unit. Power interruption can be detected when no icons are visible in the display area of the user interface.
  • Page 11: Stainless Steel Maintenance

    STAINLESS STEEL MAINTENANCE Background NOTE Stainless steel does not stain, corrode, or rust as easily as ordinary steel, but it is not stain or corrosion proof. Stain- less steels can discolor or corrode if not maintained prop- Stainless steel products should never be installed, or stored erly.
  • Page 12: Obtaining Service

    OBTAINING SERVICE If Service is Required: • If the product is within the first year warranty period please contact your dealer or call Marvel Customer Service at 616.754.5601 for directions on how to obtain warranty coverage in your area. •...
  • Page 13: Product Liability

    The part that caused the damage must be returned to Marvel in its entirety. The part must be clearly labeled with the serial number of the unit it was removed from, the date, and the servicer who removed the part.
  • Page 14: Warranty Claims

    Claims must be submitted online at • Final billing - Remodel www. marvelservice . co m Warranty parts will be shipped at no charge after Marvel • 60 day submittal d eadline from date of completed confirms warranty status. Please provide the model, serial service number, part number and part d escription.
  • Page 15: Ordering Replacement Parts

    Warranty parts will be shipped at no charge after Marvel confirms warranty status. Please provide the model, serial number, part number and part description. Some parts will require color or voltage information.
  • Page 16: R600A Specifications

    PERSONNEL DO HOT PUNCTURE REFRIGERANT TUBING refrigeration system. RISK Of FIRE OR EXPLOSION. FIAMHA_ B LE REFRIGERANT USED. CONSULT Never substitute Marvel OEM replacement parts REPAIR IIANUAVOWHER'S GUIDE BEFORE ATTEMPTING TO SERVICE THIS PRODUCT. ALL SAFETY PRECAUTIONS HUST BE FOUOWEO.
  • Page 17 R-600A SPECIFICATIONS/LABELING WARNING R-600a equipped products are labeled (both the unit and the compressor). Only skilled and well trained service technicians permitted to service R-600a equipped products. R-600a is colorless and odorless. All tools and equipment must be approved for use with R-600a refrigerant.
  • Page 18 Evacuate/reclaim via the piecing pliers to ensure the When re-brazing, the system must be purged with dry system is empty of R-600a before any system work is nitrogen and at least one access point open to the performed. atmosphere. When re-brazing, proper ventilation is required along with constant monitoring for the presence of R600a refrigerant.
  • Page 19 The low side of the refrigeration system (evaporator, Proper ventilation during service is required. compressor and suction line) must be leak tested with the compressor off (equalized pressure). Never apply a torch to a charged R-600a refrigeration system. RECHARGING No air is ever to be allowed inside the refrigeration system Use OEM replacement service parts and do not alter the (R-600a refrigerant or dry nitrogen only).
  • Page 20: System Diagnosis Guide

    System Diagnosis Guide REGRIGERATION SYSTEM DIAGNOSIS GUIDE System Suction Suction Compressor Condenser Capillary Evaporator Wattage Condition Pressure Line Discharge Tube Normal Normal Slightly Very hot Very hot Warm Cold Normal below room temperature Overcharge Higher than Very cold Slightly warm Hot to warm Cool Cold...
  • Page 21: Thermistor

    Thermistors Evaporator Thermistor Thermistors are used for various temperature readings. If the evaporator thermistor fails, the unit will rely on a Thermistors provid e reliable temperature readings preset defrost timer during defrost cycles. The unit will using a resistance which varies based on surrounding otherwise operate normally.
  • Page 22 For designated Marvel Professional product, Marvel offers a one year extension of the two year warranty coverage from the date of purchase, free of charge. To take advantage of this third year warranty, you must register your product with Marvel within 60 days from the date of purchase at marvelrefrigeration.com and provide proof of purchase.
  • Page 23 Marvel Refrigeration 1260 E. Van Deinse St. Greenville MI 48838 616.754.5601 41015887 Rev A All specifications and product designs subject to change without notice. Such revisions do not entitle 12/14/20 the buyer to corresponding changes, improvements, additions, replacements or compensation for...
