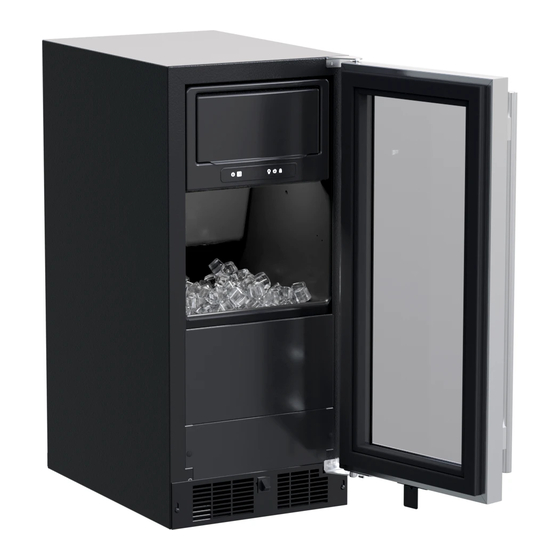

- Page 1 OWNER’S GUIDE & SERVICE MANUAL M A R V E L U N D E R C O U N T E R R E F R I G E R AT I O N Model: MLCP215-SG01A...
- Page 2 • Tech Support: techsupport@marvelrefrigeration.com Got a Marvelous Design? We would love to see how your Marvel product looks in its new home. You can send us photos of your installed product at marketing@marvelrefrigeration.com, and we might feature your Marvel home design on our website and...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Tip: Click on any section below to jump directly there Safety Important Safety Instructions Installation Unpacking Your Appliance Electrical Cutout & Product Dimensions Side-by-Side & Stacking Installations Door Reversal Installing The Water Supply Maintenance Care and Cleaning Stainless Steel Maintenance Service Obtaining Service... -
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Important Safety Instructions Warnings and safety instructions appearing in this guide are not meant to cover all possible conditions and situations that may occur. Common sense, caution and care must be exercised when installing, maintaining or operating this appliance. Recognize Safety Symbols, Words and Labels WARNING... -
Page 5: Unpacking Your Appliance
UNPACKING YOUR APPLIANCE WARNING CAUTION If the appliance was shipped, handled or stored in other EXCESSIVE WEIGHT HAZARD than an upright position for any period of time, allow the Use two or more people to move product. appliance to sit upright for a period of at least 24 hours Failure to do so can result in personal injury. -
Page 6: Electrical
ELECTRICAL Electrical Connection A grounded 115 volt, 15 amp dedicated circuit is required. This product is factory equipped with a power supply cord that has a three-pronged, grounded plug. It must be Do not remove plugged into a mating grounding type receptacle in ground prong accordance with the National Electrical Code and applicable local codes and ordinances. -
Page 7: Cutout & Product Dimensions
CUTOUT AND PRODUCT DIMENSIONS ROUGH-IN OPENING DIMENSIONS CABINET DIMENSIONS "A" "B" "C" "D" "E" "F" "G" "H" "J" 16 5/8" 15" 34" to 35" 24" 14 7/8" 33 3/4” to 34 3/4" 23 5/8" 25 1/2" 37 3/8" (38.1 cm) (85.7 cm to 88.3 cm) (61 cm) (37.8 cm) - Page 8 CUTOUT AND PRODUCT DIMENSIONS PRODUCT DATA ELECTRICAL PRODUCT REQUIREMENTS # WEIGHT 105 lbs 115V/60Hz/15A (47.6 kg) "J" "H" "D" "G" "E" " (54.6 cm) "F" Glass Door Shown Minimum rough-in opening required is to be larger than the adjusted height of the cabinet. A grounded 15 amp dedicated circuit is required.
-
Page 9: Side-By-Side & Stacking Installations
SIDE-BY-SIDE AND STACKING INSTALLATIONS Side-by-Side Installation Other Site Requirements Stainless steel models which include the standard stainless Units must operate from separate, properly grounded elec- handle will require 4-9/16" (116 mm) to allow both doors to trical receptacles placed according to each unit's electrical open to 90°... -
Page 10: Door Reversal
DOOR REVERSAL Door Reversing Instructions Tools Needed: • 1/8” Hex Key • 5/32” Hex Key • Phillips Screwdriver Open door and remove Hinge Pin from the Upper Hinge using a 1/8” Hex Key tool making sure to steady the Using a Phillips Screwdriver, remove the 6 screws from both the Upper and Lower Hinges and save for later steps Once the Hinges are removed from the unit, using a Phillips Screwdriver, remove the Bushing Screw and Hinge Pin Screw and save for later steps On the Bottom Hinge, reattach the Bushing Screw and Hinge Pin Screw to the opposite side... - Page 11 DOOR REVERSAL 6. Remove the door switch actuator tab from the door and attach it to the opposite side Door switch actuator tab 7. Reattach the Upper and Lower Hinges, and Hinge Brackets to opposite sides. Then install the door.
-
Page 12: Installing The Water Supply
A TDS meter is included with your unit • Water Treatment Options ◦ TDS level of 200 ppm or higher and/or a hardness of 12-19 gpg can be treated by Marvel’s in-line water filter accessories available at marvelrefrigeration.com: • S41016343-ACCY — Standard •... - Page 13 INSTALLING THE WATER SUPPLY Water Hookup Based upon the TDS measurement, see the below table to determine the correct filter required to protect the ice 1. Turn off water supply and disconnect electrical supply machine. to product prior to attempting installation. Water Quality 1-3 Users 4+ Users...
- Page 14 "nickel safe" ice maker cleaner. You can order ice machine plate and grid cutter cleaner (part # S41013789) at marvelrefrigeration.com. area that is not embedded in wires CAUTION Use only Marvel-approved ice machine cleaner and follow all label warnings and directions. Incorrect chemical warranty.
-
Page 15: Care And Cleaning
CARE AND CLEANING Remove ice from bin. Pull plug from the reservoir. Once reservoir is empty, replace plug. Hold the button for 10 seconds to show "CL" on the display. Lift Fascia door to access evaporator plate. Lift or remove splash shield to expose evaporator plate. -
Page 17: Stainless Steel Maintenance
STAINLESS STEEL MAINTENANCE Background NOTE Stainless steel does not stain, corrode, or rust as easily as ordinary steel, but it is not stain or corrosion proof. Stain- less steels can discolor or corrode if not maintained prop- Stainless steel products should never be installed, or stored erly. -
Page 18: Obtaining Service
OBTAINING SERVICE If Service is Required: • If the product is within the first year warranty period please contact your dealer or call Marvel Customer Service at 616.754.5601 for directions on how to obtain warranty coverage in your area. •... -
Page 19: Troubleshooting
TROUBLESHOOTING Before You Call for Service WARNING troubleshooting guide below. Locate the problem in the Electrocution Hazard guide and refer to the cause and its remedy before calling • Never attempt to repair or perform maintenance on for service. The problem may be something very simple the appliance until the main electrical power has been disconnected. - Page 20 TROUBLESHOOTING Ice Quality Troubleshooting the Drain Pump Is there mineral scale build up on the evaporator NOTE plate If the drain pump reservoir (not the ice machine bin) Is there a high mineral content in the water? The water If the ice machine is not working, check the following: Are food items being stored in the ice bin? Remove •...
- Page 21 SERVICE CORD GROUND GREEN GREEN PUMP SWITCH N.O. POWER GROUND PUMP HIGH WATER LIMIT BLACK SWITCH N.C. OUTLET GREEN DRAIN PUMP LIGHT (OPTIONAL) SERVICE CORD- POWER DRAIN PUMP GROUND SERVICE BLACK GREEN CORD WHITE OUTPUT GROUND BLUE WHITE WATER SOLENOID LIGHT WHITE WHITE...
-
Page 22: Product Liability
The part that caused the damage must be returned to Marvel in its entirety. The part must be clearly labeled with the serial number of the unit it was removed from, the date, and the servicer who removed the part. -
Page 23: Warranty Claims
Claims must be submitted online at • Final billing - Remodel www. marvelservice . co m Warranty parts will be shipped at no charge after Marvel • 60 day submittal d eadline from date of completed confirms warranty status. Please provide the model, serial service number, part number and part d escription. -
Page 24: Ordering Replacement Parts
Warranty parts will be shipped at no charge after Marvel confirms warranty status. Please provide the model, serial number, part number and part description. Some parts will require color or voltage information. -
Page 25: System Diagnosis Guide
System Diagnosis Guide REGRIGERATION SYSTEM DIAGNOSIS GUIDE System Suction Suction Compressor Condenser Capillary Evaporator Wattage Condition Pressure Line Discharge Tube Normal Normal Slightly Very hot Very hot Warm Cold Normal below room temperature Overcharge Higher than Very cold Slightly warm Hot to warm Cool Cold... -
Page 26: Compressor Specifications
Compressor Specifications EMY45HER REFRIGERANT R134A DANGER VOLTAGE 115-127 VAC FREQUENCY 60 Hz START WINDING 11 Ohm at 77 ° Electrocution can cause death or serious injury. RUN WINDING 5 Ohm at 77 ° Burns from hot or cold surfaces can cause serious 126 Ohm at 77 °... -
Page 27: Troubleshooting Extended
• Automatic Defrost Drain Pan: Water may be heard Marvel Refrigeration, “Customer Care Facility” at dripping or running into the drain pan when the unit is 616.754.5601 for assistance. in the defrost cycle. - Page 28 TROUBLESHOOTING GUIDE Concern Potential Causes Action Not Cooling Compressor overheating Verify proper air flow through condenser. Is condenser clean? Confirm condenser fan operation. Compressor not operating Test overload and relay, replace as needed. Compressor operating - no cooling Refer to System Diagnosis Guide. Frozen Product Control set too cold Adjust Set Point Temp accordingly.
- Page 29 MAIN CONTROL CAUTION The main control board is very robust and is rarely the cause of system issues. It is important to fully diagnose Precautions must be taken while working with the board for any suspected failures before attempting live electrical equipment. Be sure to follow to remove the board for replacement or service.
-
Page 30: Thermistor
Thermistors Evaporator Thermistor Thermistors are used for various temperature readings. Thermistors provid e If the evaporator thermistor fails, the unit will rely on a reliable temperature readings preset defrost timer during defrost cycles. The unit will using a resistance which varies based on surrounding temperatures. If a otherwise operate normally. - Page 31 For designated Marvel Professional product, Marvel offers a one year extension of the two year warranty coverage from the date of purchase, free of charge. To take advantage of this third year warranty, you must register your product with Marvel within 60 days from the date of purchase at marvelrefrigeration.com and provide proof of purchase.
- Page 32 Marvel Refrigeration 1260 E. Van Deinse St. Greenville MI 48838 616.754.5601 All specifications and product designs subject to change without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions, replacements or compensation for previously purchased products.
