1.2.

Checking the compatibility of vehicle and accessories

Requirements
Brand Compatible vehicles
Opel Insignia B since 06/2018
Limitations:
Video only
Factory rear-view camera
After market front camera

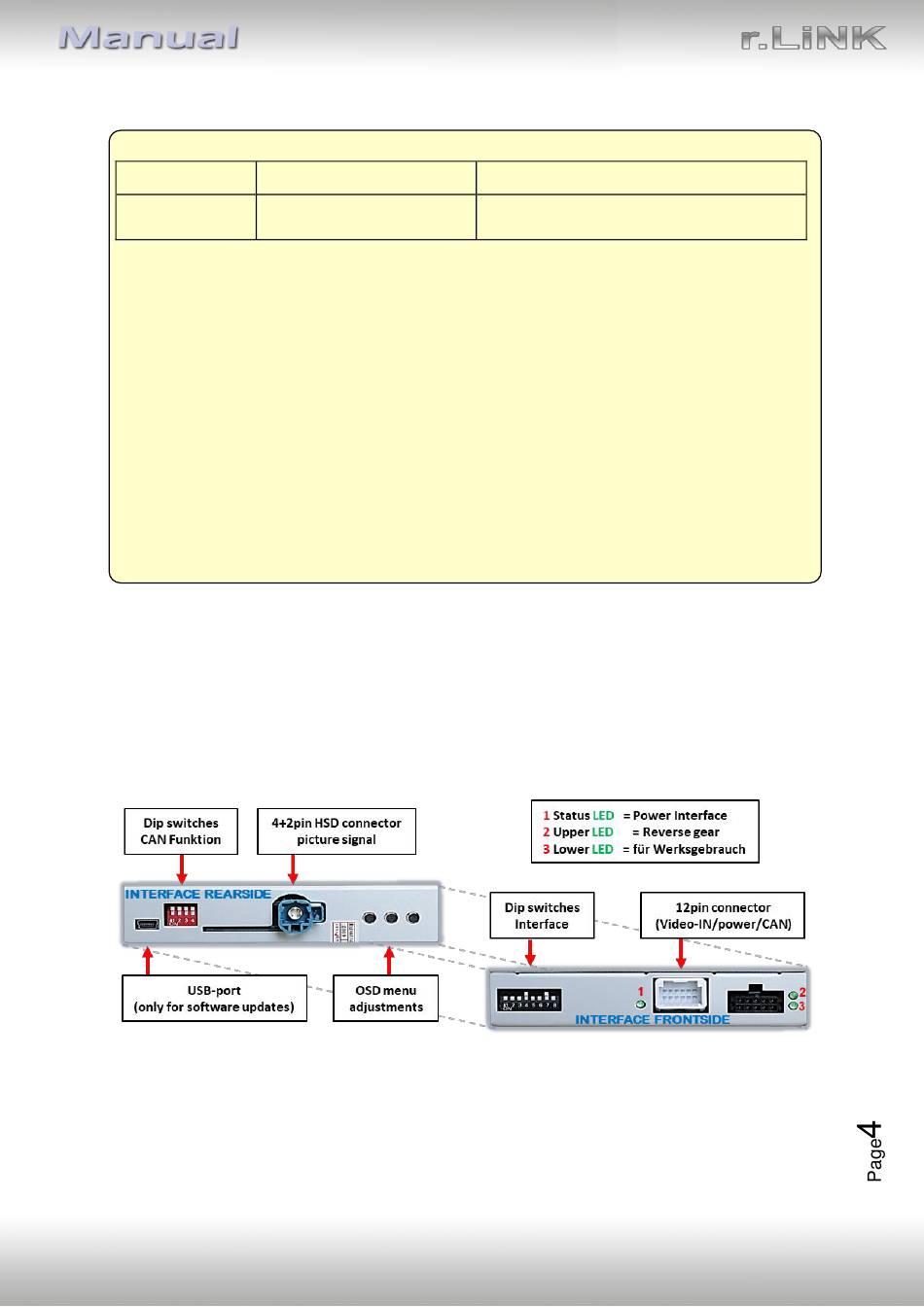

1.3. Boxes and connectors – video interface
The video-interface converts the connected after-market sources video signals into a LVDS
signal which is inserted in the factory monitor using separate trigger options. Further it reads
the vehicle's digital signals out of the vehicle's GM-Lan and converts them for the video
interface.
Version 15.09.2020
Compatible systems
Multimedia Navi Pro with 8inch monitor
The interface inserts ONLY video signals into the infotainment.
For inserting Audio signals either the possibly existing factory
audio-AUX-input or a FM-modulator can be used. If 2 audio
sources shall be connected to the infotainment, an additional
electronic is necessary to switch them.
Automatically switching-back from inserted video to factory rear-
view camera is only possible while the reverse gear is engaged. To
delay the switch-back an additional electronic part is required.
The front camera will automatically be switched for 10 seconds
after disengaging the reverse gear. A manually front camera
switching is possible by external keypad.
HW:CAM(V100)/(V20+V41) RL4-MM-NP
