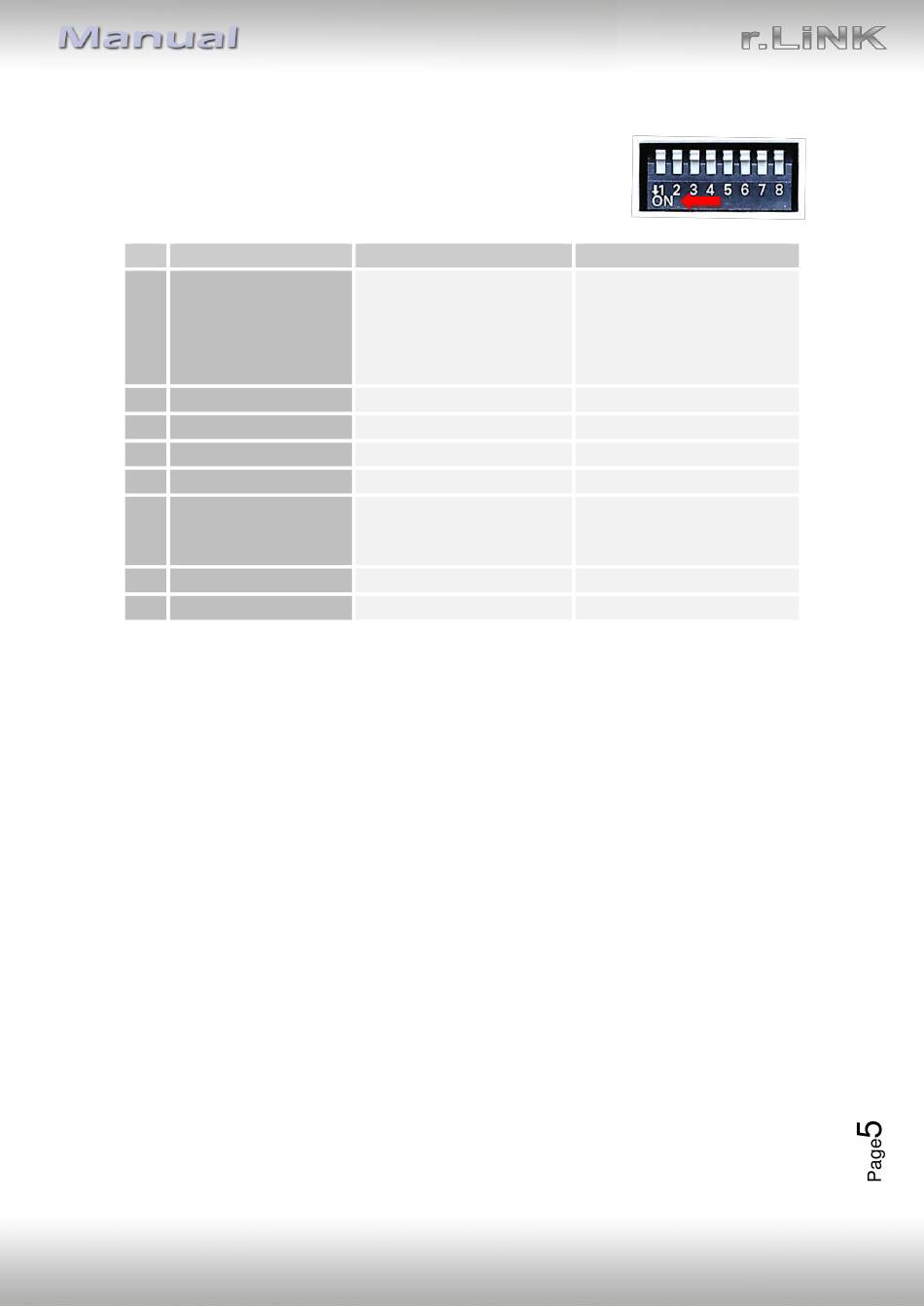

Settings of the 8 Dip switches (black)

Some settings have to be selected by the dip-switches on the
video interface.
Dip position down = ON
Dip Function
1 Power supply output
(red wire)
2 CVBS Video 1-input
3 CVBS Video 2-input
4 No function
5 Rear-view cam type
6 Frontcam
back-switching
for 10 seconds
7
Monitor selection
8 Monitor selection
*The front camera will automatically be switched for 10 seconds after disengaging the
reverse gear.
See the following chapters for detailed information.
After each Dip-switch-change a power-reset of the video interface has to be performed!
Version 15.09.2020
and position up = OFF.
ON (down)
+12V (max. 3A) when
reverse gear is engaged
incl. 10 seconds delay and
+12V by manual switching
to front camera by keypad
enabled
enabled
after-market
Enabled*
HW:CAM(V100)/(V20+V41)
OFF (up)
+12V (max. 3A) ACC
disabled
disabled
set to OFF
factory or none
disabled
set to OFF
set to OFF
