2.6.

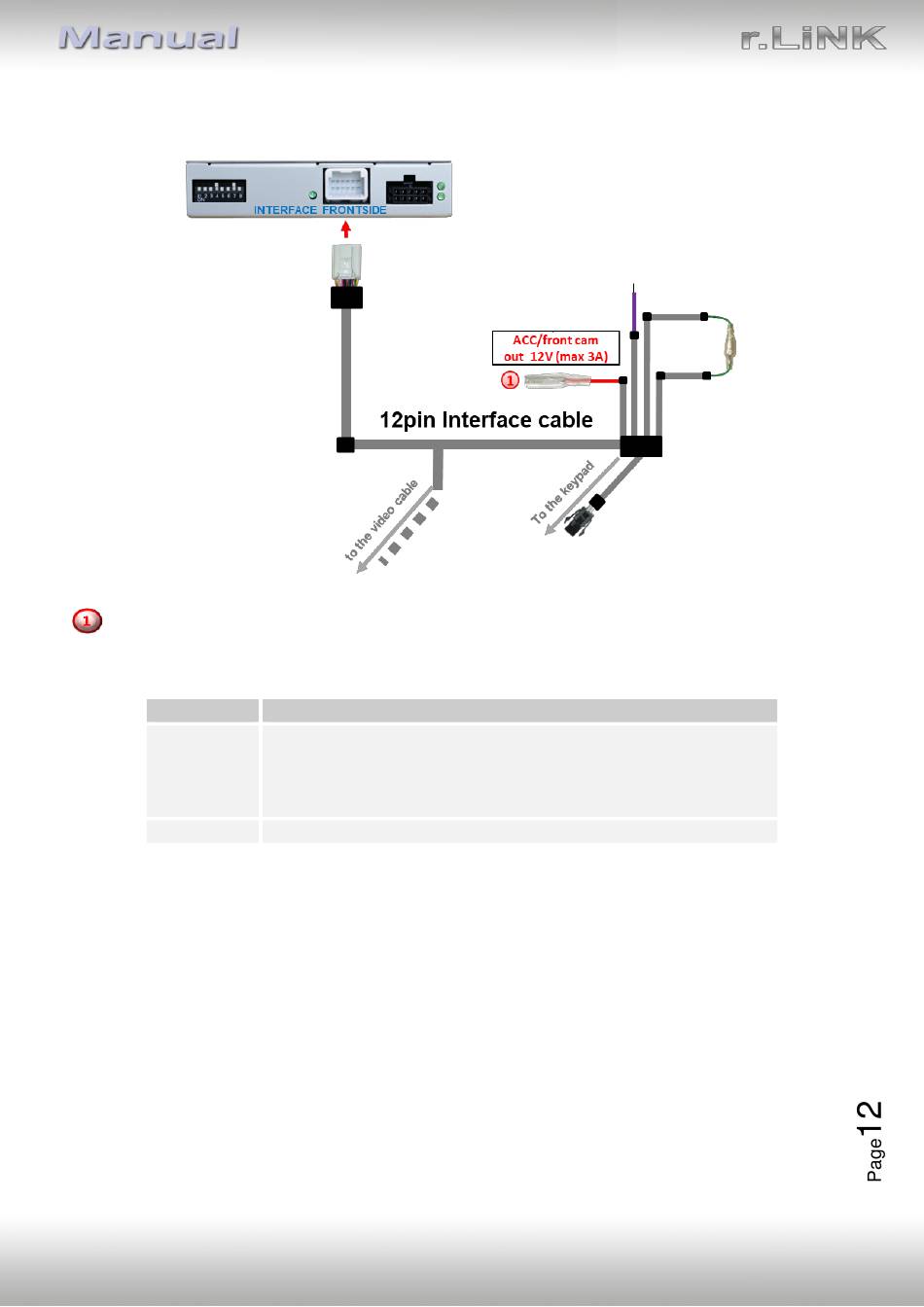

Power supply output
The red power supply output
external source and has a different assignment depending on the position of dip switch 1 (of
the black 8 dips):
Dip
Function
Dip 1 ON
+12V (max. 3A) when reverse gear is engaged incl. 10 seconds
delay after reverse gear is disengaged and
+12V by manual switching to front camera by keypad (short
press)
Dip 1 OFF
+12V (max. 3A) simulated ACC (while CAN has activity)
Version 15.09.2020
ACC/front cam out 12V (max 3A)
HW:CAM(V100)/(V20+V41)
can be used to power an
RL4-MM-NP
