2.3.

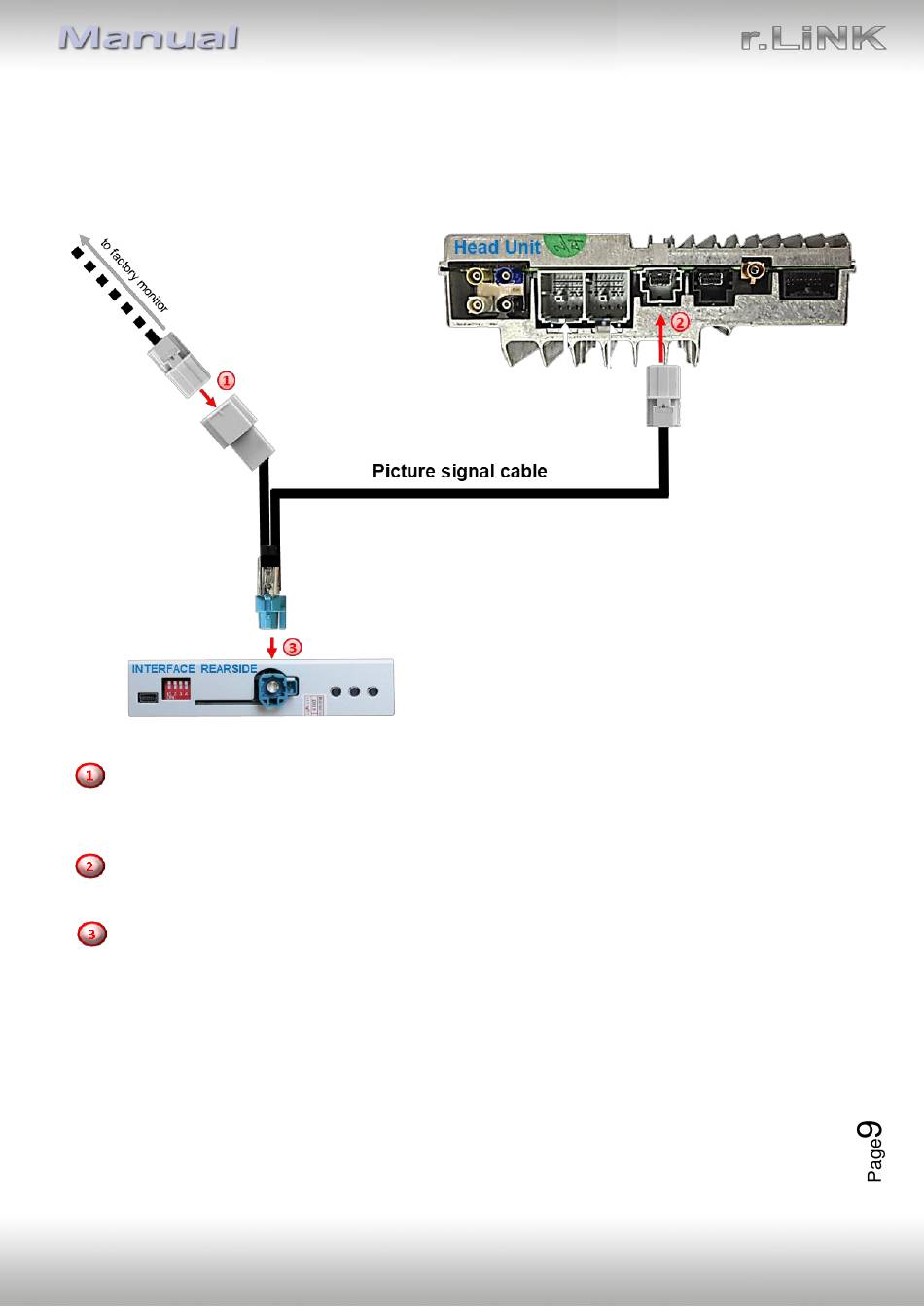

Connection – picture signal cable
Remove the head unit
Disconnect the factory picture signal cable's female 12pin connector at the rear-side of the
head unit and connect it to the grey coloured 12pin connector of the enclosed picture signal
cable.
Connect the opposite grey coloured female 12pin connector of the enclosed picture signal
cable to the head unit's previously become free male 12pin connector.
Connect the picture signal cable's female waterblue coloured HSD+2 connector to the
bordeaux coloured male HSD+2 connector of the video interface.
Note: The colours of the head unit's and factory harness's male and female 12pin
connectors may vary.
Version 15.09.2020
HW:CAM(V100)/(V20+V41)
RL4-MM-NP
