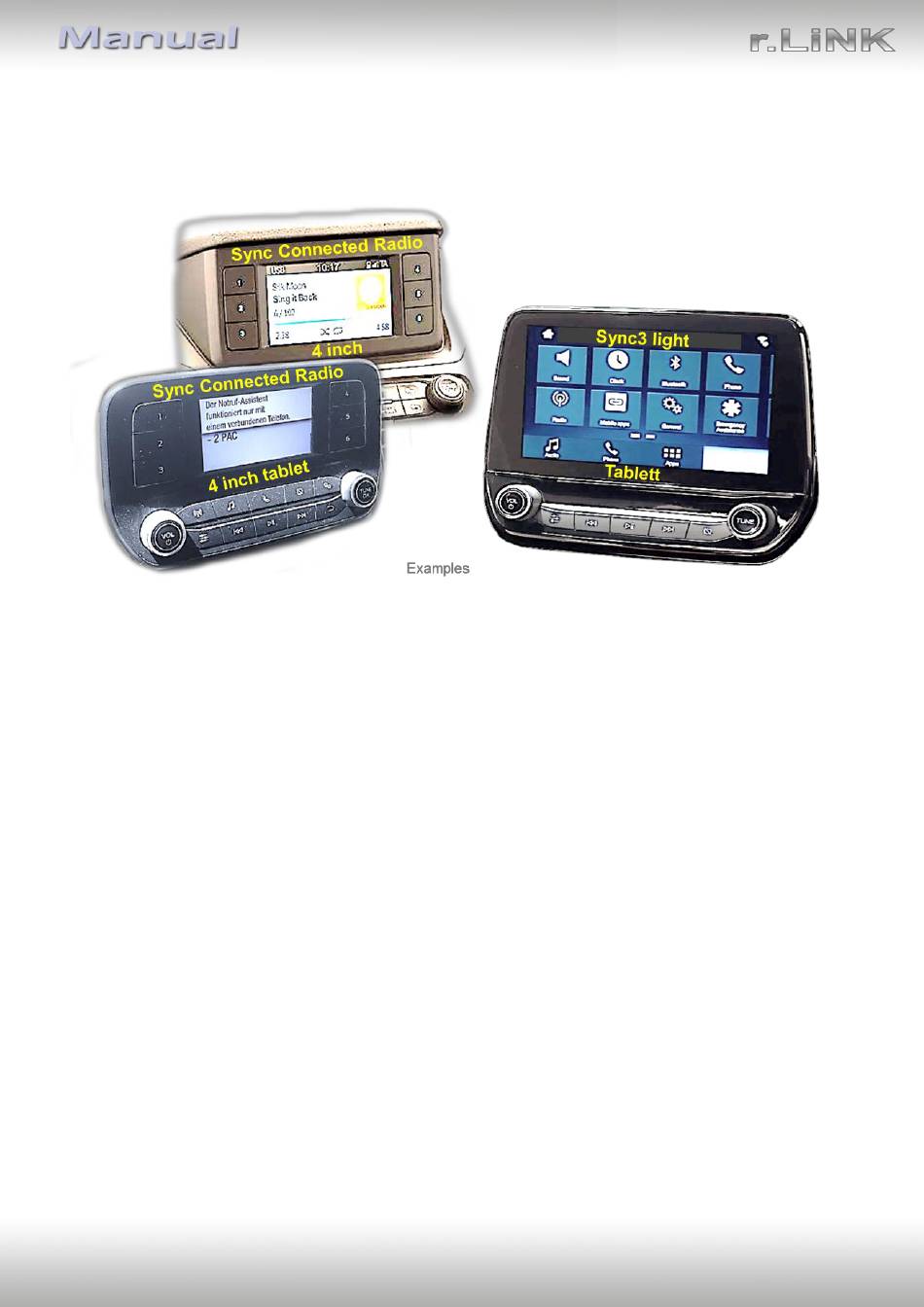

Compatible with Ford vehicles with
with 6.5, 7 or 8inch tablet monitor
Sync Connected Radio version
Video-inserter for front- and rear-view camera
Product features
• Video-inserter for factory-infotainment systems
• 1 CVBS Input for rear-view camera
• 1 CVBS Input for front camera
• 2 CVBS video-inputs for after-market devices (e.g. USB-Player, DVB-T2 tuner)
• Automatic switching to rear-view camera input on engagement of the reverse gear
• Automatic front camera switching after reverse gear for 10 seconds
• Activatable parking guide lines for rear-view camera (not available for all vehicles)
• Video-in-motion (ONLY for connected video-sources)
• Video-inputs NTSC and PAL compatible
Version 09.12.2020
r.LiNK Video-inserter
RL4-SY3-R5
Sync3 Light (R5) version
with 4inch monitor
and two additional video sources
HW: CAM(V100)/(V11+V41)
ab Serien Nr: NZ20NOV694
RL4-SY3-R5
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for r.LiNK RL4-SY3-R5
Summary of Contents for r.LiNK RL4-SY3-R5
- Page 1 Video-inserter RL4-SY3-R5 Compatible with Ford vehicles with Sync3 Light (R5) version with 6.5, 7 or 8inch tablet monitor Sync Connected Radio version with 4inch monitor Video-inserter for front- and rear-view camera and two additional video sources Product features • Video-inserter for factory-infotainment systems •...
-
Page 2: Table Of Contents
Case 2: Interface does not receive the reverse gear signal 3.4. Connection video-interface and keypad 3.5. Picture settings 4. Interface operation 4.1. By infotainment button 4.2. By keypad 5. Specifications 6. FAQ – Trouble Shooting-Interface functions 7. Technical support Version 09.12.2020 HW: CAM(V100)/(V11+V41) ab Serien Nr: NZ20NOV694 RL4-SY3-R5... -
Page 3: Prior To Installation
The place of installation has to be free of moisture and away from heat sources. 1.1. Delivery contents Take down the serial number of the interface and store this manual for support purposes: ____________________ Version 09.12.2020 HW: CAM(V100)/(V11+V41) ab Serien Nr: NZ20NOV694 RL4-SY3-R5... -
Page 4: Checking The Compatibility Of Vehicle And Accessories
The front camera will automatically be switched for 10 seconds after disengaging the reverse gear. A manually front camera switching is possible by external keypad. Guidelines and PDC Displayed guidelines and PDC are not available in all vehicles. Version 09.12.2020 HW: CAM(V100)/(V11+V41) ab Serien Nr: NZ20NOV694 RL4-SY3-R5... -
Page 5: Connectors - Video Interface
Further it reads the vehicle’s digital signals out of the vehicle’s CAN-bus and converts them for the video interface. Version 09.12.2020 HW: CAM(V100)/(V11+V41) ab Serien Nr: NZ20NOV694 RL4-SY3-R5... -
Page 6: Dip Switch Settings
*The front camera will automatically be switched for 10 seconds after disengaging the reverse gear. After each Dip-switch-change a power-reset of the Video Interface has to be performed! See the following chapters for detailed information. Version 09.12.2020 HW: CAM(V100)/(V11+V41) ab Serien Nr: NZ20NOV694 RL4-SY3-R5... -
Page 7: Activating The Front Camera Input (Dip 1)
If set to OFF, 6.5-, 7- and 8inch monitors are selected on the interface. Note: Dip8 is out of function and has to be set to OFF. After each Dip-switch-change a power-reset of the Video Interface has to be performed! Version 09.12.2020 HW: CAM(V100)/(V11+V41) ab Serien Nr: NZ20NOV694 RL4-SY3-R5... -
Page 8: Dip - Red
The interface needs a permanent 12V source! 2.1. Place of installation The interface is designated to be connected behind the vehicle`s head unit. Version 09.12.2020 HW: CAM(V100)/(V11+V41) ab Serien Nr: NZ20NOV694 RL4-SY3-R5... -
Page 9: Connection Schema
2.2. Connection schema Version 09.12.2020 HW: CAM(V100)/(V11+V41) ab Serien Nr: NZ20NOV694 RL4-SY3-R5... -
Page 10: Connection - Picture Signal Cable
Note: No liability for vehicle wire colours and pin definition! Changes by the vehicle manufacturer are possible. The given information has to be verified by the installer. Version 09.12.2020 HW: CAM(V100)/(V11+V41) ab Serien Nr: NZ20NOV694 RL4-SY3-R5... -
Page 11: Connection - Pnp Power / Can Cable
32pin connector of the enclosed PNP Power/CAN cable. Connect the enclosed PNP Power / CAN cable’s opposite female 32pin connector to the previously become free male 32pin connector of the head-unit. Version 09.12.2020 HW: CAM(V100)/(V11+V41) ab Serien Nr: NZ20NOV694 RL4-SY3-R5... -
Page 12: Sync3 Full Version As All-In-One Head-Unit
Connect the single brown cable to the vehicle’s Ground. Note: No liability for vehicle wire colours and pin definition! Changes by the vehicle manufacturer are possible. The given information has to be verified by the installer. Version 09.12.2020 HW: CAM(V100)/(V11+V41) ab Serien Nr: NZ20NOV694 RL4-SY3-R5... -
Page 13: Sync3 Full Version With Separate Apim Module
Connect the single brown cable to the vehicle’s Ground. Note: No liability for vehicle wire colours and pin definition! Changes by the vehicle manufacturer are possible. The given information has to be verified by the installer. Version 09.12.2020 HW: CAM(V100)/(V11+V41) ab Serien Nr: NZ20NOV694 RL4-SY3-R5... -
Page 14: Power Supply
Connect the female 12pin connector of the 12pin interface cable to the male 12pin connector of the video interface. Connect the 12pin interface cable’s purple coloured wire Manual ACC +12V ACC terminal 15 or to +12V S-contact terminal 86s +12V (e.g. glove compartment illumination). Version 09.12.2020 HW: CAM(V100)/(V11+V41) ab Serien Nr: NZ20NOV694 RL4-SY3-R5... -
Page 15: Power Supply Output
+12V (max. 3A) when reverse gear is engaged incl. 10 seconds delay after reverse gear is disengaged and +12V by manual switching to front camera by keypad (short press) Dip 1 OFF +12V (max. 3A) ACC Version 09.12.2020 HW: CAM(V100)/(V11+V41) ab Serien Nr: NZ20NOV694 RL4-SY3-R5... -
Page 16: Connection - Video Sources
Connect the front camera’s video RCA connector to the 12pin interface cable’s female RCA connector „Front V3“. Connect the video RCA of the AV source 1 and 2 to the 12pin interface cable’s female RCA connector “Left (V1)” ”Right (V2)”. Version 09.12.2020 HW: CAM(V100)/(V11+V41) ab Serien Nr: NZ20NOV694 RL4-SY3-R5... -
Page 17: Audio Insertion
(short press) from any image mode. The power supply output gives +12V then, as well (if Dip 1 is set to ON and the front camera input is selected). Attention: A long press of the external keypad push button will switch the interface to the next source. Version 09.12.2020 HW: CAM(V100)/(V11+V41) ab Serien Nr: NZ20NOV694 RL4-SY3-R5... -
Page 18: After-Market Rear-View Camera
The 12 V power supply for the rear-view camera (max 3A) has to be taken from the 12pin interface cabl’s green wire “Reverse-OUT” to avoid an unnecessary, permanent power supply to the camera electronic. Both green cables “Reverse IN” “Reverse OUT” have to remain connected. Version 09.12.2020 HW: CAM(V100)/(V11+V41) ab Serien Nr: NZ20NOV694 RL4-SY3-R5... -
Page 19: Case 2: Interface Does Not Receive The Reverse Gear Signal
Connect the output connector (87) of the relay to the rear-view camera’s power- cable, like you did it to the green “Reverse-IN” cable before. Connect permanent power / 12V to the relay’s input connector (30). Version 09.12.2020 HW: CAM(V100)/(V11+V41) ab Serien Nr: NZ20NOV694 RL4-SY3-R5... -
Page 20: Connection Video-Interface And Keypad
Connect the keypad’s female 4pin connector to the 12pin interface cable’s male 4pin connector. Note: Even if the switching through several video sources by the keypad mightn’t be required, the keypad’s invisible connection and availability is strongly recommended. Version 09.12.2020 HW: CAM(V100)/(V11+V41) ab Serien Nr: NZ20NOV694 RL4-SY3-R5... -
Page 21: Picture Settings
Note: The OSD menu is only shown when a working video source is connected to the selected video-input of the interface. The following settings are available Contrast Brightness Saturation Position H (horizontal) Position V (vertical) Version 09.12.2020 HW: CAM(V100)/(V11+V41) ab Serien Nr: NZ20NOV694 RL4-SY3-R5... -
Page 22: Interface Operation
➢ Short press of keypad (only if DIP 1 is set to ON) By short pressing the external keypad, the video interfaces witches from the factory video to the front camera input and back to factory video. Version 09.12.2020 HW: CAM(V100)/(V11+V41) ab Serien Nr: NZ20NOV694 RL4-SY3-R5... -
Page 23: Specifications
Video input formats NTSC / PAL RGB-video amplitude 0.7V with 75 Ohm impedance Temperature range -40°C to +85°C Dimensions video-box 118 x 25 x 104 mm (W x H x D) Version 09.12.2020 HW: CAM(V100)/(V11+V41) ab Serien Nr: NZ20NOV694 RL4-SY3-R5... -
Page 24: Faq - Trouble Shooting-Interface Functions
Test camera under natural light outside the garage. flickers. directly into the camera. Camera input picture is Protection sticker not Remove protection sticker from lens. bluish. removed from camera lens. Version 09.12.2020 HW: CAM(V100)/(V11+V41) ab Serien Nr: NZ20NOV694 RL4-SY3-R5... -
Page 25: Technical Support
NavLinkz GmbH. For products bought from other sources, contact your vendor for technical support. NavLinkz GmbH distribution/tech dealer-support Heidberghof 2 D-47495 Rheinberg +49 2843 17595 00 Email mail@navlinkz.de 10R-05 0068 Made in China Version 09.12.2020 HW: CAM(V100)/(V11+V41) ab Serien Nr: NZ20NOV694 RL4-SY3-R5...
