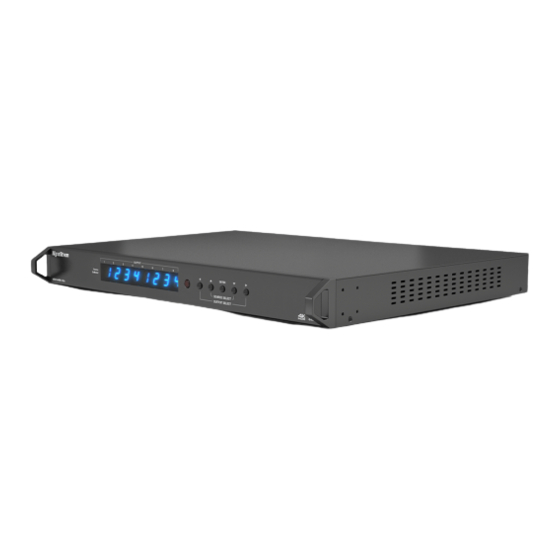

4x8 4K HDR Matrix Kit with 6 HDBaseT/2 HDMI Outputs
MXV-0408-H2A v2
WyreStorm recommends reading through this document in its entirety to become familiar with the product's features prior to starting the
installation process.
IMPORTANT! Installation Requirements
• This product was released in multiple versions which contain different
chassis designs and/or feature sets. Content within this QSG is for the
version 2 of this product.
• Refer to Identifying Product Versions for details.
• Visit the product page to download the latest firmware, document version,
additional documentation, and configuration tools.
• Read through the
guidelines before creating or choosing premade cables.
• While this product supports CEC for the HDMI outputs, WyreStorm cannot
guarantee compatibility with all forms of CEC communication.
Identifying Product Versions
This product as been released under multiple versions which contain either different chassis designs and/or feature sets. Content within this QSG is for the
version 2 of this product. Information on other versions can be found within the matching QSG.
Each product version is identified by a v# after the product number on the product and outer packaging. Note that a version of this product may not contain this
identifier while all versions above v1 will have the version indicated.

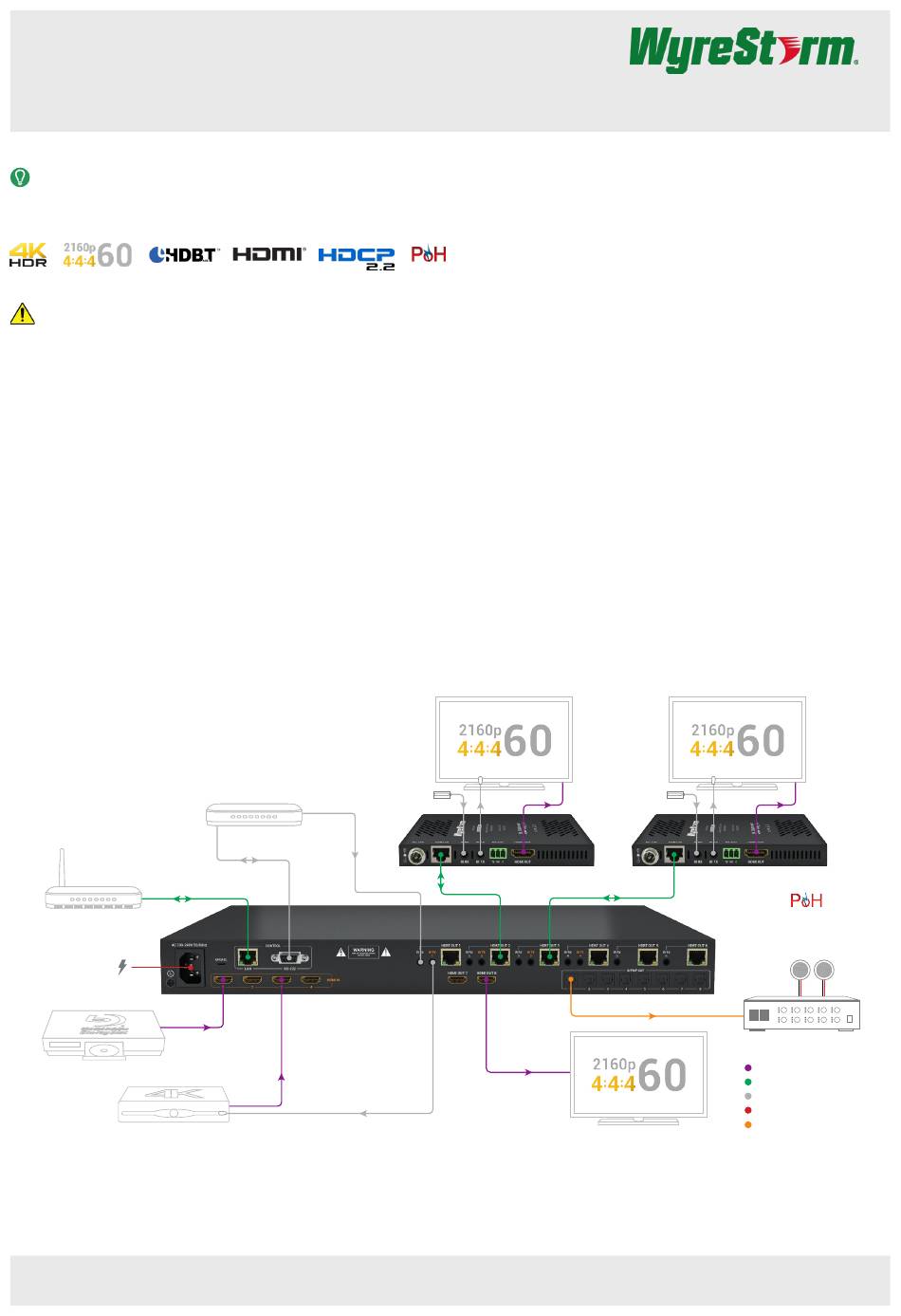

Basic Wiring Diagram
LAN Cat6a/7
Wireless Router
AC Mains
Power
Blu-ray Player
HDMI from source
Satellite Box
Copyright © 2019 WyreStorm Technologies |
MXV-0408-H2A v2 Quickstart Guide | 190517
section for important wiring
Control System
CAB-IR-LINK (Sold Separately)
IR
Matrix Control Only
HDMI from source
IR TX
wyrestorm.com
In the Box
1x MXV-0408-H2A Matrix
1 x AC Power Cord with EU pins
1 x AC Power Cord with US pins
1 x AC Power Cord with UK pins
1 x AC Power Cord with AU pins
1x IR Remote (CR2025 Battery not Included)
4x IR Emitter
6x IR Receiver
2x Matrix Mounting Brackets with screws
1x Quickstart Guide (this document)
HDMI to display
IR RX
IR TX
RXV-35-4K (Receiver)
Cat6a/7
1 of 4
Quickstart Guide
IR RX
IR TX
RXV-35-4K (Receiver)
Cat6a/7
Receivers
powered by
Amplifier
MXV-0408-H2A (Matrix)
KEY
HDMI
HDBaseT / Ethernet
Control
Power
Digital Audio
HDMI to display
UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)
support@wyrestorm.com
HDMI to display
