OPC UA ACCESS:

By Pressing the "OPC UA Access" button from the main window for SW67B45 (Fig. 2) the window "OPC UA Server Access" appears (Fig. 6).
This section is used to define the list of OPC UA variables to read/write.

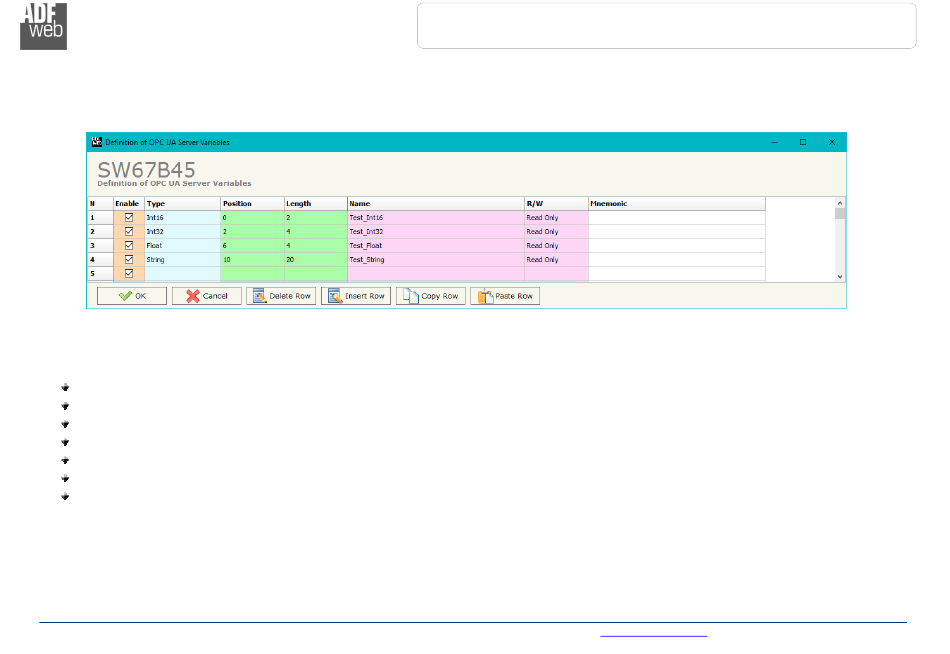

Figure 6: "OPC UA Server Access" window
The means of the checkboxes inside the table are:
If the field "Enable" is checked, the OPC UA variable is enabled;
In the field "Type" the data format of the OPC UA variable is defined;
In the field "Position" the starting byte of the internal memory arrays where getting the value is defined;
In the field "Length" the byte length of the OPC UA variable is defined;
In the field "Name" the name of the OPC UA variable is defined;
In the field "R/W" the access type of the OPC UA variable is defined;
In the field "Mnemonic" a description of the OPC UA variable is defined.
