By clicking on "Modules" button, it is possible to import the modules for the selected PROFINET slave device. The window "Definition Module
and/or Submodules of PROFINET Device" appears (Fig. 5). In the main table it is possible to import the Modules of the PROFINET device in
use. In the properties below, it is possible to set the parameters of the slave. These options depends on the slave in use, refer to the manual
of the PROFINET device.

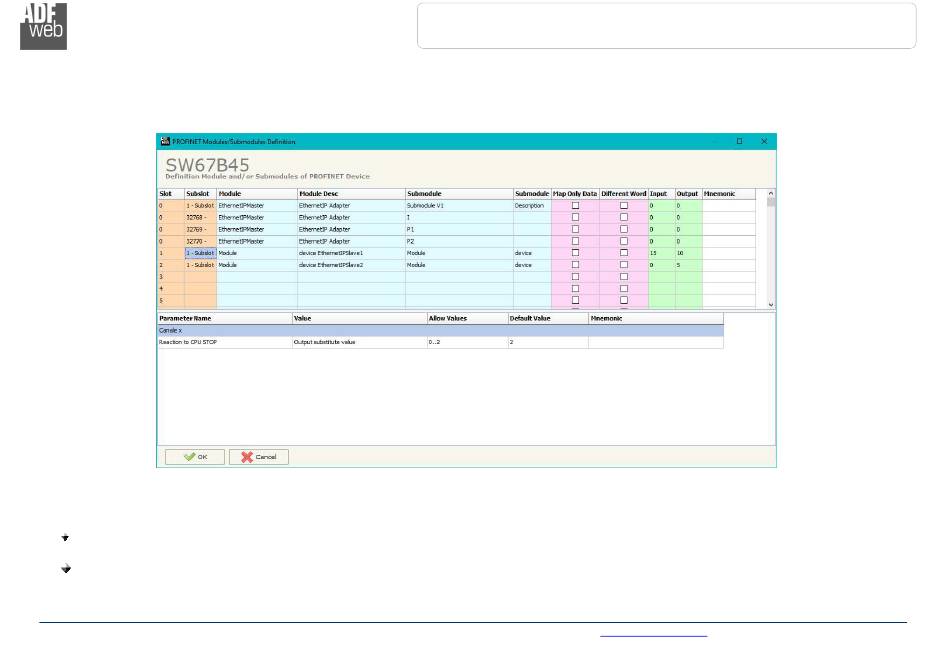

Figure 5: "Definition Module and/or Submodules of PROFINET Device" window
The means of the checkboxes inside the table are:
If the field "Map Only
there will be the status of IN and OUT areas too (1 byte);
If the field "Different
ADFweb.com Srl – IT31010 – Mareno – Treviso
Data" is checked, only the data of the modules are mapped into the OPC UA map. Otherwise, for each module
Word" is checked, the data of the different modules are mapped in different and consecutive words.
