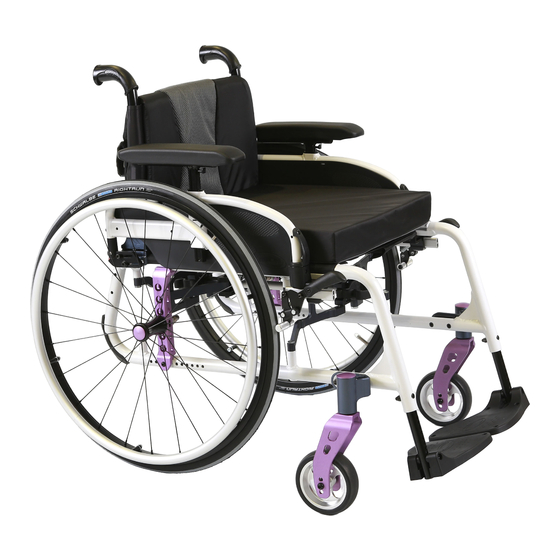

- Page 1 Invacare® Action 5/MyOn HC Rigid version en Medium active wheelchair User Manual This manual MUST be given to the user of the product. BEFORE using this product, this manual MUST be read and saved for future reference.
- Page 2 All rights reserved. Republication, duplication or modification in whole or in part is prohibited without prior written permission from Invacare Corporation. Trademarks are identified by ™and ®. All trademarks are owned by or licensed to Invacare Corporation or its subsidiaries unless otherwise noted.
-
Page 3: Table Of Contents
Contents 3.8 Anti-tipper ........24 3.9 Seat cushion ........25 4 Options . - Page 4 8.3.3 Cleaning ........52 8.3.4 Disinfection ....... . 52 9 Troubleshooting .
-
Page 5: General
For more information about the product, for example Business in the respective countries. product safety notices and product recalls, contact your Invacare distributor. See addresses at the end of this Warranty claims can only be made through the provider document. -
Page 6: Limitation Of Liability
Invacare® Action 5/MyOn HC 1.4 Limitation of Liability 1.6 Service Life Invacare accepts no liability for damage arising from: The expected service life of this product is five years when used daily and in accordance with the safety instructions, •... -
Page 7: Safety
Safety 2 Safety WARNING! Risk due to driving style being unsuitable for the conditions 2.1 Safety information There is a risk of skidding on wet ground, gravel or uneven terrain. This section contains important safety information for the – Always adjust your speed and driving style to protection of the wheelchair user and assistant and for safe, the conditions (weather, surface, individual trouble-free use of the wheelchair. - Page 8 – Do not expose the wheelchair to strong sunlight – Invacare strongly recommend the use of before use. anti-tipper (available as an option) when using – Before usage, check all components that your backposts with additional load.
-
Page 9: Safety Devices
The identification label is attached to the frame of your – Only use combinations with other devices wheelchair and gives the following information: which are allowed by Invacare. Contact your authorized provider for more information. – Before use, read the user manual of each device and check the restrictions. - Page 10 Invacare® Action 5/MyOn HC Snap hook symbols EAN/HMI barcode Depending on the configuration, some wheelchairs may be Maximum user weight used as a seat in a motor vehicle, some may not. Read user manual Tie-down positions where the restraint European conformity...
-
Page 11: Product Overview
Product Overview The wheelchair may be used indoors and outdoors on level 3 Product Overview ground and accessible terrain. 3.1 Product Description Indications This is a medium active wheelchair with fixed and • Considerable to complete impairment of mobility due swing-away leg rests. -
Page 12: Main Parts Of The Wheelchair
Invacare® Action 5/MyOn HC 3.3 Main parts of the wheelchair A Push handle B Backrest C Rear wheel with handrim D Parking brake E Front fork with castor F Leg rests, swiveling G Footrest H Frame I Seat J Armrest... -
Page 13: Parking Brakes
Product Overview 3.4 Parking brakes CAUTION! Risk of pinching or crushing The parking brakes are used to immobilize the wheelchair There may be a very small gap between the rear when it is stationary to prevent it from rolling away. wheel and the parking brake with the risk that you could trap your fingers. -
Page 14: Backrest
Invacare® Action 5/MyOn HC Pull brake 3.5.1 Standard Backrest Cover A standard backrest cover is available for all backrest types. These covers are not adjustable. WARNING! Risk of tipping If the standard backrest cover become slack, the tipping point of your wheelchair is changed for the worse. -
Page 15: Backrest Cover Height
This can cause the chair to tip – Ensure that the bands are set correctly. backwards causing injury. – Therefore, Invacare strongly recommend the IMPORTANT! use of anti-tippers (available as an option) – Do not overtighten the bands; this is to ensure... -
Page 16: Fixed Backrest
3. Alternatively, turn 5 mm Allen key under clockwise to obtain a positive angle. 4. Ensure both adjustments to the desired angle are equal on both sides. Invacare recommends that the backrest angle adjustment is carried out by a qualified technician. 1648855-D... -
Page 17: Folding Backbrace For The Backrest
Product Overview 3.5.6 Folding backbrace for the backrest 3.5.7 Push handles An optional folding backbrace is available to increase the IMPORTANT! rigidity of the backrest on wheelchairs with large back – Always check the push handles before using heights or widths. the wheelchair, as to whether the hand grips are secure, cannot be turned and cannot be CAUTION! -
Page 18: Armrests
Invacare® Action 5/MyOn HC CAUTION! CAUTION! If the knob is not correctly tightened, the push If the knob is not correctly tightened, the push handle could accidentally come off the backrest handle could accidentally come off the backrest tube while pushing it upwards. -
Page 19: Tubular Armrest, Height-Adjustable, Swiveling
Product Overview 3.6.1 Tubular armrest, height-adjustable, swiveling 3.6.2 Armrest, stepless height adjustable, removable Removing Removing 1. Apply the parking brake on both sides. 1. Raise the armrest and pull it upwards out of the holder. 2. Previously press on the locking mechanism A located at the bottom of the armrest vertical bracket (if so Fitting equipped). -
Page 20: Armrest, Height Adjustable, Foldable
Invacare® Action 5/MyOn HC Adjusting the height Removing 1. Loosen the screw B with 5 mm Allen key in the groove 1. Press and hold the armrest release bracket A at the C of the armrest tube. front. 2. Move the armrest upwards or downwards until you 2. -
Page 21: Swing Away Leg Rests
Product Overview Hinging IMPORTANT! Risk of damage to the leg rest mechanism 1. Hinge the leg rest on the front of the frame and swing – Do not place anything heavy, or let children it forwards until it engages. sit on the leg rest. 3.7.2 Swing away, angle adjustable leg rests 3.7.1 Swing away leg rests Swinging outwards... - Page 22 Invacare® Action 5/MyOn HC Hinging • Adjusting height of calf pad: 1. Loosen knob C. 1. Push the leg rest down into its receiver and swing it 2. Adjust to the desired height and firmly tighten the forwards until it engages.
- Page 23 I (3–5 Nm) in the desired position. 3. Tighten the fixing screw B (3–5 Nm) in the desired position. Invacare recommends that foot plate adjustment is carried The distance between the lowest part of the out by a qualified technician.
-
Page 24: Anti-Tipper
– In some configurations, the static stability of the wheelchair may be lower than 10°; Invacare strongly recommends the use of anti-tipper (available as an option). Activating the anti-tipper... -
Page 25: Seat Cushion
When the anti-tipper is correctly activated, the red – We recommend to use an Invacare or Matrx label will be concealed. cushion with anti-slip base cover in order to prevent sliding. -
Page 26: Options
Invacare® Action 5/MyOn HC 4 Options WARNING! Risk of serious injury during transport In a vehicle, a user in his wheelchair must be 4.1 Posture belt secured by a safety belt (3-point belt). A posture belt only is not sufficient as a personal restraint The wheelchair can be equipped with a posture belt. -
Page 27: Tipper Aid
Options Adjusting the length The posture belt has the good length, when there’s just sufficient space for a flat hand between body and belt. 1. Thread the loop F through the fixation on the chair G and then through BOTH plastic buckles H. 1. -
Page 28: Transfer Kit Wheels
Invacare® Action 5/MyOn HC Switching to Transfer kit wheels WARNING! Risk of overturning 1. Activate the anti-tippers with transfer kit wheels on – Ensure that the tipper aid does not project both sides, beyond the external diameter of the rear →... -
Page 29: Passive Illumination
Options 4.5 Passive illumination 4.7 Luggage carrier You can attach reflectors to the rear wheels. Your wheelchair can be fitted with a luggage carrier. When not in use, the luggage carrier can be folded up. 4.6 Cane holder WARNING! Risk of tipping Weight on the carrier changes the tipping behavior of the wheelchair. -
Page 30: Setup
Invacare® Action 5/MyOn HC 5 Setup 5.1 Safety information CAUTION! Risk of injury – Before using the wheelchair, check its general condition and its main functions,8.2 Maintenance Schedule, page 49. Your authorized provider will supply your wheelchair ready for use. Your provider will explain the main functions and ensure that the wheelchair meets your needs and requirements. -
Page 31: Using The Wheelchair
Using the wheelchair 6 Using the wheelchair CAUTION! Risk of crushing There may be a very small gap between the rear 6.1 Safety information wheel and the parking brake with the risk that you could trap your fingers. WARNING! – Ensure that you always propel your wheelchair Risk of accidents using the handrims only. -
Page 32: Braking During Use
Invacare® Action 5/MyOn HC 6.2 Braking during use CAUTION! Risk of burning your hands Whilst you are moving, you brake by transferring force to If you brake for a long time, a lot of frictional the handrim with your hands. -
Page 33: Move To/From The Wheelchair
Using the wheelchair 6.3 Move to/from the wheelchair IMPORTANT! The mudguards and armrests could become WARNING! damaged. Risk of overturning – Never sit on the mudguards or armrests when There is a high risk of overturning during the getting in and out. transfer. -
Page 34: Driving And Steering The Wheelchair
Invacare® Action 5/MyOn HC 6.4 Driving and Steering the Wheelchair Finding the Tipping Point You drive and steer the wheelchair using the handrims. Before driving without an assistant you must find your wheelchair’s tipping point. WARNING! Risk of Tipping The wheelchair can tip backwards if it is not fitted with an antitipper. -
Page 35: Negotiating Steps And Kerbs
Using the wheelchair 6.5 Negotiating steps and kerbs Going down a step with an assistant WARNING! Risk of overturning When negotiating steps you could lose your balance and tip the wheelchair over. – Always approach steps and kerbs slowly and carefully. -
Page 36: Going Up And Down Stairs
Invacare® Action 5/MyOn HC Going up a step with an assistant WARNING! Risk of tipping WARNING! When going down a step without an assistant you Risk of serious injuries could tip over backwards if you cannot control Going up steps and kerbs frequently can result your wheelchair. -
Page 37: Negotiating Ramps And Slopes
Using the wheelchair 6.7 Negotiating Ramps and Slopes WARNING! Risk due to wheelchair being out of control When negotiating slopes or gradients your wheelchair could tip backwards, forwards or sideways. – Always have an assistant behind the wheelchair when approaching long slopes. –... - Page 38 Invacare® Action 5/MyOn HC 1. Bend your upper body forwards and propel the 1. Lean back and carefully allow the handrims to run wheelchair with quick, powerful strokes on both through your hands. You should be able to stop the handrims.
-
Page 39: Stability And Balance When Seated
Using the wheelchair 6.8 Stability and balance when seated 1. Point the front wheels forwards. (To do this, move your wheelchair forwards slightly then back again.) Some everyday activities and actions require you to lean 2. Apply both parking brakes. forwards, sideways or backwards out of the wheelchair. -
Page 40: Transport
Invacare® Action 5/MyOn HC 7 Transport The tension of the seat upholstery can be adjusted to facilitate the seating comfort. Invacare recommends that the tension adjustment is carried out by a 7.1 Safety information qualified technician. WARNING! Folding the backrest... -
Page 41: Lifting The Wheelchair
Transport 7.3 Lifting the wheelchair Unfolding the backrest IMPORTANT! – Never lift the wheelchair by removable parts (armrests, footrests). – Ensure the backrest posts are securely in place. 1. Fold the wheelchair, see chapter 7.2 Folding and unfolding the backrest, page 40. CAUTION! 2. -
Page 42: Transporting The Mobility Device Without Occupant
CAUTION! Risk of injury – If you are unable to fasten your mobility device securely in a transport vehicle, Invacare recommends that you do not transport it. Your mobility device may be transported without restrictions, whether by road, rail or by air. Individual transport... -
Page 43: Transporting The Occupied Wheelchair In A Vehicle
A in a collision or sudden stop. Therefore Invacare strongly transportation kit (optional) have to be fitted on recommends transferring the wheelchair user to the vehicle the wheelchair for such a purpose. - Page 44 Invacare® Action 5/MyOn HC WARNING! IMPORTANT! – Make sure the tie-down points at the – Refer to the user manuals supplied with the wheelchair are not damaged and that the restraint systems. parking brakes are fully functional. – The following illustrations may differ depending –...
- Page 45 Transport symbols (see following figures and section 2.3 Labels and Front side tie-down positions for belt straps: symbols on the product, page 9 ). 1. Using the front and rear straps of the 4-point restraint system, secure the wheelchair to the vehicle mounted rails.
- Page 46 Invacare® Action 5/MyOn HC Rear side tie-down positions for snap hooks: IMPORTANT! – Make sure that the snap hooks are covered with slip resistant material to avoid laterally slipping on the axle. IMPORTANT! – Check the plungers are fully engaged on both sides and located in the same position of the cut-out section of the rail.
- Page 47 Transport Fastening the 3-point passenger restraint system WARNING! – Ensure the 3-point passenger restraint system fits as tightly across the user's body as possible without discomfort and no part is twisted. – Ensure the 3-point passenger restraint system is not held away from the user's body by parts of the wheelchair such as armrests or wheels etc.
- Page 48 Invacare® Action 5/MyOn HC IMPORTANT! – Apply the pelvic belt of the 3-point belt restraint system low across the pelvis so that the angle of the pelvic belt is within the preferred zone (A) of 30° to 75° to the horizontal.
-
Page 49: Maintenance
Maintenance 8 Maintenance weekly monthly annually Check the folding 8.1 Safety information mechanism Check the castors WARNING! Some materials deteriorate naturally over time. Check bolts This could result in damage to wheelchair Check spokes components. – Your wheelchair should be checked by a Check parking brakes qualified technician at least once a year or if it Have wheelchair... - Page 50 Invacare® Action 5/MyOn HC Check that rear wheels are seated correctly 1. Check that the bolts are tight securely and without free play (on the footrest, castor, castor housing, seat cover, 1. Pull on the rear wheel to check that the removable axle sides, backrest, frame, seat module).
-
Page 51: Cleaning And Disinfection
Maintenance Spare parts IMPORTANT! The parking brakes must be reset after replacing All spare parts may be obtained from an Invacare the rear wheels or changing their position. authorized provider. Checking after a heavy collision or blow 8.3 Cleaning and Disinfection IMPORTANT! 8.3.1 General Safety Information... -
Page 52: Cleaning Intervals
Invacare® Action 5/MyOn HC 3. Rinse the parts with warm water. For cleaning and disinfection in clinical or long-term 4. Thoroughly dry the parts with a dry cloth. care environments, follow your in-house procedures. Car polish and soft wax can be used on painted metal 8.3.2 Cleaning Intervals... -
Page 53: Troubleshooting
Troubleshooting 9 Troubleshooting 9.1 Safety information Faults may arise as a result of daily use, adjustments or changing demands on the wheelchair. The table below shows how to identify and repair faults. Some of the actions listed must be carried out by a qualified technician. -
Page 54: Identifying And Repairing Faults
Invacare® Action 5/MyOn HC 9.2 Identifying and repairing faults Fault Possible cause Action Correct tyre pressure, → 11.3 Tyres, page 59 The wheelchair does not Incorrect tyre pressure on one rear wheel travel in a straight line One or more spokes broken Replace faulty spoke(s), →... - Page 55 Troubleshooting Fault Possible cause Action The castor is stiff or stuck Bearings are dirty or faulty Clean the bearings or replace the castor, → qualified technician The wheelchair is very Backrest cover is too tight Loosen the hook and loop strips of the backrest difficult to unfold cover a little, →...
-
Page 56: After Use
Invacare® Action 5/MyOn HC • Inspection 10 After Use • Cleaning and disinfection • Adaptation to the new user 10.1 Storage For detailed information, see 8 Maintenance, page 49 and IMPORTANT! the service manual for this product. Risk of damage to the product Make sure that the user manual is handed over with the –... -
Page 57: Technical Data
Technical Data 11 Technical Data Seat width 305 – 330: 100 kg Maximum user weight Seat width 355 – 530: 11.1 Dimensions and weight 130 kg All dimension an weight specifications refer to a wide range Overall length with leg 845 –... -
Page 58: Maximum Weight Of Removable Parts
Invacare® Action 5/MyOn HC Pivot width 1250 – 1530 mm Range: –15° / +15° Fixed: 90° G Backrest angle Maximum slope angle 7° Adjustable: 90° ; –15°/+15° brake step less 300 – 500 mm H Backrest height * Depends on camber 160 –... -
Page 59: Tyres
Technical Data 11.3 Tyres The size of the tyre is mentioned on the sidewall of the tyre. The change of appropriate tyres must be The ideal pressure depends on the tyre type: carried out by a qualified technician. Tyre Max. pressure CAUTION! 65 psi Pneumatic profiled tyre:... -
Page 60: Environmental Conditions
Invacare® Action 5/MyOn HC Theft and metal detection systems: in seldom cases the materials used in the wheelchair may activate theft and metal detection systems. 11.5 Environmental conditions Operation Storage and transportation Temperature -20 °C to 40 °C -5 °C to 40 °C Relative humidity 20 % to 90 % at 30 °C, not condensing... - Page 61 Notes...
