Axis P1447-LE User Manual

P14 series
Hide thumbs Also See for P1447-LE:
Table of Contents

Advertisement

Quick Links

AXIS P14 Network Camera Series

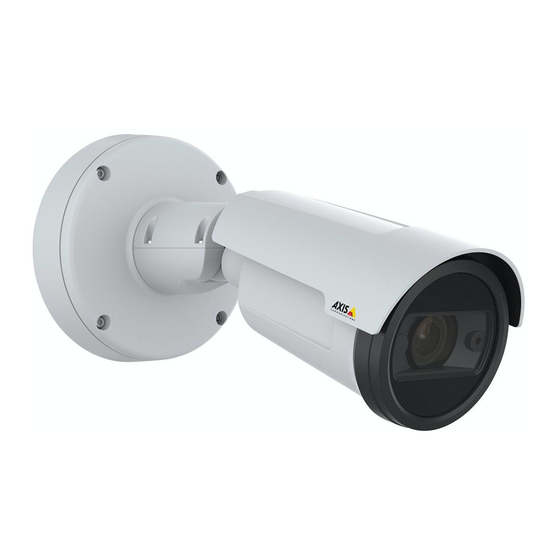

AXIS P1447-LE Network Camera
AXIS P1448-LE Network Camera
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P1447-LE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Axis P1447-LE

Summary of Contents for Axis P1447-LE

  • Page 1 AXIS P14 Network Camera Series AXIS P1447-LE Network Camera AXIS P1448-LE Network Camera User Manual...
  • Page 2 AXIS P14 Network Camera Series About this manual About this manual This User Manual provides information on the product regarding: • Access • Main use cases • Troubleshooting • Specifications Note The User Manual may include more than one product. Part of the content, e.g. some use cases or specifications, may only apply to some of them.
  • Page 3 AXIS P14 Network Camera Series Solution overview Solution overview...
  • Page 4 AXIS P14 Network Camera Series Product overview Product overview I/O connector Audio connector Status LED indicator Control button microSD card slot Network connector Part number (P/N) & Serial number (S/N)

  • Page 5: How To Access The Product From A Browser

    HTTPS connection and then change the password. The device password is the primary protection for the data and services. Axis devices do not impose a password policy as they may be used in various types of installations. To protect your data we recommend that you: •...
  • Page 6 AXIS P14 Network Camera Series How to access the product 3. Click Create login. The password has now been configured.

  • Page 7: About The Product's Built-In Help

    AXIS P14 Network Camera Series Setup Setup About the product's built-in help You can access the built-in help through your product’s webpage. The help provides more detailed information on the product’s features and their settings. Image quality How to select exposure mode There are different exposure mode options in the camera that adjusts aperture, shutter speed, and gain to improve image quality for specific surveillance scenes.

  • Page 8: How To Focus

    AXIS P14 Network Camera Series Setup How to create a privacy mask To create a privacy mask, go to Settings > Privacy mask . How to focus 1. Go to Settings > Image > Focus. 2. Click Autofocus. About remote focus and zoom The remote focus and zoom functionality allows you to make focus and zoom adjustments to your camera from a computer.

  • Page 9: How To Enhance License Plate Recognition

    AXIS P14 Network Camera Series Setup How to enhance license plate recognition To better recognize the license plate of a car passing by the camera, you can apply and adjust a number of things. One option is to use the pixel counter in your camera to set the optimal pixel resolution: 1.

  • Page 10: How To Reduce Noise In Low-Light Conditions

    AXIS P14 Network Camera Series Setup 1. Depending on your product, turn the camera or the 3–axis lens in the camera 90° or 270°. 2. If your product doesn’t rotate the view automatically, go to Settings > Stream > Orientation on the product’s webpage and rotate the view 90°...

  • Page 11: About Overlays

    Note If you use WDR, you may experience some WDR artifacts in the image. Find out more about WDR and how to use it at axis.com/web-articles/wdr How to benefit from IR light in low-light conditions using night mode Your camera uses visible light to deliver color images during the day. As light diminishes, you can set the camera to automatically shift to night mode.

  • Page 12: How To Show A Text Overlay When The Camera Detects Motion

    H.264 or MPEG-4 Part 10/AVC Note H.264 is a licensed technology. The Axis product includes one H.264 viewing client license. Installing additional unlicensed copies of the client is prohibited. To purchase additional licenses, contact your Axis reseller. H.264 can, without compromising image quality, reduce the size of a digital video file by more than 80% compared to the Motion JPEG format and by as much as 50% compared to the MPEG-4 standard.
  • Page 13 AXIS P14 Network Camera Series Setup How to reduce bandwidth and storage Important If you reduce the bandwidth it can result in loss of details in the picture. 1. Go to live view and select H.264. 2. Go to Settings > Stream.

  • Page 14: How To Record Video When The Camera Detects Motion

    12. Click Ok. How to record video when a PIR detector senses motion This example explains how to connect an Axis PIR detector to the camera, and set up the camera to start recording when the detector senses motion. Required hardware •...

  • Page 15: About Applications

    The counter is embedded in the camera which means you do not need a dedicated computer to run the application. AXIS People Counter is intended for retail environments, like stores or shopping malls, or other environments where you want to...
  • Page 16 AXIS P14 Network Camera Series Setup...
  • Page 17 To find the latest firmware and the release notes, go to axis.com/support/firmware 1. Download the latest firmware file to your computer, available free of charge at axis.com/support/firmware...

  • Page 18: Technical Issues, Clues And Solutions

    Axis product. Check all cabling and reinstall the product. Possible IP address conflict The static IP address in the Axis product is used before the DHCP server sets a dynamic address. with another device on the...

  • Page 19: Performance Considerations

    Heavy network utilization due to poor infrastructure affects the bandwidth. • Viewing on poorly performing client computers lowers perceived performance and affects frame rate. • Running multiple AXIS Camera Application Platform (ACAP) applications simultaneously may affect the frame rate and the general performance.

  • Page 20: Led Indicators

    AXIS P14 Network Camera Series Specifications Specifications To find the latest version of the product’s datasheet, go to the product page on axis.com and locate Support & Documentation. LED Indicators Status LED Indication Unlit Connection and normal operation. Green Shows steady green for 10 seconds for normal operation after startup completed.
  • Page 21 AXIS P14 Network Camera Series Specifications 3.5 mm audio connectors (stereo) 1 Tip 2 Ring 3 Sleeve Audio Input Microphone bias voltage Ground Microphone/Line in I/O connector Use the I/O connector with external devices in combination with, for example, motion detection, event triggering, and alarm notifications.
  • Page 22 User Manual Ver. M1.8 AXIS P14 Network Camera Series Date: February 2018 © Axis Communications AB, 2018 Part No. T10116329...

This manual is also suitable for:

P1448-le
