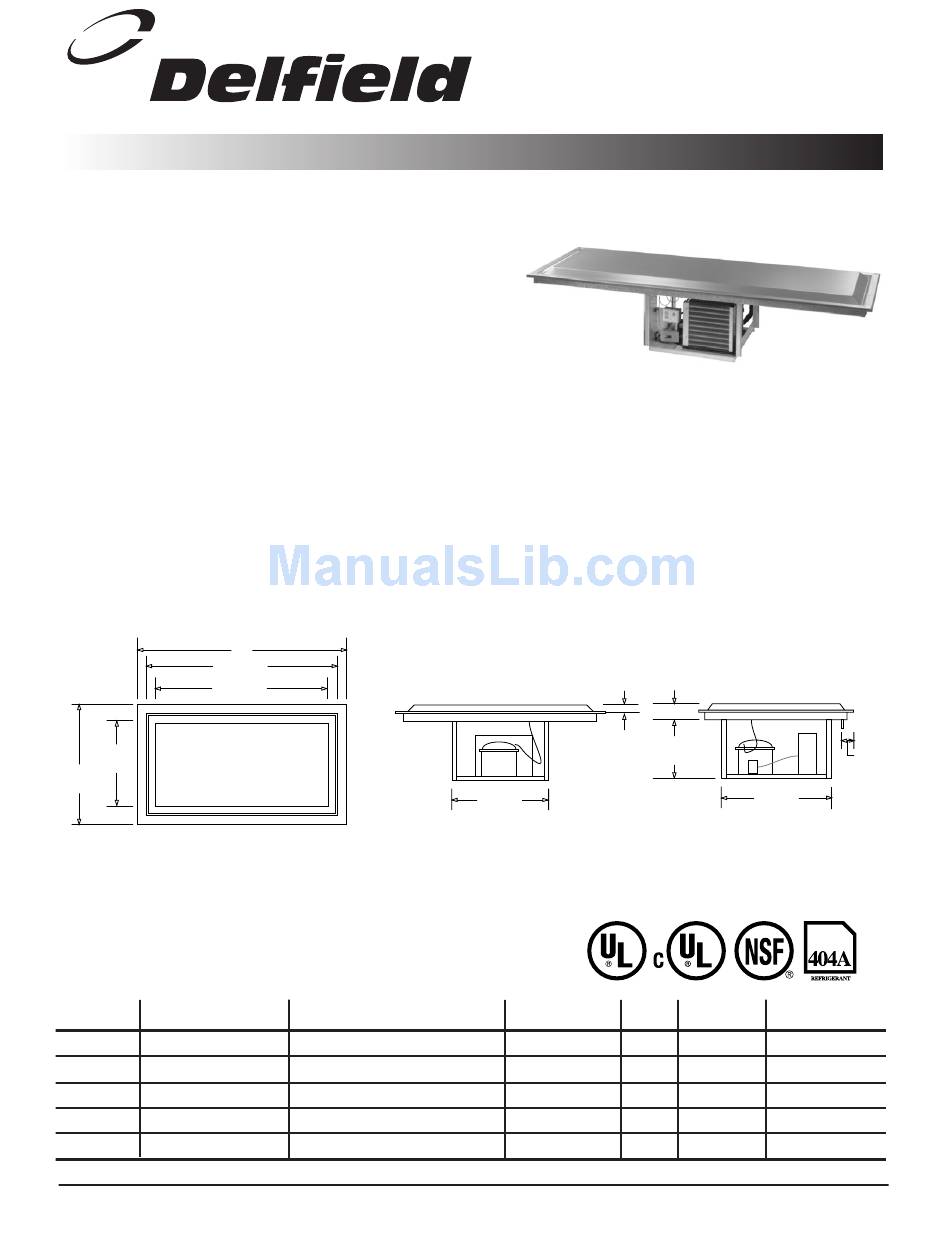

Delfield N8200 Specifications

Short Form Specifications
Top is one-piece, 18-gauge stainless steel. Top has a drain trough
and 2" (5.1cm) overhang around perimeter. Top is elevated 1.68"
(2.5cm) above counter surface. Underside of frost top is sealed
with refrigeration lines and insulated with high-density, closed-cell
polyurethane. Exterior housing is 22-gauge galvanized steel.
Condensing unit is suspended below the frost top on a 16-gauge
steel frame. Condensing unit uses HFC-404a refrigerant. Unit has
an ON/OFF toggle switch, an 8' (2.4m) cord and NEMA 5-15 plug.
Unit has (1) stainless steel louver provided for field installation; cutout
dimensions are 12" x 23.5" (30.5cm x 59.7cm). A second opening at
the rear of the cabinet is provided at installation to allow for proper
air circulation.
Optional Accessories and Modifications
• Single or double service flip-up sneezeguards
• Relocate compressor
• *220V/50 cycle electrical system
*Inclusion of this option will alter electrical specifications of the
unit.
A
A – 4"
A – 10.2cm
A – 8"
A – 20.3cm
18"
45.7cm
25.87"
65.70cm
NOTE: NOT TO SCALE
PLAN VIEW
N8200 MODELS
Mechanical Data–Standard Unit
MODEL
NUMBER A
N8231
31.75" (80.6cm)
N8245
45.62" (115.9cm)
N8259
59.5" (151.1cm)
N8273
73.37" (186.4m)
N8287
87.25" (221.6cm)
The Delfield Company, 980 S. Isabella Rd., Mt. Pleasant, MI 48858, U.S.A. • (800) 733-8821 • Fax (800) 669-0619 • www.delfield.com
Delfield reserves the right to make changes in design or specifications without prior notice. ©2003 The Delfield Company. All rights reserved. Printed in U.S.A.
NOTE: NOT TO SCALE
ELEVATION VIEW
N8200 MODELS
COUNTER CUTOUT
DIMENSIONS
31.00" x 25" (78.1cm x 63.5cm)
44.63" x 25" (113.3cm x 63.5cm)
58.50" x 25" (148.59cm x 63.5cm)
72.38" x 25" (183.84cm x 63.5cm)
86.25" x 25" (219.07cm x 63.5cm)
PROJECT _____________________________________
ITEM NUMBER_________________________________
QUANTITY _______________ DATE ________________
APPROVAL____________________________________
Drop-In Self-Contained Frost Top
Model N8259
1" (2.54CM)
3"/7.6cm
12.75"
32.4cm
21"
53.3cm
VOLTS/HERTZ/
PHASE H.P.
115/60/1 1/4
115/60/1 1/4
115/60/1 1/4
115/60/1 1/3
115/60/1 1/3
N8200
2.37"
6.1cm
22"
55.9cm
NOTE: NOT TO SCALE
RIGHT END VIEW
N8200 MODELS
SHIP
AMPS WEIGHT
7.0 170 lbs/ 77 kg
7.0 185 lbs/ 83 kg
7.0 213 lbs/ 96 kg
8.0 218 lbs/ 98 kg
8.0 224 lbs/ 101 kg
