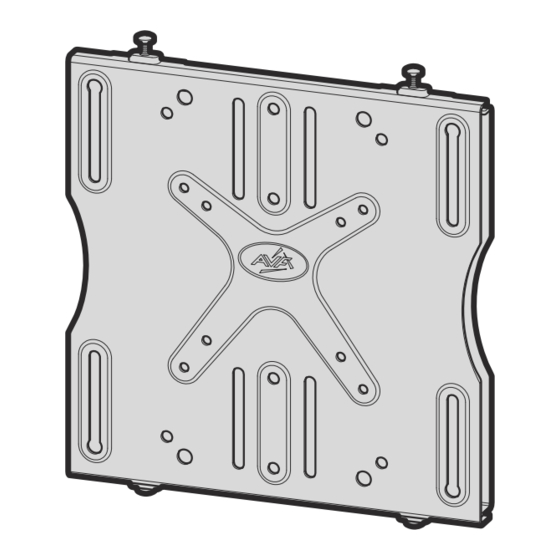

EPL550PBK
Read through ALL instructions before commencing installation.
If you have any questions about this product or issues with installation
contact the customer services help line before returning this product to
the store.
This bracket is intended for use with 42" Maximum televisions weighing
!
Maximum 40kg (88lbs). Use with products heavier than maximum weights
may result in instability causing possible injury.
CUSTOMER SERVICES HELP LINE NUMBER:
01952 670009
AVF Group Ltd. Road 30, Hortonwood Ind Est, Telford, Shropshire, TF1 7YE
42"
40kg
106cm
88lbs
Leaflet No. 463853 rev 00
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for AVF EPL550PBK
Summary of Contents for AVF EPL550PBK
- Page 1 Maximum 40kg (88lbs). Use with products heavier than maximum weights may result in instability causing possible injury. 42" CUSTOMER SERVICES HELP LINE NUMBER: 40kg 01952 670009 106cm 88lbs AVF Group Ltd. Road 30, Hortonwood Ind Est, Telford, Shropshire, TF1 7YE...
- Page 2 Assembly Overview Fit the TV Mounting Plate Fit the Wall Bracket Attach the TV...
- Page 3 It is the responsibility of the installer to ensure that the mounting wall is of a suitable standard and void of any services (eg gas, electricity, water etc). AVF accept no responsibility for any damage or loss caused by installing this product in a sub standard wall.
-
Page 4: Tools Recommended
Tools Recommended Stud Finder Ø10mm (25/64") Ø3mm (1/8") Masonry Wood Boxed Parts... - Page 5 TV Screws, Reducers and Spacers...
- Page 6 Measure the TV fixing holes Width and Height TV Fixing Holes 75 - 400mm 75 - 400mm If width X is greater than 400mm or height Y greater than 400mm STOP installation now and contact the customer help line You are provided with 3 diameters of TV fixing screws, M4, M6 and M8. Determine the screw diameter that fits and remember for step 3.
- Page 7 Preparing the TV Mounting Plate Use the option that fits your TV OPTION 1 OPTION 2 OPTION 3 = 75mm - 200mm = 200mm - 400mm = 200mm - 400mm = 75mm - 200mm = 160mm - 300mm = 240mm - 400mm OPTION 1 200mm MAX 100mm...
- Page 8 OPTION 2 400mm MAX 200mm MIN 300mm MAX 240mm MAX 220mm MIN 160mm MIN...
- Page 9 OPTION 3 400mm MAX 200mm MIN 400mm MAX 340mm MAX 300mm MIN 240mm MIN...
- Page 10 Fitting the TV Mounting Plate No Spacers Spacers For Tvs with flat/unobstructed back For Tvs with irregular/obstructed back WARNING After completing step 3 you will have fittings left over, please keep for future reference...
- Page 11 OPTION 1 OPTION 2 & 3 If required If required Screw diameter dependant If required Attach the bracket to the back of your TV using suitable screw, reducer and spacer combinations.
- Page 14 Attach the TV Attaching TV Levelling...
