- Page 1 Translation of the original user guide PELLENC POWER TOOLS BATTERY 56_145276-B Operating instructions 09/2019 READ THE USER GUIDE CAREFULLY BEFORE USE...
-
Page 3: Table Of Contents
2. SAFETY ........................... 6 2.1. SAFETY MEASURES ASSOCIATED WITH THE USE OF THE TOOL ......... 2.2. SAFETY MEASURES ASSOCIATED WITH BATTERY USE ............2.3. SAFETY MEASURES WHEN USING THE "PELLENC" CHARGER ..........2.4. SAFETY SIGNAGE .......................... 3. DESCRIPTION AND TECHNICAL CHARACTERISTICS ............9 3.1. - Page 4 PELLENC POWER TOOLS BATTERY 750 56_145276-B 10. WARRANTIES ........................25 10.1. GENERAL WARRANTIES ......................10.1.1. STATUTORY WARRANTY ......................10.1.2. COMMERCIAL WARRANTYPELLENC .................... 10.1.3. PAID AFTER-SALES SERVICE ...................... 11. COMPLIANCE STATEMENTS ................... 28 11.1. "EC" DECLARATION OF CONFORMITY: 750 BATTERY ............
-
Page 5: Introduction
56_145276-B 1. INTRODUCTION Dear Customer, Thank you for purchasing your Pellenc power tools battery 750. Correctly used and maintained, this tool will give a satisfactory performance for many years. Warning Your device contains numerous recoverable or recyclable materials. Return it to your dealer or, failing this, to an approved servicing centre to be treated. -
Page 6: Safety
• Battery alone: product that is classified as class 9, UN3480. 14. Use of a battery other than that provided by Pellenc SA is dangerous (risk of serious injury). If a different battery is used, Pellenc SA cannot be held responsible for any consequences. -
Page 7: Safety Measures When Using The "Pellenc" Charger
In the event of contact with eyes, seek professional medical help. The liquid leaking from the batteries can cause irritations or burns. 19. Pellenc power tools must only be used with the battery units designed for the purpose. Use of other battery units can present a risk of injury and fire. -
Page 8: Safety Signage
PELLENC POWER TOOLS BATTERY 750 56_145276-B 2.4. SAFETY SIGNAGE 750 battery Protection rating IP54 (Allover protection against dust and water spray). Read the user guide. This equipment must be used at a temperature of between -5° and +35°C. Lithium-ion battery. -
Page 9: Description And Technical Characteristics

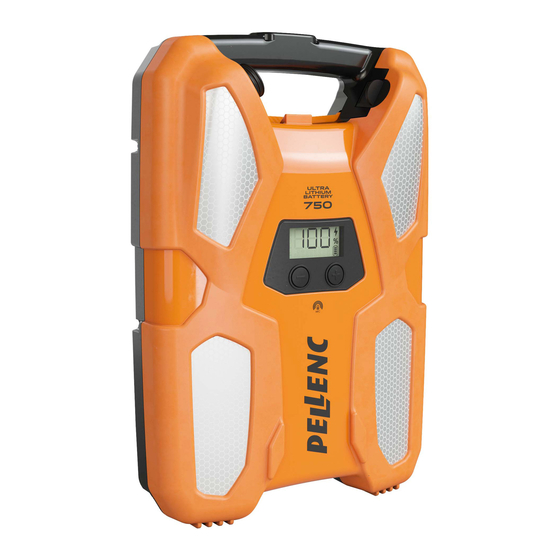

PELLENC POWER TOOLS BATTERY 750 56_145276-B 3. DESCRIPTION AND TECHNICAL CHARACTERISTICS 3.1. TECHNICAL CHARACTERISTICS - BATTERY Characteristics of 750 battery Rated battery voltage 43.2 V Type of battery 12 times 5 elements included in 1 pack Battery capacity 17.25 Ah... - Page 10 PELLENC POWER TOOLS BATTERY 750 56_145276-B HMI (Human-Machine Interface) HMI navigation buttons 10. Consumption statistics menu 11. Maintenance menu 12. Time counter menu 13. Defect indicator 14. 3-Character display 15. Power supply indicator 16. Charging level 17. 8-Character display Charger 18.
-
Page 11: Commissioning
PELLENC POWER TOOLS BATTERY 750 56_145276-B 4. COMMISSIONING 4.1. CHARGING THE BATTERY Important The battery must be fully charged (100 %) before being using for the first time in the new season. When the battery is discharged, the tool stops automat- ically. - Page 12 PELLENC POWER TOOLS BATTERY 750 56_145276-B The charger LED (19) turns red. Connect the charging cord (18) to the battery's charging connector (4). The battery beeps twice when it recognizes the charger, the charger light turns green blinking green after a few seconds The battery is charging: The charger LED lights up green and flashes.
-
Page 13: Hmi Display
PELLENC POWER TOOLS BATTERY 750 56_145276-B Charging is complete when the message 100% ap- pears on the display. The charger LED lights up green and is static. All segments are flashing on the indicator. Note If the segments continue to flash in sequence de- spite 100% being displayed, then charging is not yet complete. -
Page 14: Battery Orientation
PELLENC POWER TOOLS BATTERY 750 56_145276-B 4.3. BATTERY ORIENTATION The HMI display automatically orients itself based on the position of the battery. The push-button is also accessible at the bottom on the right because it is located in both positions. -
Page 15: Using The Tool
PELLENC POWER TOOLS BATTERY 750 56_145276-B 5. USING THE TOOL 5.1. CHOICE OF MENU Reference number illustration Menu type Operating time menu, refer to Section 5.3, “Useful life” Maintenance menu, refer to Section 6.1, “Maintenance” Statistics menu, refer to Section 6.2, “Statistics”... -
Page 16: Selection Of The Tool Number
PELLENC POWER TOOLS BATTERY 750 56_145276-B 5.2. SELECTION OF THE TOOL NUMBER It is possible to see the data corresponding to each tool connected to the battery in each of the "TOOL" tools menus. For this, once you are in the menu (shown as in the illustrations), select the number (from 1 to 30) corresponding to the type of tool you want to have information about using the (+) button. -
Page 17: Useful Life
PELLENC POWER TOOLS BATTERY 750 56_145276-B 5.3. USEFUL LIFE Reference number illustration Duration of use menu Partial useful life of the battery with the possibility of a reset (RTZ) Total useful life of the battery Partial useful life of each tool family on the battery with the possibility of a... -
Page 18: Service
PELLENC POWER TOOLS BATTERY 750 56_145276-B 6. SERVICE 6.1. MAINTENANCE Reference number illustration Maintenance menu Battery software version. Time in use since last revision Time in use till next revision Total voltage of the battery Min. cell voltage Max. cell voltage... -
Page 19: Statistics
PELLENC POWER TOOLS BATTERY 750 56_145276-B 6.2. STATISTICS Reference number illustration Statistics menu Max. power generated by the battery (RTZ) Average power over the useful life of the battery (RTZ) Max. power requested by a tool family on the battery (RTZ) -
Page 20: Misc. Maintenance
PELLENC POWER TOOLS BATTERY 750 56_145276-B 6.3. MISC. MAINTENANCE 6.3.1. MISCELLANEOUS MAINTENANCE BATTERY The battery must not be connected to the charger or the tool, the switch must be in the off position. Disconnect the battery before cleaning. Disconnect the battery before cleaning. Clean the battery casing with a soft cloth and water. -
Page 21: Incidents And Troubleshooting
PELLENC POWER TOOLS BATTERY 750 56_145276-B 7. INCIDENTS AND TROUBLESHOOTING 7.1. SUMMARY OF HMI DISPLAY AND BEEP MESSAGES Normal messages Using the tool Battery capacity (0 to 100%) The segments of the battery indi- cate the battery charge level. With 1 beep per minute... -
Page 22: Battery Replacement
PELLENC POWER TOOLS BATTERY 750 56_145276-B Note Message DEF TOOL + number: Signals a tool defect. When an tool error message appears on the battery, the tool stops until the defect is resolved. To find out what the defect is refer to the tool instructions or contact your authorized distributor. -
Page 23: Storage And Transport
PELLENC POWER TOOLS BATTERY 750 56_145276-B 8. STORAGE AND TRANSPORT 8.1. BATTERY STORAGE CONDITIONS • Store the “battery” unit and charger away from heat, dust and humidity, after turning off the battery using one of the on/off. buttons Never store the battery in an ambient temperature of more than +45 °C. -
Page 24: Accessories And Consumables
PELLENC POWER TOOLS BATTERY 750 56_145276-B 9. ACCESSORIES AND CONSUMABLES 9.1. TABLE OF THE LIST OF ACCESSORIES AND CONSUMABLES Spare parts / accessories reference CB5022 Charger 57230 CB5022HV charger 57256 Comfort harness 57183 Lightweight harness 57257 Quick connector adapter 57368... -
Page 25: Warranties
The warranty is fully integral to the product sold by PELLENC. 10.1.2.1.2. SPARE PARTS The commercial warranty also covers original PELLENCspare parts, excluding labour and to the exclusion of certain... -
Page 26: Paid After-Sales Service
PELLENC Products are guaranteed under the commercial warranty as from delivery to the customer for a period of two (2) years for products connected to a PELLENC battery, and for a period of one (1) year for other PELLENC products. - Page 27 Paid after-sales service also covers original PELLENC spare parts, excluding labour and outside the legal and commercial warranty period. In case of replacement of original PELLENC spare parts in the context of after-sales service, said latter are covered by a warranty of one year as from the installation date.
-
Page 28: Compliance Statements
PELLENC POWER TOOLS BATTERY 750 56_145276-B 11. COMPLIANCE STATEMENTS 11.1. "EC" DECLARATION OF CONFORMITY: 750 BATTERY MANUFACTURER PELLENC ADDRESS Quartier Notre-Dame 84120 Pertuis (France) ENTITY AUTHORIZED TO COMPILE THE TECHNICAL FILE PELLENC ADDRESS Quartier Notre-Dame - 84120 Pertuis (France) We hereby declare that the machine referred to below as:... - Page 32 PELLENC Quartier Notre Dame - 84120 Pertuis (France)
