- Page 1 Translation of the original user guide PELLENC POWER TOOL BATTERY 1200 / 1500 56_155210-A Operating instructions 05/2020 READ THE USER GUIDE CAREFULLY BEFORE USE...
-
Page 3: Table Of Contents
PELLENC POWER TOOL BATTERY 1200 / 1500 56_155210-A TABLE OF CONTENTS 1. INTRODUCTION ........................5 2. SAFETY ........................... 6 2.1. SAFETY MEASURES ASSOCIATED WITH THE USE OF THE TOOL ......... 2.2. SAFETY MEASURES ASSOCIATED WITH BATTERY USE ............2.3. SAFETY MEASURES WHEN USING THE "PELLENC" CHARGER .......... - Page 4 PELLENC POWER TOOL BATTERY 1200 / 1500 56_155210-A 10.1. GENERAL WARRANTIES ......................10.1.1. STATUTORY WARRANTY ......................10.1.2. COMMERCIAL WARRANTYPELLENC .................... 10.1.3. PAID AFTER-SALES SERVICE ...................... 11. COMPLIANCE STATEMENTS ................... 29 11.1. "EC" DECLARATION OF CONFORMITY: 1200 BATTERY ............11.2. "EC" DECLARATION OF CONFORMITY: 1500 BATTERY...
-
Page 5: Introduction
56_155210-A 1. INTRODUCTION Dear Customer, Thank you for purchasing your PELLENC Power Tool battery 1200 / 1500. Correctly used and maintained, this tool will give a satisfactory performance for many years. Warning Your device contains numerous recoverable or recyclable materials. Return it to your dealer or, failing this, to an approved servicing centre to be treated. -
Page 6: Safety
• Battery alone: product that is classified as class 9, UN3480. 14. Use of a battery other than that provided by Pellenc SA is dangerous (risk of serious injury). If a different battery is used, Pellenc SA cannot be held responsible for any consequences. -
Page 7: Safety Measures When Using The "Pellenc" Charger
In the event of contact with eyes, seek professional medical help. The liquid leaking from the batteries can cause irritations or burns. 19. Pellenc power tools must only be used with the battery units designed for the purpose. Use of other battery units can present a risk of injury and fire. - Page 8 PELLENC POWER TOOL BATTERY 1200 / 1500 56_155210-A This equipment must be used at a temperature of between -5° and +35°C. Lithium-ion battery. At the end of its life, the battery must be returned to the authorized distributor from whom it was purchased to be recycled in accordance with waste regulations.
-
Page 9: Description And Technical Characteristics
PELLENC POWER TOOL BATTERY 1200 / 1500 56_155210-A 3. DESCRIPTION AND TECHNICAL CHARACTERISTICS 3.1. TECHNICAL CHARACTERISTICS - BATTERY Battery 1200 1500 Rated battery voltage 43.62 V 43.2 V 12 times 8 elements 12 times 10 elements Type of battery included in 1 pack... -
Page 10: Description

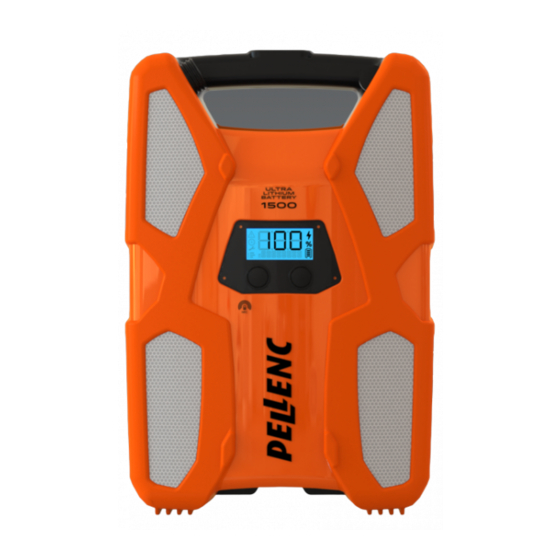

PELLENC POWER TOOL BATTERY 1200 / 1500 56_155210-A 3.3. DESCRIPTION Battery Picker power connector Button for locking/unlocking the battery on its sup- port Charge connector cap Charging connector Reflective surfaces Lower push-button Upper push-button Adaptable cable ref.: 133804 HMI (Human-Machine Interface) HMI navigation buttons 10. - Page 11 PELLENC POWER TOOL BATTERY 1200 / 1500 56_155210-A Charger 18. Charging connector 19. Indicator light 20. Power cord...
-
Page 12: Commissioning
PELLENC POWER TOOL BATTERY 1200 / 1500 56_155210-A 4. COMMISSIONING 4.1. CHARGING THE BATTERY The battery must be fully charged (100 %) before being using for the first time in the new season. Battery When the battery is discharged, the tool stops automat- ically. - Page 13 PELLENC POWER TOOL BATTERY 1200 / 1500 56_155210-A The charger LED (19) turns red. Connect the charging cord (18) to the battery's charging connector (4). The battery beeps twice when it recognizes the charger, the charger light turns green blinking green after a few seconds The battery is charging: The charger LED lights up green and flashes.
- Page 14 PELLENC POWER TOOL BATTERY 1200 / 1500 56_155210-A Charging is complete when the message 100% ap- pears on the display. The charger LED lights up green and is static. All segments are flashing on the indicator. Note If the segments continue to flash in sequence de- spite 100% being displayed, then charging is not yet complete.
-
Page 15: Battery Orientation
PELLENC POWER TOOL BATTERY 1200 / 1500 56_155210-A 4.2. BATTERY ORIENTATION The HMI display automatically orients itself based on the position of the battery. The push-button is also accessible at the bottom on the right because it is located in both positions. -
Page 16: Night-Time Signalisation Mode
PELLENC POWER TOOL BATTERY 1200 / 1500 56_155210-A The + and - buttons on the battery are used for navigating in the HMI Press on - for 1 second to open the MENU. Press on - once to select the following MENU. -
Page 17: Using The Tool
PELLENC POWER TOOL BATTERY 1200 / 1500 56_155210-A 5. USING THE TOOL 5.1. CHOICE OF MENU... -
Page 18: Selection Of The Tool Number
PELLENC POWER TOOL BATTERY 1200 / 1500 56_155210-A 5.2. SELECTION OF THE TOOL NUMBER It is possible to see the data corresponding to each tool connected to the battery in each of the "TOOL" tools menus. For this, once you are in the menu (shown as in the illustrations), select the number (from 1 to 30) corresponding to the type of tool you want to have information about using the (+) button. -
Page 19: Useful Life
PELLENC POWER TOOL BATTERY 1200 / 1500 56_155210-A 5.3. USEFUL LIFE Partial useful life of the battery with the possibility of a reset (RTZ) Total useful life of the battery Partial useful life of each tool family on the battery with the possibility of a reset (RTZ) -
Page 20: Service
PELLENC POWER TOOL BATTERY 1200 / 1500 56_155210-A 6. SERVICE 6.1. MAINTENANCE Battery software version. Time in use since last revision Time in use till next revision Total voltage of the battery min. cell voltage max. cell voltage Software version of the last tool used... -
Page 21: Statistics
PELLENC POWER TOOL BATTERY 1200 / 1500 56_155210-A 6.2. STATISTICS Max. power generated by the battery (RTZ) Average power over the useful life of the battery (RTZ) Max. power requested by a tool family on the battery (RTZ) Average power requested by a tool family on the battery (RTZ) Note To perform a reset (RAZ) press and hold +. -
Page 22: Miscellaneous Maintenance
PELLENC POWER TOOL BATTERY 1200 / 1500 56_155210-A 6.3. MISCELLANEOUS MAINTENANCE Warning Do not insert metal objects into the air vents of the battery, which can cause a short circuit and/or a fire. 6.3.1. MISCELLANEOUS MAINTENANCE BATTERY The battery must not be connected to the charger or the tool, the switch must be in the off position. Disconnect the battery before cleaning. -
Page 23: Incidents And Troubleshooting
PELLENC POWER TOOL BATTERY 1200 / 1500 56_155210-A 7. INCIDENTS AND TROUBLESHOOTING 7.1. SUMMARY OF HMI DISPLAY AND BEEP MESSAGES Normal messages Using the tool Battery capacity (0 to 100%) The segments of the battery indi- cate the battery charge level. -
Page 24: Battery Replacement
PELLENC POWER TOOL BATTERY 1200 / 1500 56_155210-A Note Message DEF TOOL + number: Signals a tool defect. When an tool error message appears on the battery, the tool stops until the defect is resolved. To find out what the defect is refer to the tool instructions or contact your authorized distributor. -
Page 25: Storage And Transport
PELLENC POWER TOOL BATTERY 1200 / 1500 56_155210-A 8. STORAGE AND TRANSPORT 8.1. STORAGE AND TRANSPORT • Store the “battery” unit and charger away from heat, dust and humidity, after turning off the battery using one of the on/off. buttons Never store the battery in an ambient temperature of more than +45 °C. -
Page 26: Warranties
The warranty is fully integral to the product sold by PELLENC. 10.1.2.1.2. SPARE PARTS The commercial warranty also covers original PELLENCspare parts, excluding labour and to the exclusion of certain... -
Page 27: Paid After-Sales Service
PELLENC Products are guaranteed under the commercial warranty as from delivery to the customer for a period of two (2) years for products connected to a PELLENC battery, and for a period of one (1) year for other PELLENC products. - Page 28 Paid after-sales service also covers original PELLENC spare parts, excluding labour and outside the legal and commercial warranty period. In case of replacement of original PELLENC spare parts in the context of after-sales service, said latter are covered by a warranty of one year as from the installation date.
-
Page 29: Compliance Statements
PELLENC POWER TOOL BATTERY 1200 / 1500 56_155210-A 11. COMPLIANCE STATEMENTS 11.1. "EC" DECLARATION OF CONFORMITY: 1200 BATTERY MANUFACTURER PELLENC ADDRESS Quartier Notre-Dame 84120 Pertuis (France) ENTITY AUTHORIZED TO COMPILE THE TECHNICAL FILE PELLENC ADDRESS Quartier Notre-Dame - 84120 Pertuis... -
Page 30: Ec" Declaration Of Conformity: 1500 Battery
PELLENC POWER TOOL BATTERY 1200 / 1500 56_155210-A 11.2. "EC" DECLARATION OF CONFORMITY: 1500 BATTERY MANUFACTURER PELLENC ADDRESS Quartier Notre-Dame 84120 Pertuis (France) ENTITY AUTHORIZED TO COMPILE THE TECHNICAL FILE PELLENC ADDRESS Quartier Notre-Dame - 84120 Pertuis (France) We hereby declare that the machine referred to below as:... - Page 32 PELLENC Quartier Notre Dame - 84120 Pertuis (France)
