INSTALLATION MANUAL
Nube
falmecau.com

Advertisement

loading

Related Manuals for FALMEC Nube

Summary of Contents for FALMEC Nube

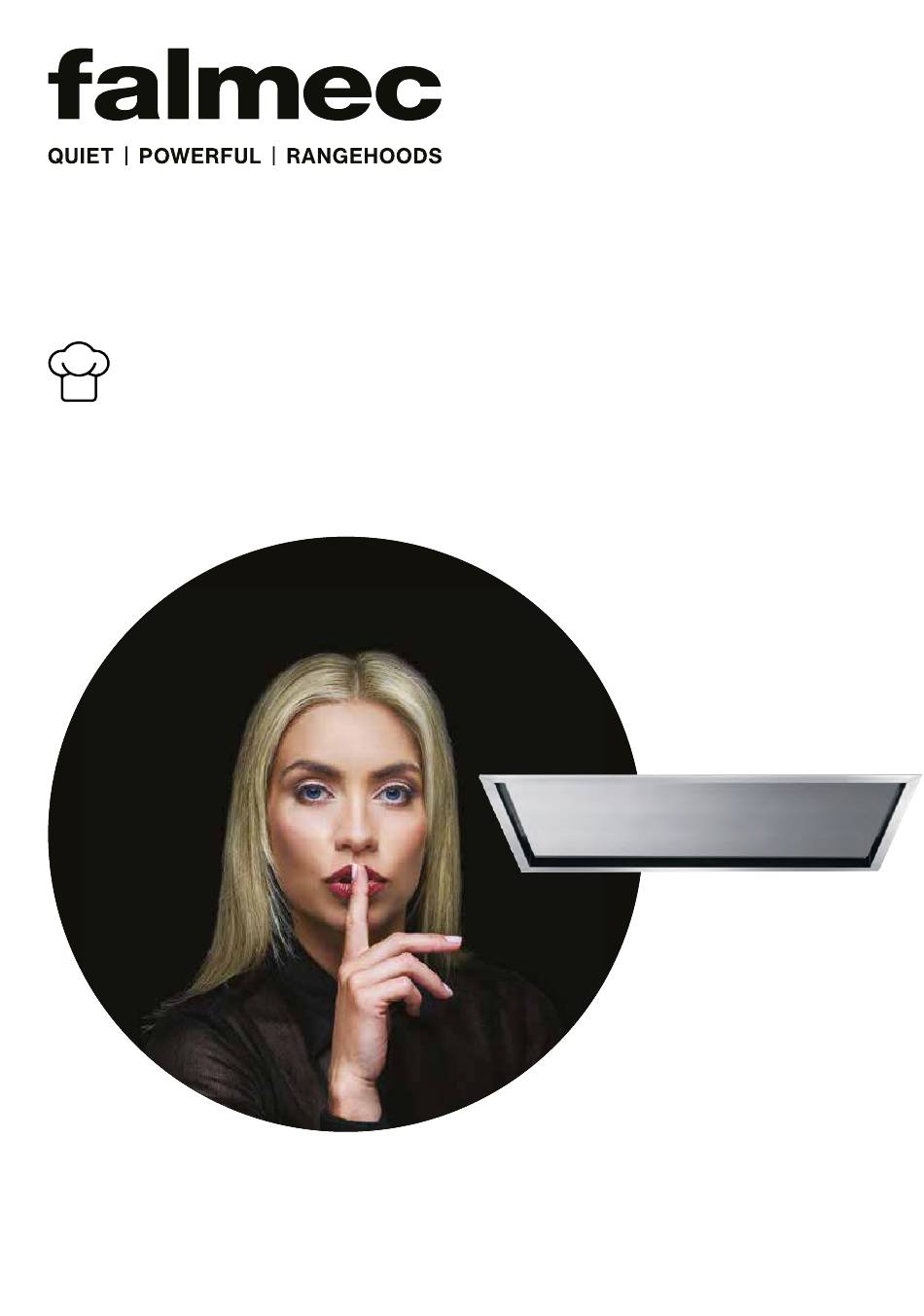

  • Page 1 INSTALLATION MANUAL Nube falmecau.com...
  • Page 2 CONGRATULATIONS Congratulations and thank you for choosing a Falmec rangehood. To avoid the risks that are always present when you use an electrical appliance it is important that the rangehood is installed correctly and that you read the safety in- structions carefully to avoid misuse and ha- zards.
  • Page 3 INSTALLATION WITH MOTOR ON THE HOOD NUBE: 32 KG HOLE SIZES...
  • Page 4 INSTALLATION WITH SLIM MOTOR NUBE: 31 KG HOLE SIZES...
  • Page 5 INSTALLATION WITH CONVEYOR KIT AND REMOTE MOTOR NUBE: 24 KG HOLE SIZES...
  • Page 6 INSTALLATION WITH REMOTE MOTOR NUBE: 22 KG HOLE SIZES...
  • Page 7 MEASUREMENTS FOR INSTALLATION ø9 mm...

  • Page 8: Preliminary Operations

    PRELIMINARY OPERATIONS Cutting the plasterboard (1), inserting the supporting frame (2). √ double adhesive...
  • Page 9 PRELIMINARY OPERATIONS Fixing the mandatory safety chains to the ceiling. Ø9...
  • Page 10 PRELIMINARY OPERATIONS PRELIMINARY OPERATIONS Open the panel (4) and remove the filters (5).
  • Page 11 MOTOR ON HOOD INSTALLATION Remove the flange from the hood (1) and the motor (2). If the air outlet is upward, see (3). For other directions, see (4) and (5). INLET...
  • Page 12 MOTOR ON HOOD INSTALLATION Side movement of the air exhaust OUTLET 180° 90°...
  • Page 13 MOTOR ON HOOD INSTALLATION Fixing the motor support brackets (6).
  • Page 14 MOTOR ON HOOD INSTALLATION Fitting the non-return valve (7). Positioning the motor on the support frame (8).
  • Page 15 MOTOR ON HOOD INSTALLATION Fitting the suction pipe and electrical connection (9). 1100 ø 15 150mm...
  • Page 16 SLIM MOTOR INSTALLATION Remove the flange from the hood (1), detach the pre-cut elements and position the SLIM motor bracket (2).
  • Page 17 SLIM MOTOR INSTALLATION Fixing the motor support brackets (3). S L I M (x4) (x8)
  • Page 18 SLIM MOTOR INSTALLATION Positioning the motor on the support frame (4). Fitting the suction pipe and electrical connection (5). SLIM...
  • Page 19 INSTALLATION WITH CONVEYOR KIT AND REMOTE MOTOR Remove the flange from the hood (1). Fixing the brackets onto the rectangular connection (2). (x4) (x4) (x8) (x8)
  • Page 20 INSTALLATION WITH CONVEYOR KIT AND REMOTE MOTOR Positioning the rectangular connection on the support frame (3). Fitting the suction pipe (4).
  • Page 21 INSTALLATION WITH REMOTE MOTOR Fitting the non-return valve (1). 150m m 200 mm KACL. 396 O P T I O N A L N O V A L V E...
  • Page 22 INSTALLATION WITH REMOTE MOTOR Fixing the suction pipe (3). REMOTE EXTERNAL MOTOR REMOTE MOTOR...

  • Page 23: Final Operations

    FINAL OPERATIONS Final operations: Passing the chains through, passing the control cable through. (x2)
  • Page 24 FINAL OPERATIONS Closing the holding brackets. Disassembly! O K !
  • Page 25 FINAL OPERATIONS Fixing the motor (or rectangular connection) (3), electrical connection and tensioning the safety chains (4). (x4) (x8) (x8)
  • Page 26 FINAL OPERATIONS Repositioning filters and piston and closing the hood...

  • Page 27: Safety Instructions And Warnings

    SAFETY INSTRUCTIONS If the equipment is sold or transferred to another person, make sure that the booklet is also supplied so that the new user can be made aware of the hood's operation and relative AND WARNINGS warnings. After the stainless steel hood has been installed, it will need to be cleaned to remove any residues remaining from the protection adhesive as well as any grease and oil stains which, if Installation operations are to be carried out by skilled and qualiied in- not removed, can cause irreversible damage to the hood surface.

  • Page 28: Operation

    OPERATION ELECTRICAL CONNECTION (only intended for qualii ed personnel) WHEN TO TURN ON THE HOOD? Switch on the hood at least one minute before starting to cook to direct fumes and vapours Disconnect the equipment from electrical mains power supply before carry- towards the suction surface.

  • Page 29: Maintenance

    METAL ANTI-GREASE FILTERS RADIO CONTROL CODE CHANGE It is advised to frequently wash the metal ilters (at least once a month) leaving them to With only one radio control, go directly to point 2. soak in boiling water and cleaning solution for 1 hour, taking care not to bend them. With several radio controls in the same room, a new code can be created by following the Do not use corrosive, acid or alkaline detergents.

  • Page 30: Warranty

    All FALMEC rangehoods come with a 5 year parts and labour warranty. PR Kitchens & Washrooms will correct, free of charge, any defects in material or workmanship for the Outdoor BBQ models MUST only have the specified 2010 m3/hr motor installed in period of 5 years, subject to the terms of our warranty stated below.
  • Page 31 NOTE - NOTES...
  • Page 32 PR Kitchen & Washroom Systems NZ P.O. Box 53171, Auckland Airport Auckland — 2150 New Zealand +09 964 0400 info@prks.com.nz Falmec S.p.A via dell’Artigianato, 42 z.i. 31029 Vittorio Veneto Treviso — Italy falmec.com Codice / Code Matricola / Serial Number...
