www.Berner.com

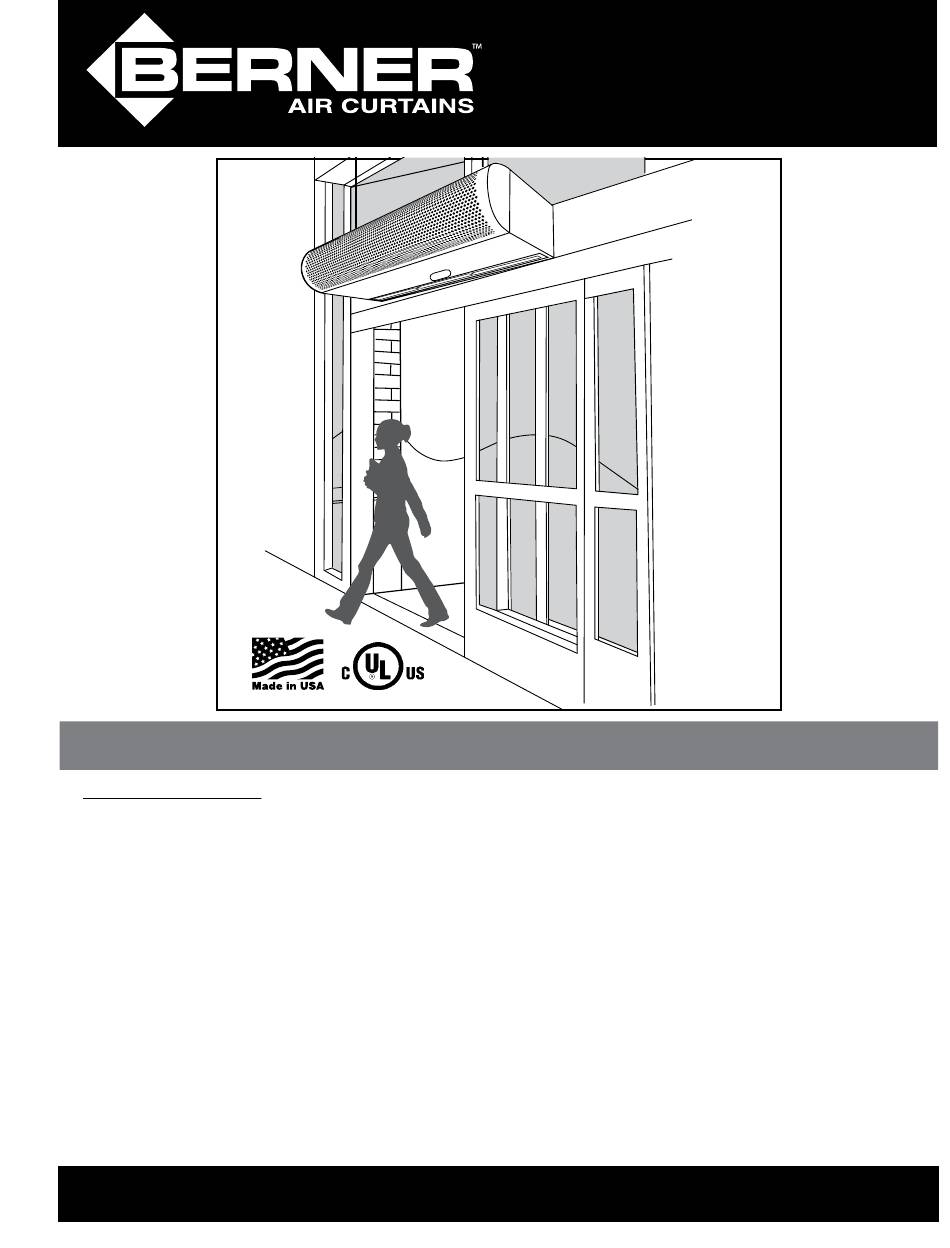

Installation & Maintenance Instructions
TABLE OF CONTENTS
I. UNCRATING............................................................................................................................................................ ........................................................ 2
II. GENERAL MOUNTING INSTRUCTIONS ................................................................................................................................. ................................... 4
III. WALL MOUNTING ...................................................................................................................................................................................................... 5
IV. SUSPENDED MOUNTING ....................................................................................................................................... ................................................... 5
V. ELECTRICAL CONNECTIONS ..................................................................................................................................................................................... 6
VI. FIELD CONNECTIONS ................................................................................................................................................................................................ 7
VII. OPERATING INSTRUCTIONS .................................................................................................................................................................................... 7
INTELLISWITCH™
QUICK START OPERATION ........................................................................................................................................................................... 10
FAQ's (FREQUENTLY ASKED QUESTIONS) ................................................................................................................................................. 12
VIII. MAINTENANCE AND CLEANING ............................................................................................................................................................................ 8
IX. SERVICE ............................................................................................................................................................... ........................................................ 9
X. TROUBLESHOOTING ................................................................................................................................................................................................. 14
A. SERIAL NETWORK CONNECTION (PREVIOUSLY MASTER / SLAVE CONNECTION) ..................................................................................15
B. REMOTE MOUNTED DISPLAY FACEPLATE ................................................................................................................................................ ..... 15
C. INFRA-RED REMOTE ................................................................................................................................................ .......................................... 15
XII.WARRANTY ................................................................................................................................................ ............................................................... 16
Berner International has been saving energy and creating healthy, comfortable environments for our customers for over 60 years.
Berner offers unmatched quality, performance, and dependability-not to mention our service. At Berner, we stand behind our products.
READ ALL INSTRUCTIONS BEFORE INSTALLING OR USING AIR CURTAIN
indoor use
Thank you for choosing Berner.
Architectural
Elite 8
Air Curtain Series #AED08
©Copyright, 2017 Berner International
II-500D
June, 2017
Advertisement
Table of Contents
Related Manuals for Berner Architectural Elite 8
Summary of Contents for Berner Architectural Elite 8
-
Page 1: Table Of Contents
Thank you for choosing Berner. Berner International has been saving energy and creating healthy, comfortable environments for our customers for over 60 years. Berner offers unmatched quality, performance, and dependability—not to mention our service. At Berner, we stand behind our products. -
Page 2: Uncrating
Architectural Elite 08 Air Curtain (Air Door) WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: A. Read all instructions before installing or using this air curtain. B. Use this unit only in the manner intended by the manufacturer and described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons. - Page 3 Architectural Elite 8 Simple to Install Easy to operate & maintain WALL MOUNTING PLATE 1" minimum 4" minimum* side clearance AIR CURTAIN from Rule of thumb – Discharge combustible Before hanging, Nozzle material* If the unit must be mounted check to see what higher than 1”...
-
Page 4: General Mounting Instructions
II. MOUNTING INSTRUCTIONS (General) INDOOR MOUNTING ONLY - 1" minimum The Architectural Elite 8 Air Curtain is designed to be an side 4" minimum* effective barrier against cold drafts in the winter and hot air in clearance from the summer, flying insects and airborne contaminants. -
Page 5: Wall Mounting
III. WALL MOUNTING PREPARATION The Architectural Elite 8 Air Curtain is pre-assembled with four 5/16” shoulder bolts on the back of the unit (opposite the perforated intake grill). Position and center the mounting plate over the door opening with the larger opening of the key hole slots facing up. -
Page 6: Electrical Connections
V. ELECTRICAL CONNECTIONS All electrical wiring and connections MUST be performed by qualified personnel in accordance with the latest edition of the National Electrical Code ANSI/NFPA No. 70 or, in Canada, the Canadian Electrical Code, Part 1-C.S.A. Standard C22.1 and local codes and regulations. -
Page 7: Field Connections
VII. OPERATING INSTRUCTIONS FIGURE 9 A. GENERAL OPERATION This air curtain comes with a built-in Berner Intelliswitch™ Digital Controller to operate the fan activation, fan speed selection, and heat activation. The air curtain must be properly installed before it is used. -
Page 8: Maintenance And Cleaning
4. To operate using the Berner Air Curtain App NOTE: The air curtain must have been ordered from the factory with the wi-fi controller to use this option. The wi-fi controller allows air curtain(s) to be programmed & operated via smart phone. -
Page 9: Service
More than one disconnect may be required to de-energize unit. Any service performed on the ARCHITECTURAL ELITE 8 Air Curtain MUST be done by qualified personnel. Berner air curtains require very little servicing. All parts are easily accessible for periodic inspection and maintenance. -
Page 10: Quick Start Operation
QUICK START INSTRUCTIONS For your Berner Air Curtain with Intelliswitch™ www.Berner.com/intelliswitch NOTE – to navigate use up/down to select setting and left/right to change setting Mode/Fan Speed: Mode: Select your mode of operation (see steps on next page) Fan Speed: Sets the speed of the fan... - Page 11 3 Customizable Mode of Operation Options: www.berner.com/intelliswitch for programming directions (Section 5, Program Menu). STEP THREE Once the Mode of Operation is selected, press the“OK” button Berner International www.berner.com 800.245.4455 111 Progress Ave. / New Castle / PA / 16101 / USA - 11 -...
-
Page 12: Faq's (Frequently Asked Questions)
Even though every Architectural Elite 8 is individually tested at the factory before shipment, on occasion improper functionality may be experienced. Here is a list of common questions: Q. - Page 13 INTELLISWITCH™ FAQ’s Continued (Frequently Asked Questions) www.Berner.com/intelliswitch any mode that is activated by the door switch. heat should shut off when the wires are separated. 5.) If the air curtain is heated, make sure that the thermostat For more complex troubleshooting of either thermal cutouts or isn’t wired to the door switch leads.
-
Page 14: Troubleshooting
X. TROUBLESHOOTING SYMPTOMS CAUSE REMEDY NO AIR • Power supply line open (no power) • Check power source, check method of control position in ON • Fuse blown/circuit breaker tripped • Replace fuse(s)/reset breaker • Motor overload tripped • Internally protected motor - should reset automatically after cool-down, if not replace motor. -
Page 15: Appendix
WiFi network they can C. Infra-red Remote Control be programmed from a smart phone using the Berner The handheld infra-red remote control buttons, layout and operation are the same as that on the Intelliswitch™ air curtain app. -
Page 16: Xii.warranty
XII. WARRANTY Berner International ("The Company") warrants all new equipment to be free of defects in workmanship and material for a period of five years (5 years) on unheated models and two years (2 years) on heated models from the original date of shipment, provided the equipment has been properly cared for, installed and operated in accordance with the limits specified on the nameplate and The Company’s instructions.
