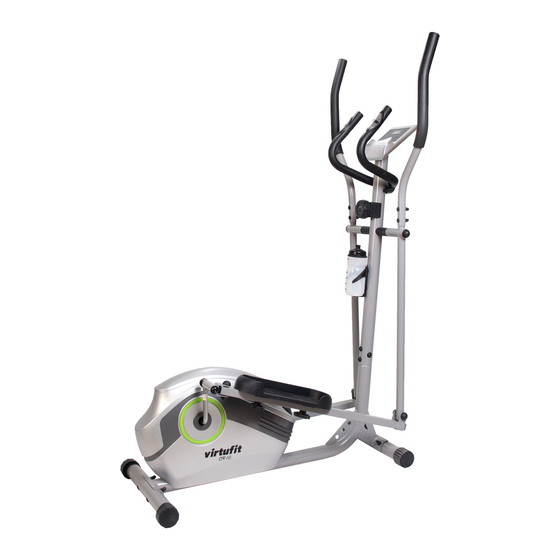

- Page 1 CTR 1.0 Crosstrainer User manual...
-
Page 2: Table Of Contents
5 - 9 ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS MAINTENANCE MAINTENANCE TROUBLE SHOOTING TROUBLE SHOOTING 12 - 14 CONTROL PANEL CONTROL PANEL 15 - 16 EXPLODED DRAWING EXPLODED DRAWING 17 - 18 PARTS LIST PARTS LIST TRAINING INSTRUCTIONS TRAINING INSTRUCTIONS VirtuFit CTR 1.0 Crosstrainer... -
Page 3: Safety Instructions
0.5 metres of free space all around it. – Before using the device, check that the nuts and bolts are securely tightened. – The safety of the device can only be maintained if it is regularly examined for damage and/or wear and tear. VirtuFit CTR 1.0 Crosstrainer... - Page 4 – Maintenance assembly and repair work not carried out by an official dealer. – In the event of improper use, neglect and / or poor maintenance. – Failure to maintain the device in accordance with the manufacturer’s instructions (see the enclosed manual). VirtuFit CTR 1.0 Crosstrainer...
-
Page 5: Assembly Instructions
Transport wheels: Make sure that the transport wheels are attached to the front of the appliance. STEP 1 • Attach the Front Stabilizer (35) and the Rear Stabilizer (36) to the Main Frame (40) with Carriage Bolt (33), Domed Nut (23) and Arc Washer (22). VirtuFit CTR 1.0 Crosstrainer... - Page 6 Connect the Sensor 16 and 38,and Tension Control wire 53 and 39 as shown above, fix the Upright Post (15) with the Main Frame (40) with Bolt (26), Arc Washer (22). Fasten tightly. NOTE! Tighten the Screw (27) and the Arc Washer (22) after STEP 3. VirtuFit CTR 1.0 Crosstrainer...
- Page 7 • Fix the Pedal Tubes (42L/R) with the Pedal Crank by Pedal Hinge Bolt (46L/R)Curved Washer (50), and Nylon Nut (51L/R). Install the Pedal (44) on the Pedal Tube (42L/R) with Hex Head Bolt(43), Knob (27). VirtuFit CTR 1.0 Crosstrainer...
- Page 8 Install the Middle handlebar (4) on the Upright Post (15) with bolt (8) Arc Waser (9). • Fix the Handlebar ( 11 L / R ) to the Lower Handle Bar ( 25 L / R ) with Bolt (21), Arc Washer (85) and Domed Nut (23). VirtuFit CTR 1.0 Crosstrainer...
- Page 9 Then, put the Bottle (100) in the Bottle Holder (98). NOTE! Make sure that all nuts and bolts are tight before you start training. The end cap of the front stabilizer tube is movable, making it easier for you to move the crosstrainer. VirtuFit CTR 1.0 Crosstrainer...
-
Page 10: Maintenance
Be sure to clean the exposed area of the belt and the foot rails of the treadmill on both sides. In addition, wear clean shoes to reduce the risk of contamination of the treadmill. Remove the hood at least once a year to vacuum underneath. VirtuFit CTR 1.0 Crosstrainer... -
Page 11: Trouble Shooting
• The sensors may become damp, dirty or greasy. So you have to clean them regularly. The console is not working If there is no signal when pedaling, check if the cable is properly attached. VirtuFit CTR 1.0 Crosstrainer... -
Page 12: Control Panel
Press “MODE” button until “SCAN” appears, monitor will rotate through all the (2) SCAN 6 functions: Time, speed, distance, ODO, calorie, pulse. Each display will be hold 5 seconds. (3) TIME Count the total time from exercise start to end. (4) SPEED Display current speed. VirtuFit CTR 1.0 Crosstrainer... - Page 13 The monitor will be auto-powered on when starting to exercise push button w/signal in. • The monitor will automatically start calculating when you start to exercise and will stop calculating when you stop exercising for 4 seconds. VirtuFit CTR 1.0 Crosstrainer...
- Page 14 TRIP DISTANCE 0.0 ~9999 KM. CALORIES 0.0 ~9999 CAL. 0.0 ~9999 KM. PULSE RATE 40 ~240 BPM WERKING 0°C ~ +40°C. TEMPERATUUR OPBERGRUIMTE -10°C ~ +60°C. TEMERATUUR BATTERIJ 2pcs of SIZE –AAA or UM –4 TYPE VirtuFit CTR 1.0 Crosstrainer...
-
Page 15: Exploded Drawing
EXPLODED DRAWING 1b 1a 85 23 52 51R VirtuFit CTR 1.0 Crosstrainer... - Page 16 EXPLODED DRAWING VirtuFit CTR 1.0 Crosstrainer...
-
Page 17: Parts List
Crosshead screw M5*15 Lower handlebar ( L / R ) Motor Bolt M8x16 Crank cover Knob M10 Crosshead screw ST4.2*16 End cap S17 Crosshead screw ST4.2*19 Bolt M10x60 Chain cover ( L / R ) Bushing φ14x12.5Xφ10.1 VirtuFit CTR 1.0 Crosstrainer... - Page 18 Tension spring 1 Crank Bolt Bracket Open-end wrench S13 14 15 Hex wrench S6 Hex wrench S8 Open-end wrench S17 18 19 End cap Arc washer D8Xφ16X1.5XR30 Magnetic board Tension spring 2 Plastic lattice Magnet Hexagon nut M6 VirtuFit CTR 1.0 Crosstrainer...
-
Page 19: Training Instructions
The purpose of cooling down is to return the body to its normal or near normal, resting state at the end of each exercise session. A proper cool-down slowly lowers your heart rate and allows blood to return to the heart. VirtuFit CTR 1.0 Crosstrainer... - Page 20 For questions or missing parts please contact your dealer.
