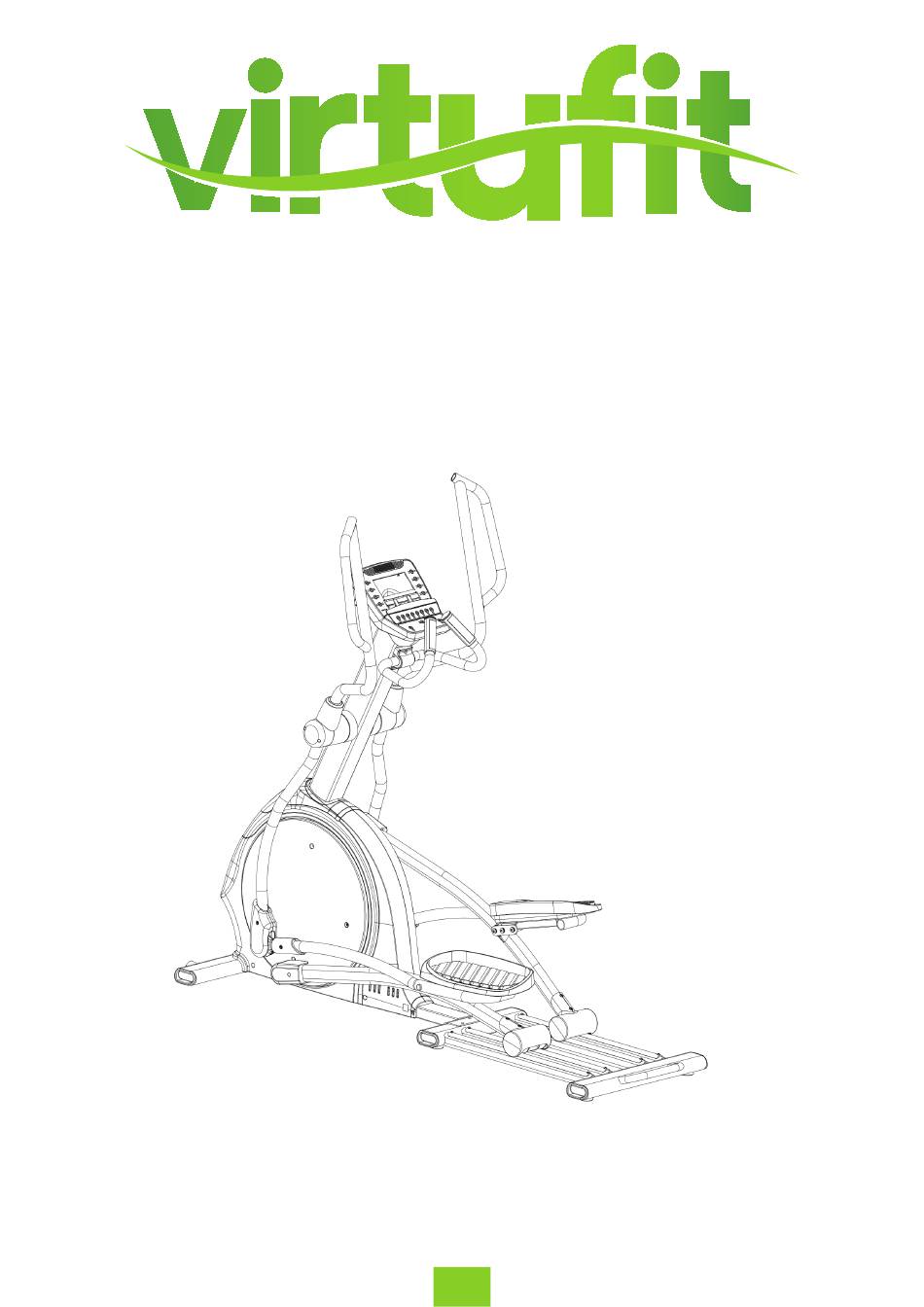

- Page 1 Elite FDR 2.5i Semi-Pro Crosstrainer User Manual...
-
Page 2: Table Of Contents
INDEX Safety Caution Checklist Assembly Intructions 5-11 Maintenance Computer Manual 13-19 App Possibilities Exploded Drawing Parts List 22-25 VirtuFit Elite FDR 2.5i Semi-Pro Crosstrainer... -
Page 3: Safety Caution
The crosstrainer is made for adults. Make sure that children only use it when accompanied by an adult. Inform users of potential danger, watch out for moving parts during use. Warning: improper / excessive training can cause injuries. VirtuFit Elite FDR 2.5i Semi-Pro Crosstrainer... -
Page 4: Checklist
CHECKLIST VirtuFit Elite FDR 2.5i Semi-Pro Crosstrainer... -
Page 5: Assembly Intructions
Allen screws: In the uprights of cross trainers are hex bolts, make sure that the Allen key is firmly in the bolt before you apply force to the key. In this way you prevent the head of the socket head from being turned VirtuFit Elite FDR 2.5i Semi-Pro Crosstrainer... - Page 6 – Connect the motor communication wire (61) with Upright post comunication wire (76); – Attach the upright post (2) to the main frame (1) with Allen cylinder head full thread screw (30), Flat washer (50) and Spring washer (53). VirtuFit Elite FDR 2.5i Semi-Pro Crosstrainer...
- Page 7 – Attach the pulse circular tube (7) to the upright post (2) with Allen cylinder head full thread screw (30), Flat washer (50); – Assemble the handlebar cover (104) with Philips pan head full thread screw (118). VirtuFit Elite FDR 2.5i Semi-Pro Crosstrainer...
- Page 8 – Insert the bottle holder (88) into the console (87). STEP 4 – Connect upright post (2) with console (87) communication wire; – Attach the console (87) to upright post (2) with the Philips C.K.S. self-tapping screw (45). VirtuFit Elite FDR 2.5i Semi-Pro Crosstrainer...
- Page 9 (108) with Philips pan head full thread screw (83); – Assemble the right swing arm in the same way. STEP 6 – Attach the Pulley limited sleeve(86) to the swing arm and lock with Allen C.K.S. full thread screw (32). VirtuFit Elite FDR 2.5i Semi-Pro Crosstrainer...
- Page 10 – Insert the handlebar decorative cover (102) into left upper handlebar (14). Then attach left upper handlebar (14) to left down handlebar (5) with Allen C.K.S. half thread screw (36) and Hex self-locking nut (58); – Assemble the right down handlebar in the same way. VirtuFit Elite FDR 2.5i Semi-Pro Crosstrainer...
-
Page 11: Assembly Intructions
A, B to left down handlebar (5) with Philips Pan head full thread screw (83); – Assemble the right side in the same way. STEP 9 – Insert the power plug into the plug hole, assemble is finished. VirtuFit Elite FDR 2.5i Semi-Pro Crosstrainer... -
Page 12: Maintenance
3. If you have a lot of calluses on your hands, it is more difficult for the sensors to measure, when this is the case a chest strap is recommended. VirtuFit Elite FDR 2.5i Semi-Pro Crosstrainer... -
Page 13: Computer Manual
ENTER Press this button to select function or confirm all setting values START/STOP To start or stop training. When user stops training by pressing START/STOP key, the computer will remain all the setting values VirtuFit Elite FDR 2.5i Semi-Pro Crosstrainer... - Page 14 Manual adjust workout mode. PROGRAM Self-select load level to workout; 12 profiles preset to be selected. USER User create his own resistance level profile to workout. H.R.C. Target HR training mode. WATT WATT constant training mode CONSTANT VirtuFit Elite FDR 2.5i Semi-Pro Crosstrainer...
- Page 15 1-1-1 SEX- Female / Male 1-1-2 AGE- 1~99 ( default value is last input value ) 1-1-3 HEIGHT- 100~200CM ( default value is last input value ) 1-1-4 WEIGHT- 20~150KG ( default value is last input value ) VirtuFit Elite FDR 2.5i Semi-Pro Crosstrainer...
- Page 16 In main menu, press DOWN key one time and press MODE to enter TIME setting. User may press UP or DOWN button to set up target training time. Then press MODE to set up DISTANCE/ CALORIES/ PULSE as drawing 4-6. Press START/STOP button to start training. VirtuFit Elite FDR 2.5i Semi-Pro Crosstrainer...
- Page 17 When user select H.R.C mode, press RESET key back to main menu. Press UP key 3 times to enter H.R.C mode (drawing 8). Press MODE to set up, H.R.C 55% is blinking, press UP or DOWN to choose different target heart rate H.R.C 75%, H.R.C 90% and H.R.C Targe. VirtuFit Elite FDR 2.5i Semi-Pro Crosstrainer...
- Page 18 Error code display during measurement: E-1--- user not hold hand grips correctly (Drawing 16) E-4--- Body Fat% exceed setting range (5.0%~ 50%). - Press BODY FAT button again to go back to previous workout status. VirtuFit Elite FDR 2.5i Semi-Pro Crosstrainer...
-
Page 19: Computer Manual
- In RECOVERY mode, press RECOVERY can reset the mode. 8. SLEEP mode If there is no RPM signal input in 4 minutes, LED light and console will enter SLEEP mode, press any key to wake up the system in power up state. VirtuFit Elite FDR 2.5i Semi-Pro Crosstrainer... -
Page 20: App Possibilities
If the console of the crosstrainer is connected to your smartphone or tablet via Bluetooth, the console will turn off. If you leave the app turn off the bluetooth connection on your smarthphone or the tablet, the console will automatically turn on again. VirtuFit Elite FDR 2.5i Semi-Pro Crosstrainer... -
Page 21: Exploded Drawing
EXPLODED DRAWING VirtuFit Elite FDR 2.5i Semi-Pro Crosstrainer... -
Page 22: Parts List
Allen cyclinder head full thread screw M6*10 Allen cyclinder head full thread screw M8*15 Allen cyclinder head full thread screw M8*20 Allen pan head full thread screw M8*55*20 Allen C.K.S. half thread screw M8*50*20 VirtuFit Elite FDR 2.5i Semi-Pro Crosstrainer... - Page 23 Hex self-locking nut M10 Hex self-locking nut M8 Handle pulse connecting wire Engine cable Main frame communication cable Handlebar down connection powder case Brake tension spring Φ11.5XΦ1.2X13 EVA washer Spring washer Φ12 Bearing M12 VirtuFit Elite FDR 2.5i Semi-Pro Crosstrainer...
- Page 24 Down handlebar cover A Down handlebar cover B Body arm cover A Body arm cover B Belt clamp powder set Wheels decoration cover Handle pulse set Handlebar Outer cover Handlebar Middle cover Handle Inner cover VirtuFit Elite FDR 2.5i Semi-Pro Crosstrainer...
-
Page 25: Parts List
Brake line Flywheel axis Deep groove ball bearing ( TPI ) 6203ZZ Handle bar axle sleeve clearance set Switching bearing clearance set Crank bearing clearance set Swing arm bearing clearance set Wheel bearing clearance set VirtuFit Elite FDR 2.5i Semi-Pro Crosstrainer... - Page 26 For questions or missing parts please contact your dealer.
