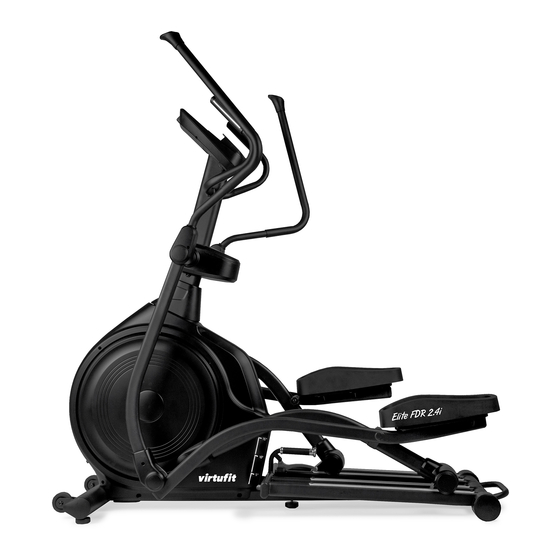

- Page 1 Elite FDR 2.4i Crosstrainer User manual...
- Page 2 ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS MAINTENANCE MAINTENANCE TROUBLE SHOOTING TROUBLE SHOOTING 11 - 17 CONTROL PANEL CONTROL PANEL APP INSTRUCTIONS APP INSTRUCTIONS EXPLODED DRAWING EXPLODED DRAWING 20 - 21 PARTS LIST PARTS LIST TRAINING INSTRUCTIONS TRAINING INSTRUCTIONS VirtuFit Elite FDR 2.4i Crosstrainer...
-
Page 3: Safety Instructions
– Before using the device, check that the nuts and bolts are securely tightened. – The safety of the device can only be maintained if it is regularly examined for damage and/or wear and tear. VirtuFit Elite FDR 2.4i Crosstrainer... - Page 4 – Maintenance assembly and repair work not carried out by an official dealer. – In the event of improper use, neglect and / or poor maintenance. – Failure to maintain the device in accordance with the manufacturer’s instructions (see the enclosed manual). VirtuFit Elite FDR 2.4i Crosstrainer...
- Page 5 Lock the adjustable foot pad (31) into the main frame (1) then lock the connecting tube cover (68) on the Roller bracket (3). • Fix the pedal (36) onto pedal bar (5L/R) by Cross screw (38). VirtuFit Elite FDR 2.4i Crosstrainer...
- Page 6 Attach the Handlebar post (4) onto the main frame (1) with Hexagon bolt (46), (47), spring washer (48), flat washer (34) and arc washer (49), then fix the handlebar cover (45L/R) onto the main frame(1) with Phillips tapping screw (62). VirtuFit Elite FDR 2.4i Crosstrainer...
- Page 7 (42), flat washer (27) and nylon nut (28). Then tighten the hexagon bolt (60). • Fix the pedal bar cover (56L/R) onto the swing bar (6L/R) by Phillips tapping screw (62), then fix the handlebar cover (65 a/b/c) onto the handlebar post (4) with Phillips tapping screw (62). VirtuFit Elite FDR 2.4i Crosstrainer...
- Page 8 (32), then fix the swing bar cover (57L/R) onto the swing bar (6L/R) with Phillips tapping screw (62). • Connect the pulse wire (52), extension wire (44) to the console (63), then fix the console (63) on the handlebar post (4) by cross screw (64). VirtuFit Elite FDR 2.4i Crosstrainer...
-
Page 9: Daily Maintenance
This can be done with vaseline (without acids) or with silicone oil. • If a main switch is attached to the appliance (on/off ), it should always be used after use be turned off. VirtuFit Elite FDR 2.4i Crosstrainer... -
Page 10: Troubleshooting
• The sensors may become damp, dirty or greasy. So you have to clean them regularly. The console is not working If there is no signal when pedaling, check if the cable is properly attached. VirtuFit Elite FDR 2.4i Crosstrainer... -
Page 11: Control Panel
• Return to the main menu while setting one training value or during stop mode. START/STOP Start or stop the workout. RECOVERY Test the heart rate recovery status. BODYFAT Test body fat in stop mode. VirtuFit Elite FDR 2.4i Crosstrainer... - Page 12 Rotation per minute. Range 0 ~ 999. WATT Display current workout watts. Display range 0~999. MANUAL Manual training mode. PROGRAM Beginner, Advance and Sporty, 12 programs for selection. CARDIO Target HR training mode. WATT WATT constant training mode. PROGRAM VirtuFit Elite FDR 2.4i Crosstrainer...
-
Page 13: Operation
3s, it will switch to display WATT (Drawing 12). 4. Press START/STOP keys to pause workout. Press RESET to reverse to main menu. Press START/STOP keys to pause workout. Press RESET to reverse to main menu. VirtuFit Elite FDR 2.4i Crosstrainer... -
Page 14: Manual Mode
5. Press START/STOP key to pause workout. Use RESET to reverse to main menu. Drawing 13 Advance Mode VirtuFit Elite FDR 2.4i Crosstrainer 1. Use UP or DOWN (Encoder) to select workout program, choose Advance mode and press MODE / ENTER to get... -
Page 15: Beginner Mode
3. Use UP or DOWN (Encoder) to set TIME. 4. Press START/STOP key to start workout. Use UP or DOWN (Encoder) to adjust load level. 5. Press START/STOP key to pause workout. Use RESET to reverse to main menu. VirtuFit Elite FDR 2.4i Crosstrainer... -
Page 16: Cardio Mode
20). User may keep exercising to improve the heart rate will display your heart rate recovery status with the F1, F2…. to F6. F1 is the best, F6 is the worst (Drawing recovery status. (Press the RECOVERY button again to return the main display.) VirtuFit Elite FDR 2.4i Crosstrainer... - Page 17 Drawing 23 Drawing 24 Drawing 23 Drawing 24 Drawing 23 Drawing 24 Drawing 25 Drawing 26 Drawing 25 Drawing 26 Drawing 25 Drawing 26 Drawing 25 Drawing 26 iConsole+ Training iConsole+ Training iConsole+ Training iConsole+ Training VirtuFit Elite FDR 2.4i Crosstrainer...
-
Page 18: App Instructions
ICONSOLE+ APP STORE GOOGLE PLAY USER MANUAL ICONSOLE+ ICONSOLE+ ICONSOLE+ KINOMAP APP STORE GOOGLE PLAY USER MANUAL KINOMAP KINOMAP KINOMAP VirtuFit Elite FDR 2.4i Crosstrainer... -
Page 19: Exploded Drawing
EXPLODED DRAWING VirtuFit Elite FDR 2.4i Crosstrainer... -
Page 20: Parts List
Hexagon bolt M8*35 Inner hexagon screw M5*30 Bushing Inner hexagon screw M8*25 Pedal bar cover 2 pr Flat washer D8*D16*1.5 Swing bar cover 2 pr Nylon nut M8 Bearing Compressed spring Bushing Plug Hexagon bolt M8*15 VirtuFit Elite FDR 2.4i Crosstrainer... - Page 21 PARTS LIST DESCRIPTION Wave washer Phillips tapping screw ST4.2*18 Console Cross screw Handlebar cover Grip End cap Connection tube cover VirtuFit Elite FDR 2.4i Crosstrainer...
-
Page 22: Training Instructions
The purpose of cooling down is to return the body to its normal or near normal, resting state at the end of each exercise session. A proper cool-down slowly lowers your heart rate and allows blood to return to the heart. VirtuFit Elite FDR 2.4i Crosstrainer... - Page 23 For questions or missing parts please contact your dealer.
