Summary of Contents for VIRTUFIT CTR 1.2i Crosstrainer

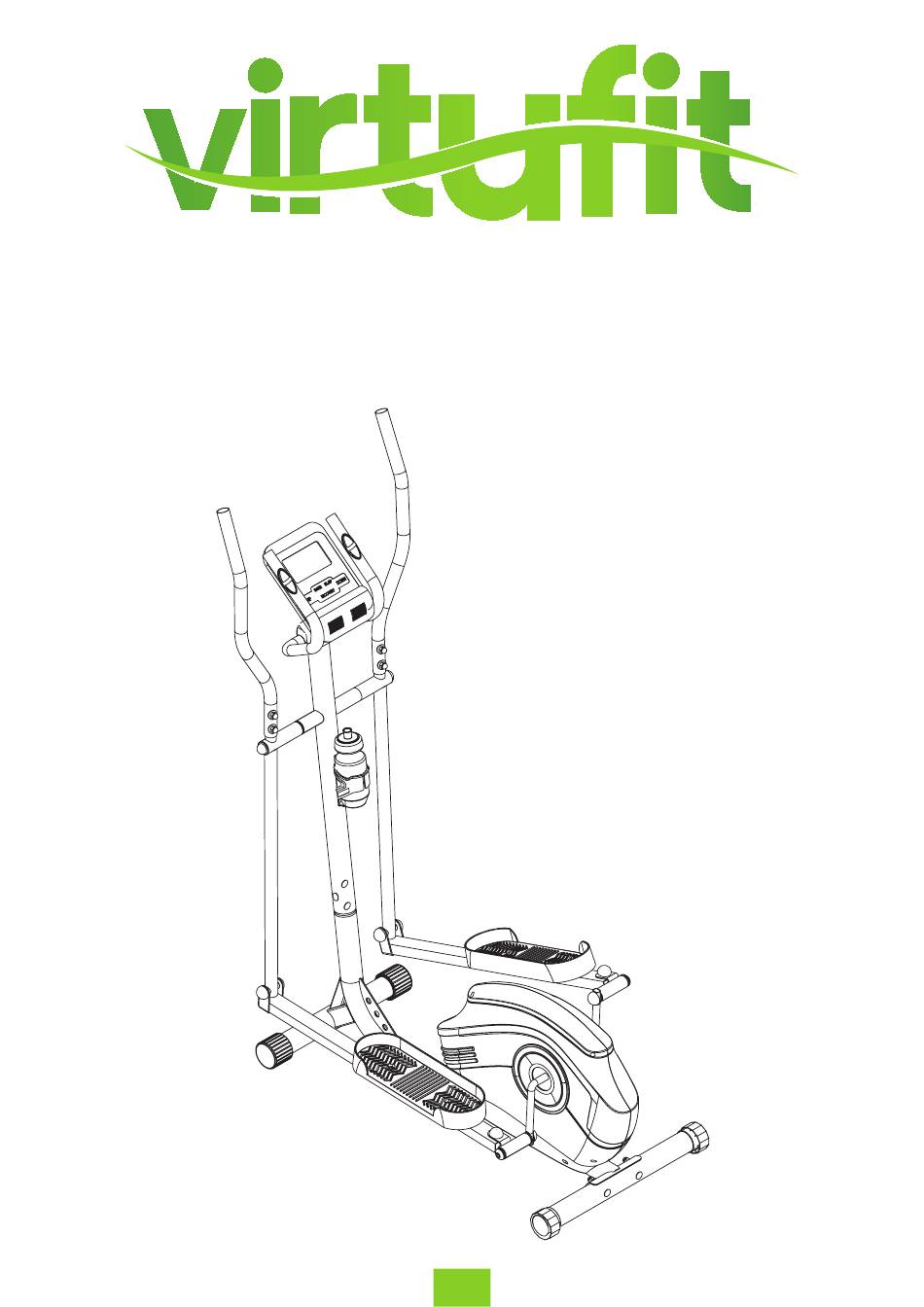

- Page 1 CTR 1.2i Crosstrainer User manual...
-
Page 2: Table Of Contents
INDEX Important safety notice Assembly instructions Maintenance Operating Guide Technical drawing Parts list VirtuFit CTR 1.2i Crosstrainer... -
Page 3: Important Safety Notice
Ensure that those present are aware of possible hazards, e.g. movable parts during training. Warning: incorrect/excessive training can cause health injuries. Consult your physician before starting with any exercise program. He or she can advise on the kind of training and which impact is suitable. VirtuFit CTR 1.2i Crosstrainer... - Page 4 STEP 1 – Attach the Front Stabilizer (35) and the Rear Stabilizer (36) to the Main Frame (40) with Carriage Bolt (33), Domed Nut (23) and Arc Washer (22). VirtuFit CTR 1.2i Crosstrainer...
-
Page 5: Assembly Instructions
STEP 2 – Connect the Sensor 16 and 38, fix the Upright Post (15) with the Main Frame (40) with Nut (27) Arc Washer (22). Note: Tighten the Screw (27) and the Arc Washer (22) very tight. VirtuFit CTR 1.2i Crosstrainer... - Page 6 – Fix the Pedal Tubel ( 42 L / R ) with the Pedal Crank by Pedal Hinge Bolt ( 46 L / R ) Curved Washer (50), and Nylon Nut ( 51 L / R ). Install the Pedal (44) on the Pedal Tube ( 42 L / R ) with Hex Head Bolt (43), Knob (27). VirtuFit CTR 1.2i Crosstrainer...
- Page 7 – Install the Middle handlebar (4) on the Upright Post (15) with bolt (8) Arc Waser (9); – Fix the Handlebar ( 11 L / R ) to the Lower Handle Bar ( 25 L / R ) with Bolt (21), Arc Washer (85) and Domed Nut (23). VirtuFit CTR 1.2i Crosstrainer...
- Page 8 CAUTION: MAKE SURE YOU HAVE TIGHTENED ALL THE BOLTS AND NUTS WELL BEFORE BEGINNING YOUR WORKOUT. NOTE: THE END CAP ON THE FRONT STABILIZER TUBE IS MOVABLE AND WORKS AS A WHEEL, WHICH IT IS EASY FOR YOU TO MOVE YOUR ELLIPCTICALL. VirtuFit CTR 1.2i Crosstrainer...
-
Page 9: Maintenance
3. If you have a lot of calluses on your hands, it is more difficult for the sensors to measure, when this is the case a chest strap is recommended. VirtuFit CTR 1.2i Crosstrainer... - Page 10 OPERATING GUIDE LOOPBAND AFSTELLEN CONTROL PANEL 1. Program: 21 programs as following A: 1 Manual program B: 10 Preset program profile (PROGRAM: P1-P10) VirtuFit CTR 1.2i Crosstrainer...
-
Page 11: Operating Guide
P8: Endurance P4: Ramp P9: Slope P5: Mountain P10: Rally C: 1 Watt Control Program (WATT PRO: P16) D: 4 Heart Rate Control Program: (PULSE PRO: P17-P20) 55% Hearthbeat, 75% hearthbeat, 95% hearthbeat, Target heart rate VirtuFit CTR 1.2i Crosstrainer... - Page 12 The computer will turn off automatically if there is no operation, speed signal and pulse signal over 4 minutes. Meanwhile,it will store your current exercise data and urn the loading resistance to the minimum. Once you press any button or in motion, the computer will turn on automatically. VirtuFit CTR 1.2i Crosstrainer...
- Page 13 B: When in setting, press “ENTER” to confirm the value that you would like to preset. Press “START/STOP” button to start or stop the programs. (2) START / STOP During any mode, hold down this button for 2 seconds to totally reset the computer. VirtuFit CTR 1.2i Crosstrainer...
- Page 14 When you are in pulse recovery mode, press this button to exit. NOTE: It is suggested to cover your finger within the marked region to select functions in case of any wrong action. VirtuFit CTR 1.2i Crosstrainer...
- Page 15 Press ENTER to confirm the value. F. The watt display will flash, and then press UP, DOWN button to set up the watt to do the exercise. Press ENTER to confirm the value. G. PressSTART/STOPtobeginexercise. VirtuFit CTR 1.2i Crosstrainer...
- Page 16 F. The age will flash, and then press UP, DOWN button to set the user’s age. Press ENTER to confirm the value. G. When the target heart rate control program flash, the computer will display the user’s target heart rate according to user’s age. H. Press START/ STOP to begin exercise. VirtuFit CTR 1.2i Crosstrainer...
- Page 17 E. The calories will flash, and then press UP, DOWN button to set up the desired calories to be consumed. Press ENTER to confirm the value. F. The target heart rate will flash, and then press UP, DOWN button to set up your target heart rate. Press ENTER to confirm the value. G. PressSTART/STOPtobeginexercise. VirtuFit CTR 1.2i Crosstrainer...
- Page 18 F. If the computer does not detect your current heart rate first, pressing RECOVERY will not enter into pulse recovery test. During the pulse recovery test, press RECOVERY to exit the test and return to the stop status. VirtuFit CTR 1.2i Crosstrainer...
- Page 19 If you do not preset the time, it will run with one minute decrement each resistance level. DIST the exercise accumulative distance. Range : 0.0~99.9~999KM(MILE) the preset distance range :1.0~99.0~999. When the distance reaches 0, the program will stop and the computer will alarm. VirtuFit CTR 1.2i Crosstrainer...
- Page 20 When the calorie reaches 0, the program will stop and the computer will alarm. PULSE showing the exercise heart rate value. Range: 60~240BPM(beat per minute). RESISTANCE LEVEL showing level. Range:1~16 WATT show the exercise watt,the interval should be 10,between 30-350 ADAPTOR INPUT: AC 230V OUTPUT: 8 VDC 500mA VirtuFit CTR 1.2i Crosstrainer...
- Page 21 TECHNICAL DRAWING VirtuFit CTR 1.2i Crosstrainer...
-
Page 22: Technical Drawing
TECHNICAL DRAWING VirtuFit CTR 1.2i Crosstrainer... - Page 23 Chain cover ( L / R ) Knob M10 End cap S17 Washer Bolt M10x60 Left collar housing Bushing φ14x12.5Xφ10.1 Collar ball Washer D10Xφ20x2 Collar housing Nylon nut M10 Right collar housing Carriage Bolt M8X60 Washer VirtuFit CTR 1.2i Crosstrainer...
-
Page 24: Parts List
Arc washer D8Xφ16X1.5XR30 Magnetic board Tension spring 2 Plastic lattice Magnet Hexagon nut M6 Hexagon bolt M6*20 idler Hexagon thin nut M10*1.0*2 Spring washer d6 Washer d6 Srap ring d12 Axle of magnetic board Hexagon nut Adapter VirtuFit CTR 1.2i Crosstrainer... - Page 25 If you’ve already registered, please enter your surename and password to login. Please register with an email address or phone number then select a username and password for your FitShow account. VirtuFit CTR 1.2i Crosstrainer VirtuFit TR-200i Treadmill...
- Page 26 With bluetooth enabled, it will automatically locate your device. Connect to the corresponding device to ensure CTR 1.2i proper intergration. CTR 1.2i Once connected, if you click image of device, the Device Details will appear, displaying the VirtuFit CTR 1.2i Crosstrainer VirtuFit TR-200i Treadmill...
- Page 27 Once connected, the App will display four modes, you can select one mode and click “START” button to begin exercising. WARNING: Move with caution while exercising and using the App as multitasking may be a distraction. VirtuFit CTR 1.2i Crosstrainer VirtuFit TR-200i Treadmill...
- Page 28 Steps Per Minute, Heart BPM, Average Speed, and Average Pace will be displayed. Once you’ve completed your workout, hit the “STOP” button and the FitShow will save this record in your workout history. VirtuFit CTR 1.2i Crosstrainer VirtuFit TR-200i Treadmill...
- Page 29 For questions or missing parts please contact your dealer.
