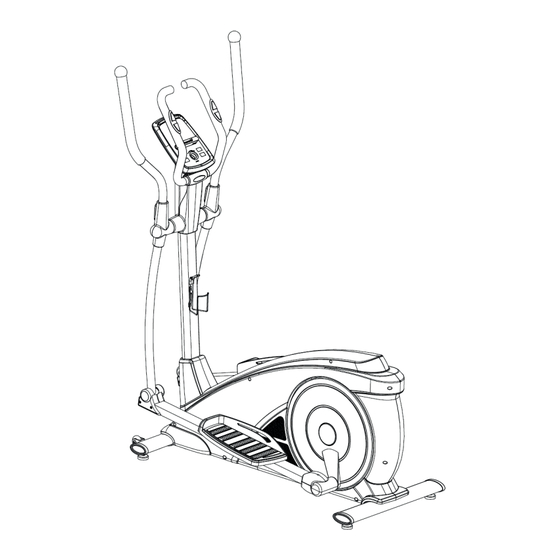

- Page 1 Total Fit Ergometer Crosstrainer User manual Gebruiksaanwijzing...
- Page 2 5 - 11 ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS MAINTENANCE MAINTENANCE TROUBLE SHOOTING TROUBLE SHOOTING 14 - 20 CONTROL PANEL CONTROL PANEL APP INSTRUCTIONS APP INSTRUCTIONS EXPLODED DRAWING EXPLODED DRAWING PARTS LIST PARTS LIST TRAINING INSTRUCTIONS TRAINING INSTRUCTIONS VirtuFit iConsole Total Fit Ergometer Crosstrainer...
- Page 3 – Before using the device, check that the nuts and bolts are securely tightened. – The safety of the device can only be maintained if it is regularly examined for damage and/or wear and tear. VirtuFit iConsole Total Fit Ergometer Crosstrainer...
-
Page 4: Safety Instructions
– Maintenance assembly and repair work not carried out by an official dealer. – In the event of improper use, neglect and / or poor maintenance. – Failure to maintain the device in accordance with the manufacturer’s instructions (see the enclosed manual). VirtuFit iConsole Total Fit Ergometer Crosstrainer... - Page 5 STEP 1 • Install the Front bottom tube (2) and Rear bottom tube (3) to the Main frame (1) with the Hex socket screws (17), Spring washers (18) and Arc washers (16) as shown. VirtuFit iConsole Total Fit Ergometer Crosstrainer...
- Page 6 Connect the Extension sensor wire (59) with the Sensor wire (57) properly at first, then lock the Handlebar post (4) onto the Main frame (1) with the Allen bolts (53), Spring washers (18) and Flat washers (12), and then put on the Protective guard (58) in place. VirtuFit iConsole Total Fit Ergometer Crosstrainer...
- Page 7 (38), Flat washers (30) and Nylon nuts (31). Then recheck and lock the above mentioned Hex screws (26), Screws (37) and Nylon nuts (31) tightly. • Lock the Pedal (34L/R) on the Pedal support (8L/R) tightly with the Hex screws (33), Flat washers (12) as shown. VirtuFit iConsole Total Fit Ergometer Crosstrainer...
- Page 8 Thread the Hand pulse wires (54) into the hole of Handlebar post (4) and then take it out from the computer bracket. Lock the Fixed handlebar (5) on the Handlebar post (4) tightly with the Allen bolts (53) and Spring washers (18) as shown. VirtuFit iConsole Total Fit Ergometer Crosstrainer...
- Page 9 Fix the Protective guard (36L/R) on the connecting joint of Swing tube (7L/R) and Pedal support (8L/R) with the Screws (35). • Fix the Protective guard (28a/b) on the Pedal tube joint (23L/R) with the Screws (27) as shown. VirtuFit iConsole Total Fit Ergometer Crosstrainer...
- Page 10 Lock the Kettle holder (62) on the Handlebar post (4) tightly with screw(63) and Flat washer (64). • You can plug in the adapter now. The power adapter can be plugged in at the rear of the machine as indicated by the arrow in the picture above. VirtuFit iConsole Total Fit Ergometer Crosstrainer...
-
Page 11: Adapter Connection
The adapter connection is located on the back of the device (see illustration). • Attach the adapter to the adapter connection and connect to the power supply. • You can now use the elliptical trainer. VirtuFit iConsole Total Fit Ergometer Crosstrainer... -
Page 12: Daily Maintenance
• Inspect all bolts and nuts in connection with moving parts of the device, tighten as required. • Check the mobility of moving parts and components of the use equipment, silicone spray if necessary. VirtuFit iConsole Total Fit Ergometer Crosstrainer... -
Page 13: Troubleshooting
The sensors may become damp, dirty or greasy. So you have to clean them regularly. The console is not working If there is no signal when pedaling, check if the cable is properly attached. VirtuFit iConsole Total Fit Ergometer Crosstrainer... -
Page 14: Control Panel
• Computer restarts after pressing and holding for 2 seconds. RESET • Return to main menu, restore the value or stop mode. Start or stop the training. START / STOP • Increase or decrease the value. ENCODER • Confirm the value selection VirtuFit iConsole Total Fit Ergometer Crosstrainer... - Page 15 Functions change automatically every 6 seconds. PROGRAM Choice of 12 programs. USER Manual selection. User determines his own resistance program. H.R.C. Heart Rate Control. Heart rate based program. RECOVERY Heart rate recovery status. BODY FAT Body fat measurement. VirtuFit iConsole Total Fit Ergometer Crosstrainer...
-
Page 16: Operation
Which that flashes you can increase / decrease by turning the knob. Press the button to confirm. Press start to start the program. 8. With the manual program you can set different values, with the pre-programmed programs only time. VirtuFit iConsole Total Fit Ergometer Crosstrainer... -
Page 17: Manual Mode
3. Press the round button to confirm the program. With another push of a button you can difficulty setting by turning afterwards. The time flashes after the button is pressed. You can now set the time by turning the knob. Select the desired time and press “START” to start the program. VirtuFit iConsole Total Fit Ergometer Crosstrainer... -
Page 18: Heart Rate Mode
HEART symbol. Press the round button. Turn the knob to select. Press on the button to choose. After that time can be set by turning and pressing and the button. Pressure then press START to start. VirtuFit iConsole Total Fit Ergometer Crosstrainer... -
Page 19: Watt Mode
2. After selecting, you can place your hands on the heart rate sensors on the handlebars. 3. After a few seconds, an approximation of your BMI (B) and your body fat percentage (F) will appear. VirtuFit iConsole Total Fit Ergometer Crosstrainer... -
Page 20: Recovery Mode
2. Time and heart rate are displayed. The time counts down from 60 seconds and the current heart rate becomes shown. You do not have to cycle. 3. The faster your heart rate drops, the better your fitness. NOTE: This is an estimate. The results should not be used for medical purposes. VirtuFit iConsole Total Fit Ergometer Crosstrainer... -
Page 21: App Instructions
ICONSOLE+ APP STORE GOOGLE PLAY USER MANUAL ICONSOLE+ ICONSOLE+ ICONSOLE+ KINOMAP APP STORE GOOGLE PLAY USER MANUAL KINOMAP KINOMAP KINOMAP VirtuFit iConsole Total Fit Ergometer Crosstrainer... -
Page 22: Exploded Drawing
EXPLODED DRAWING VirtuFit iConsole Total Fit Ergometer Crosstrainer... -
Page 23: Parts List
Protective cover Screw M5*10 Handlebar cable 28 A/B Protective guard Each 2 Flat ring D10*Ø20*2 Hex bolt M10*55 Adapter Flat washer D10* Ø20*2 Bottle cage Nylon nut M10 Screw Bushig Ø18* Ø10*11 Flat ring VirtuFit iConsole Total Fit Ergometer Crosstrainer... -
Page 24: Training Instructions
The purpose of cooling down is to return the body to its normal or near normal, resting state at the end of each exercise session. A proper cool-down slowly lowers your heart rate and allows blood to return to the heart. VirtuFit iConsole Total Fit Ergometer Crosstrainer... - Page 25 For questions or missing parts please contact your dealer.
