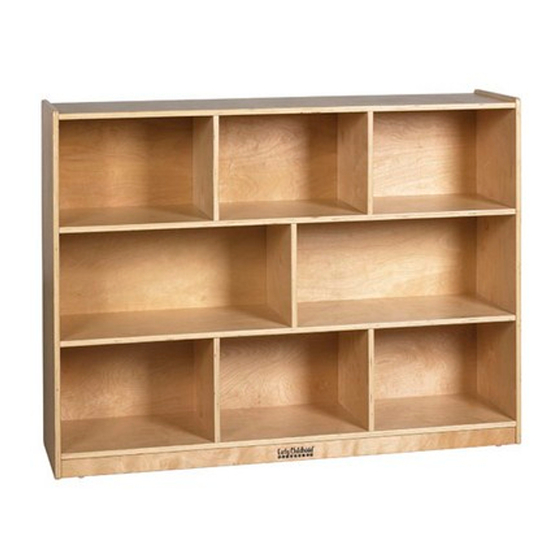

8 Compartment
Storage Cabinet
Model# ELR-0421-A
WARNING:
Adult Assembly Required.
Two adults recommended.
- Contains small parts, sharp points and edges.
- Do not stand, sit, kneel, climb, lean or pull on unit
for support.
- Never leave children unattended.
- Do not place unit near high heat or moisture.
- Adult supervision recommended.
Children climbing on furniture can lead to
death or serious injury due to tipping.
Secure unit to wall using appropriate
hardware.
BEFORE ASSEMBLING, MAKE SURE YOU HAVE ALL THE PARTS
A
A1
B
C
D
E
Parts List
F
Left & Right
Side Panels (1/1)
A2
G
Top Panel (1)
H
I
Upper Shelf (1)
J
Lower Shelf (1)
Bottom Shelf (1)
TOOLS INCLUDED
Batch ID
located underneath.
Back Panels (3)
Hex Screws (26)
Cam Posts & Cam Locks (10/10)
I1
I2
Use a Phillips Screwdriver.
Phillips Screws & Casters (16/4)
J1
J2
Use a Phillips Screwdriver.
TOOLS NEEDED
Hex Tool (1)
Phillips Screwdriver
Dividers (5)
Use the Hex Tool.
