San Diego, CA 92110 USA
www.ecr4kids.com
30 Section

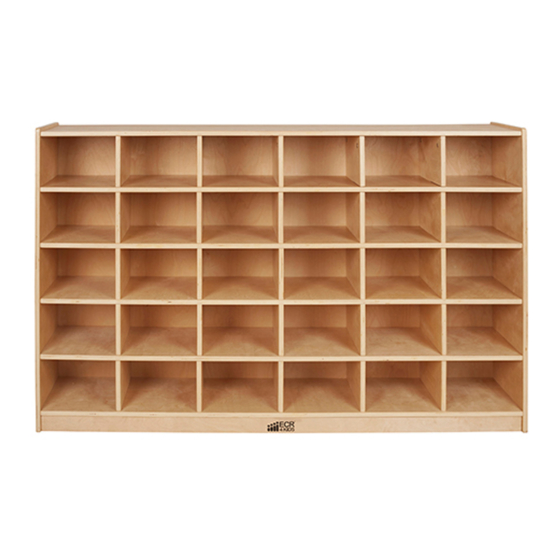

Storage Cabinet
Model# ELR-17257
WARNING:
Adult Assembly Required.
Two adults recommended.
- Contains small parts, sharp points and edges.
- Do not stand, sit, kneel, climb, lean or pull on unit for support.
- Never leave children unattended.
- Do not place unit near high heat or moisture.
- Adult supervision recommended.
Children climbing on furniture
can lead to death or serious
injury due to tipping. Secure
unit to wall using appropriate
hardware.
TOOLS INCLUDED
Hex Tool (1)
TOOLS NEEDED
Phillips Screwdriver
BEFORE ASSEMBLING, MAKE SURE YOU HAVE ALL THE PARTS
A
A1
A2
B
C
D
E
Parts List
Left & Right
F
Lower Dividers (5)
Side Panels (1/1)
H
Top Panel (1)
Thin Shelves (18)
I
Middle Shelf (1)
K
Bottom Shelf (1)
Batch ID
located underneath.
L
Upper Dividers (5)
G
Lower Back Panels (6)
Upper Back Panel (1)
Hex Screws (32)
J
Use the Hex Tool.
Cam Posts & Cam Locks (20/20)
K1
K2
Use a Phillips Screwdriver.
Phillips Screws & Casters (16/4)
L1
L2
Use a Phillips Screwdriver.
Advertisement
Related Manuals for ECR 4 Kids ELR-17257
Summary of Contents for ECR 4 Kids ELR-17257
- Page 1 Left & Right Lower Dividers (5) Lower Back Panels (6) Side Panels (1/1) 30 Section Storage Cabinet Model# ELR-17257 Upper Back Panel (1) Top Panel (1) WARNING: Thin Shelves (18) Hex Screws (32) Adult Assembly Required. Middle Shelf (1) Two adults recommended.
- Page 2 Connect Top Panel to Upper Dividers Install the Casters onto Bottom Shelf Install the four Casters (L2) into the pre-drilled holes on the underside of the Bottom Shelf (D), Install ten Cam Posts (K1) into the threaded plastic inserts on the underside of Top Panel (B) with four Phillips Screws (L1) per caster, using a Phillips screwdriver.
- Page 3 Insert the Lower Back Panels Insert Left Side Lower Back Panel Slide one Lower Back Panel (G) into the grooves on the underside of Middle Shelf (C) and Slide four Lower Back Panels (G) into the rear grooves on the Lower Dividers (F) as shown, until fully seated into the groove on the topside of the Bottom Shelf (D).
- Page 4 Insert Remaining Back Panels Insert the Thin Shelves Slide the remaining Lower Back Panel (G) into the grooves on the underside of Middle Shelf (C) Slide the Thin Shelves (I) into the grooves on the sides of Upper & Lower Dividers (E, F) and topside of the Bottom Shelf (D) as shown, until fully seated into the groove on the inside of and insides of the Side Panels (A1, A2) as shown, until fully seated against the Back Panels.
- Page 5 Clean wood with a damp cloth or sponge Save this sheet in an accessible place. using warm water and mild soap. Wipe dry. Model Number: ELR-17257 Do not place near heat, moisture or vaporizer which may cause wood to warp Factory Code: and peel.
