ECR 4 Kids ELR-0450-A Quick Start Manual

San Diego, CA 92110 USA
www.ecr4kids.com

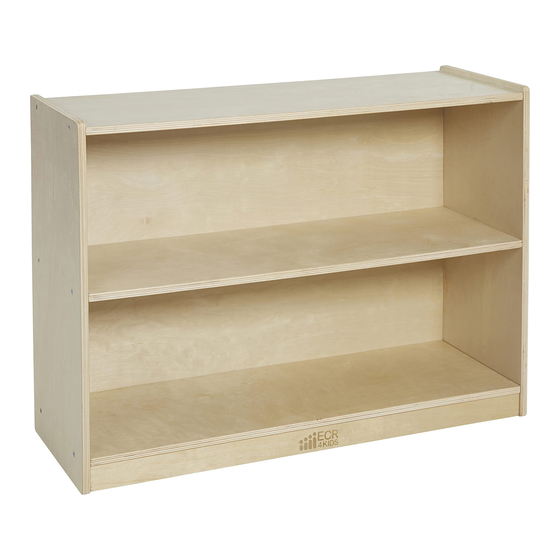

Two Shelf Storage Cabinet
with Back
Model# ELR-0450-A
WARNING:
Adult Assembly Required.
- Contains small parts, sharp points and edges.
- Do not stand, sit, kneel, climb, lean or pull on
unit for support.
- Never leave children unattended.
- Do not place unit near high heat or moisture.
- Adult supervision recommended.
Children climbing on furniture
can lead to death or serious
injury due to tipping. Secure
unit to wall using appropriate
hardware.

Parts List

BEFORE ASSEMBLING, MAKE
SURE YOU HAVE ALL THE PARTS
A Left & Right Side Panels (1/1)
A1
A2
Top Panel (1)
B
C Middle Shelf (1)
Bottom Shelf (1)
D
located underneath.
E Back Panels (2)
Hex Screws (12)
F
Use the Hex Tool.
Phillips Screws & Casters (16/4)
G
G1 G2
Screwdriver.
TOOLS INCLUDED
Hex Tool (1)
1

Install the Casters onto Bottom Shelf

Install the four Casters (G2) into the pre-drilled holes on the underside of the Bottom Shelf (D),
with four Phillips Screws (G1) per caster, using a Phillips screwdriver.
2

Install the Right Side Panel

Install Right Side Panel (A2) on to the Top Panel (B), Middle Shelf (C) & Bottom Shelf (D)
with six Hex Screws (F) using the Hex Tool.
Batch ID
Note: The grooves on the Top Panel, Middle and Bottom Shelves are away from the ground.
Use a
Phillips
TOOLS NEEDED
Phillips Screwdriver
Batch ID Sticker
See Next Page
