San Diego, CA 92110 USA
www.ecr4kids.com
20 Section

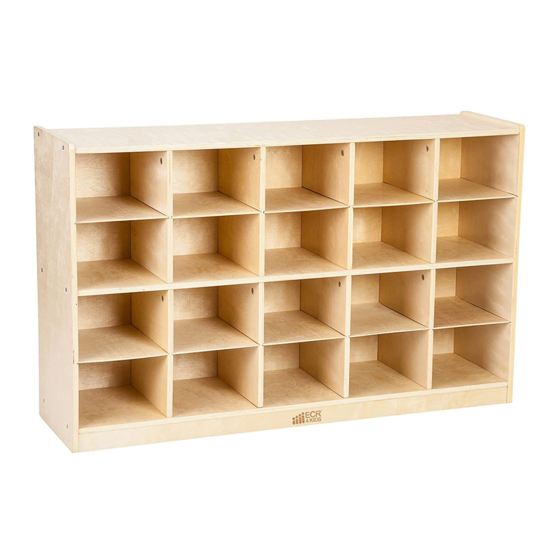

Storage Cabinet
Model# ELR-0426-A
WARNING:
Adult Assembly Required.
Two adults recommended.
- Contains small parts, sharp points and edges.
- Do not stand, sit, kneel, climb, lean or pull on
unit for support.
- Never leave children unattended.
- Do not place unit near high heat or moisture.
- Adult supervision recommended.
Children climbing on furniture can lead to
death or serious injury due to tipping.
Secure unit to wall using appropriate
hardware.
BEFORE ASSEMBLING, MAKE SURE YOU HAVE ALL THE PARTS
A
A1
B
C
D
E
Parts List
Left & Right
F
Side Panels (1/1)
A2
G
Top Panel (1)
H
I
Middle Shelf (1)
J
Bottom Shelf (1)
Batch ID
located underneath.
Dividers (8)
Cam Posts & Cam Locks (16/16)
I1
I2
Phillips Screws & Casters (16/4)
J1
J2
TOOLS INCLUDED
TOOLS NEEDED
Hex Tool (1)
Phillips Screwdriver
Back Panels (2)
Thin Shelves (10)
Hex Screws (28)
Use the Hex Tool.
Use a Phillips Screwdriver.
Use a Phillips Screwdriver.
Advertisement
Related Manuals for ECR 4 Kids 20 Section Storage Cabinet ELR-0426-A
Summary of Contents for ECR 4 Kids 20 Section Storage Cabinet ELR-0426-A
- Page 1 Parts List BEFORE ASSEMBLING, MAKE SURE YOU HAVE ALL THE PARTS San Diego, CA 92110 USA www.ecr4kids.com Left & Right Back Panels (2) Side Panels (1/1) 20 Section Storage Cabinet Model# ELR-0426-A Thin Shelves (10) Top Panel (1) Hex Screws (28) Use the Hex Tool.
- Page 2 Install the Casters onto Bottom Shelf Install Lower Dividers to Bottom Shelf Install the four Casters (J2) into the pre-drilled holes on the underside of the Bottom Shelf (D), Install the Lower Dividers (E) on to the Bottom Shelf (D) with eight Hex Screws (H) using the with four Phillips Screws (J1) per caster, using a Phillips screwdriver.
- Page 3 Install Right Side Panel Install Left Side Panel Install the Right Side Panel (A2) on to the Top Panel (B), Middle Shelf (C) and Bottom Shelf (D) Install the Left Side Panel (A1) on to the Top Panel (B), Middle Shelf (C) and Bottom Shelf (D) with six Hex Screws (H) using the Hex Tool.
- Page 4 We appreciate your purchase of the 20 Section Storage Cabinet. ECR4KIDS has made every effort to supply a quality product that with proper use and care, will provide many years of trouble-free use. We appreciate your purchase of the 20 Section Storage Cabinet. ECR4KIDS has made every effort to supply a quality product that with proper If you experience any difficulties with this product, please email us at use and care, will provide many years of trouble-free use.
