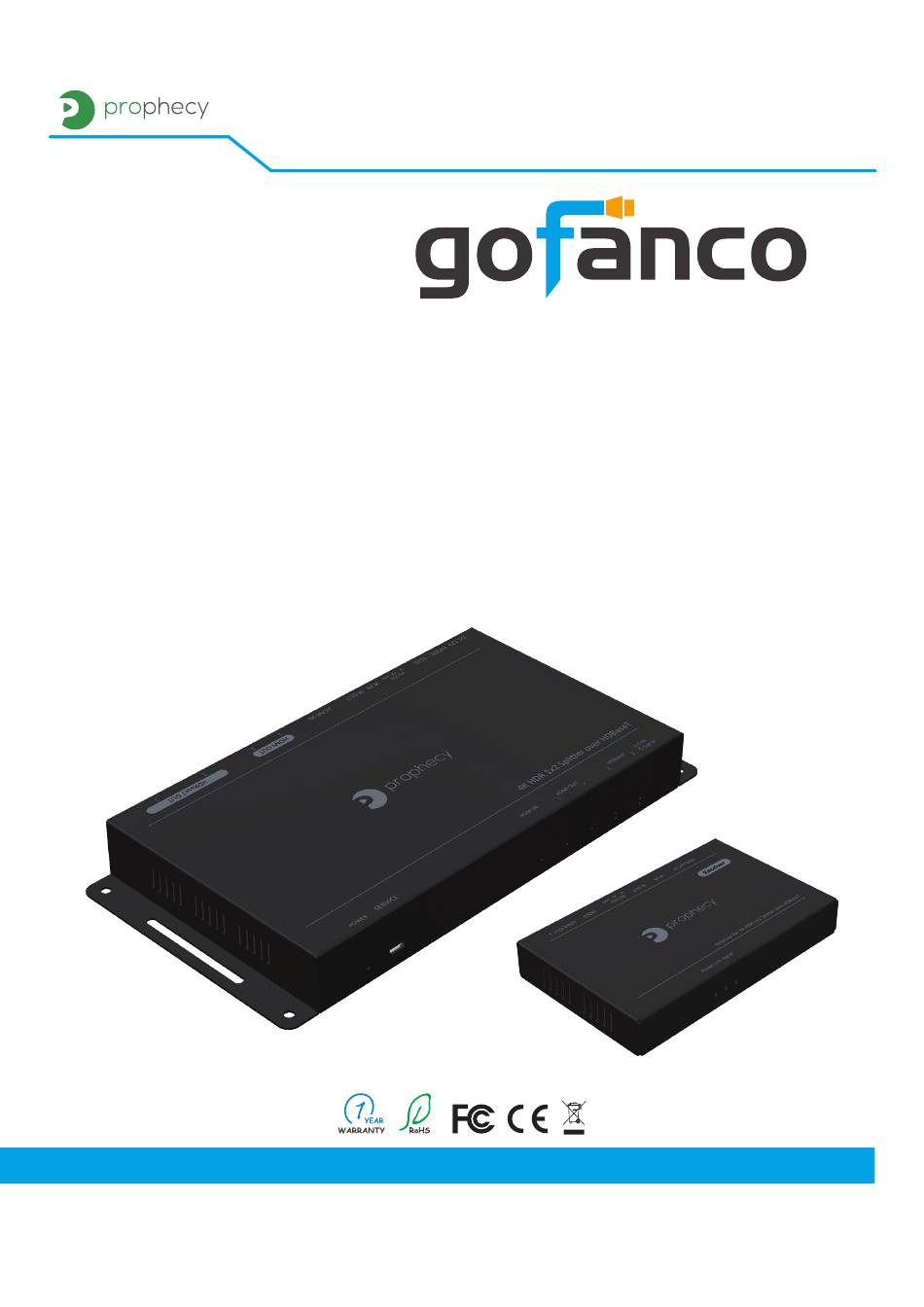

- Page 1 ® PRO-HDBaseT2P 1x2 4K-HDR HDMI Splitter over Single Cat.x with HDBaseT-Lite, IR, RS-232, PoC & Loopout User‘s Guide PRO-HDBaseT2P-RX Made in Taiwan...
- Page 2 ® PRO-HDBaseT2P Congratulations for owning a gofanco product. Our products aim to meet all your connectivity needs wherever you go. Have fun with our products! Please read this manual carefully before first use. If you need more information about our products, please visit www.gofanco.com.
-
Page 3: Table Of Contents
® PRO-HDBaseT2P Table of Contents 1. Safety and Notice ..............2. -
Page 4: Introduction
® PRO-HDBaseT2P 2. Introduction The PRO-HDBaseT2P 1x2 4K-HDR HDMI Splitter over Single Cat.x with HDBaseT-Lite, IR, RS-232, PoC & Loopout provides the most cost effective and advanced HDMI splitter solution on the market, by which the high de- finition video and high quality audio can be transmitted up to 4 different locations without losing quality. -
Page 5: Package Contents
® PRO-HDBaseT2P • Supports full frequency IR signal from 30KHz to 56KHz • Bi-directional IR path-through • RS-232 Pass-Thru: Up to 115,200bps • Video latency less than 20 us. • Easy installation HDR = High Dynamic Range. The video bandwidth of 4K2K@60 4:2:0 10bits (HDR) is 384 MHz, and the 4K2K@60 4:4:4 8bits is 594MHz. -
Page 6: Specification
® PRO-HDBaseT2P 5. Specifications Item Description Technical Role of usage 1x2 Distribution Amplifier (Splitter) HDMI compliance HDMI 2.0a HDCP compliance Video bandwidth Single-link 600MHz [18Gbps] Video support HDR 4K2K@60(4:2:0 10bits)/ 4K2K@60 (4:4:4 8bits) Transmission over 1080p@60 60m (198ft) [CAT5e] UTP cable 4K2K@60 (4:4:4 8bit) 35m (114ft) [CAT5e] ESD protection Human body model —... -
Page 7: Panel Description
® PRO-HDBaseT2P 6. Panel Description PRO-HDBaseT2P Front Panel 1. Power LED: Power indicator 2. Micro-USB: For technical support only [firmware update] 3. HDMI Signal LED: Input, Loopout 1, Loopout 2 (from left to right) 4. Link Receiver LED: Link LED indicator 1-2 5. - Page 8 ® PRO-HDBaseT2P 9. RS-232(terminal block format): The order of RS-232 pin are TX, RX, GND (from the left side to the right) 10. IR Receiver: Infrared 3.5mm socket for plugging in the extension cable of IR receiver 11. IR Blaster: Infrared 3.5mm socket for plugging in the extension cable of IR blaster 12.
- Page 9 ® PRO-HDBaseT2P PRO-HDBaseT2P-RX Front Panel 1. LED: Power LED, Link LED, Signal LED (1) Power LED: Power indicator LED (2) Link LED: Link indicator LED (3) Signal LED: When receiving unit receive the HDMI signal, the LED light will shine Rear Panel 2.
-
Page 10: Connection Diagram
® PRO-HDBaseT2P 7. Connection Diagram... -
Page 11: Ir Pass-Through
® PRO-HDBaseT2P 8. IR Pass-Through IR Extenders IR Blaster IR Receiver IR Sockets IR BLASTER: plug in the IR blaster to emit all IR command signals received from the IR receiver from the other end to control the devices corresponding to the IR signals. IR RECEIVER: plug in the IR receiver to receive all IR command signals from the IR remote controls of the corresponding devices. -
Page 12: Notice
® PRO-HDBaseT2P 9. Notice 1. Short blackout periods are expected when new monitors are connected to the splitter. The splitter will do Automatic EDID learning which analyzes the newly connected monitor to see if the EDID for the HDMI input is necessary to update! 2. - Page 13 ® PRO-HDBaseT2P (6)Device power on (7)Press Program MCU symbol to do firmware update (8)Once update process is done, please power cycle the device and set the dip switch [pin 1, pin 2] to [ (9)Power cycle the device Output 2 firmware update (1)Please adjust dip switch [pin1, pin 2]=[ ...
- Page 14 ® PRO-HDBaseT2P 10. Limited Warranty The SELLER warrants the PRO-HDBaseT2P 1x2 4K-HDR HDMI Splitter over Sing- le Cat.x with HDBaseT-Lite, IR, RS-232, PoC & Loopout free from defects in the material and workmanship for 1 year from the date of purchase from the SELLER or an authorized dealer.
- Page 15 Disclaimer The product name and brand name may be registered trademarks of related manufacturers. TM and ® may be omitted on the user‘s guide. The pictures on the user‘s guide are just for reference, and there may be some slight differences with the actual products. We reserve the rights to make changes without prior notice to a product or system described herein to improve reliability, function, or design.
- Page 16 ® Thank you for choosing gofanco www.gofanco.com Mar, 2019 Ver. A Copyright © by gofanco, LLC. All rights reserved.
