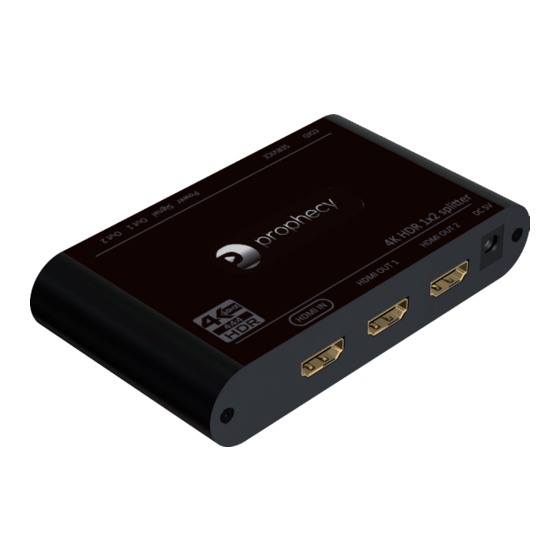

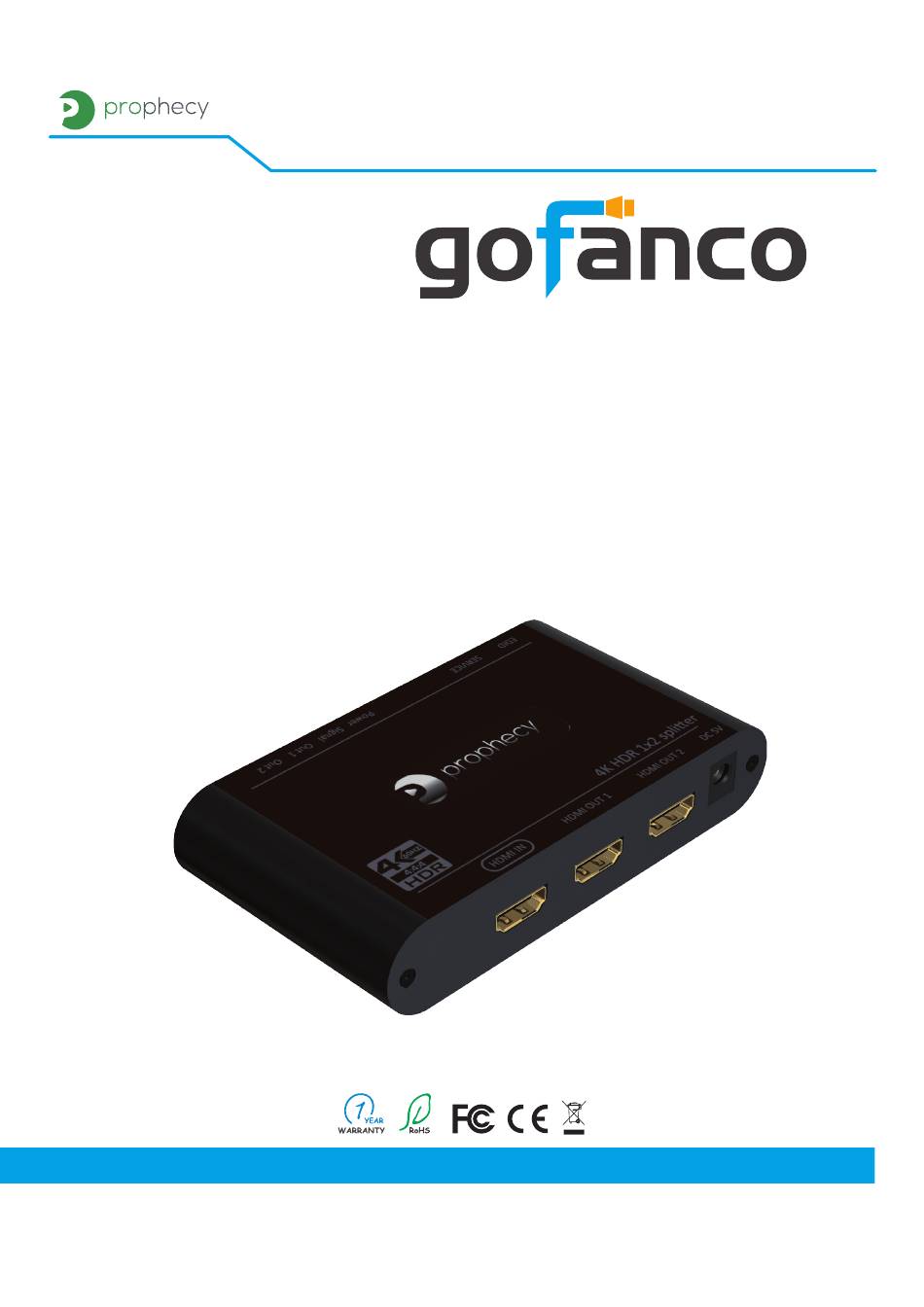

- Page 1 ® PRO-HDRsplit2P 4K HDR 1x2 splitter User‘s Guide Made in Taiwan...
- Page 2 ® PRO-HDRsplit2P Congratulations for owning a gofanco product. Our products aim to meet all your connectivity needs wherever you go. Have fun with our products! Please read this manual carefully before first use. If you need more information about our products, please visit www.gofanco.com.
- Page 3 ® PRO-HDRsplit2P 1. Introduction The PRO-HDRsplit2P 1x2 HDMI 2.0a Splitter with Built-in & User Adjustable EDID Management provides the most cost effective and advanced HDMI splitter solution on the market, by which the high definition video and high quali- ty audio can be transmitted to 2 different locations without losing quality. PRO-HDRsplit2P supports HDR and the true 4K2K video! With built-in USB firmware update mechanism, the compa- tibility among countless HDMI sources and receivers can be further guaranteed. With the upmost HDR/4K2K@60 4:4:4 8bits and high definition audio support, PRO-HDRsplit2P is suitable for high quality HDMI broadcasting, digital signage and education applications! 2. Features • HDMI 2.0a compliant • Supports 4K2K@60 4:4:4 8bits •...
-
Page 4: Package Contents
® PRO-HDRsplit2P • Mini-USB firmware update for expanding compatibility • Supports Dolby Digital, DTS-HD and Dolby TrueHD audio • Easy installation HDR = High Dynamic Range. The video bandwidth of 4K2K@60 4:2:0 10bits (HDR) is 384 MHz, and the 4K2K@60 4:4:4 8bits is 594MHz. Does NOT support resolution downscaling from 4K2K@60 4:2:2 to 1080P (1) Resolution downscaling from 4K2K@60 4:2:2 to 1080P (2) Frame rate conversion (3) 4K2K@60 4:2:2 to 4K2K@60 4:2:0... -
Page 5: Specifications
® PRO-HDRsplit2P 4. Specifications Item Description Role of usage 1x2 Distribution Amplifier (Splitter) HDMI compliance HDMI 2.0a HDCP compliance HDCP 2.2 / 1.4 Single-link 600MHz [18Gbps] Video bandwidth Video support HDR 4K2K@60 (4:2:0 10bits) / 4K2K@60 (4:4:4 8bits) DTS-HD Master Audio, Dolby TrueHD Dolby Digital, Audio support DTS, DVD-Audio, LPCM, SACD, MPCM Human body model — ±15kV [air-gap discharge] & ESD protection ±8kV [contact discharge] 4-layer board [impedance control — PCB stack-up differential 100Ω; single 50Ω] Firmware update Feasible via Mini-USB port Input 1x HDMI Output 2x HDMI HDMI connector Type A [19-pin female] Dip switch EDID Mode selection Mechanical Housing Metal enclosure Model 119 x 63 x 24mm [4.7" x 2.5" x 0.9"] Dimensions Package 198 x 137x 74mm [7.8" x 5.39" x 2.91"]... -
Page 6: Connection Diagram
® PRO-HDRsplit2P 5. Connection Diagram... -
Page 7: Panel Description
® PRO-HDRsplit2P 6. Panel Description Front Panel 1. EDID MODE: See more detail in the DIP SWITCH SETTING section 2. Mini-USB: For technical support only [firmware update] 3. Power LED: Lights on when device is ready 4. Signal LED: Input signal LED indicator 5. Signal LED: Output 1-2 signal LED indicator Rear Panel 6. HDMI IN: Connect to a HDMI input source 7. HDMI OUT1: HDMI outputs to HDMI displays 8. HDMI OUT2: HDMI outputs to HDMI displays 9. +5V DC: Connect to the +5V DC 2A power supply unit Signal LED light on when device is connect to source and display. -
Page 8: Dip Switch Setting
® PRO-HDRsplit2P 7. Dip Switch Setting On [ ] Off [ DIP Switch Position Description Pin 2 Pin 3 Pin 4 Ultra HD(4K2K@60) – 8/10/12bit 3D HDR video & 7.1ch audio, 4K to 1080p Auto Scaling Ultra HD(4K2K@60) – 8/10/12bit 3D HDR video & 2ch audio, 4K to 1080p Auto Scaling Ultra HD(4K2K@30)(4K2K@60 420) – 8bit 3D HDR video & 7.1ch audio, 4K to 1080p Auto Scaling AVR Mode, 4K to 1080p Auto Scaling ... -
Page 9: Installation
® PRO-HDRsplit2P 8. Installation Broadcasts HDMI signal to 2 HDMI displays! • Switch off all devices, including monitors. • Connect to the displays. • Connect an HDMI source (such as a Blu-ray Disc player) to the HDMI In. • Plug in 5V DC power supply. • Power on the HDMI monitors. • Power on the HDMI source. 9. Notice If somehow user cannot get video output, please try to adjust EDID dip switch to “[pin2,pin3,pin4]=[ - - ]” or “[pin2,pin3,pin4]=[ - - ]” for trouble shooting. Under “[pin2,pin3,pin4]=[ ... - Page 10 ® PRO-HDRsplit2P Select to [pin2,pin3,pin4]=[ - - ] - Learning EDID from output 1 - - 1) Set the dip switch to “[pin2,pin3,pin4]=[ ]” 2) Power on the device 3) It will automatically learn EDID from output 1 If the user wants to change EDID mode, please power cycle the device after setting dip switch. While connecting a new monitor to the splitter under “[pin2,pin3,pin4]=[ ...
- Page 11 ® PRO-HDRsplit2P 11. Limited Warranty The SELLER warrants the PRO-HDRsplit2P 1x2 HDMI 2.0a Splitter with Built-in & User Adjustable EDID Management free from defects in the material and work- manship for 1 year from the date of purchase from the SELLER or an authorized dealer. Should this product fail to be in good working order within 1 year warran- ty period, The SELLER, at its option, repair or replace the unit, provided that the unit has not been subjected to accident, disaster, abuse or any unauthorized mo- difications including static discharge and power surge. This warranty is offered by the SELLER for its BUYER with direct transaction only. This warranty is void if the warranty seal on the metal housing is broken. Unit that fails under conditions other than those covered will be repaired at the current price of parts and labor in effect at the time of repair. Such repairs are warranted for 90 days from the day of reshipment to the BUYER. If the unit is delivered by mail, customers agree to insure the unit or assume the risk of loss or damage in transit. Under no circumstances will a unit be accepted without a return authorization number.
- Page 12 ® Thank you for choosing gofanco www.gofanco.com Oct, 2018 Ver. C Copyright © 2018 by gofanco, LLC. All rights reserved.
