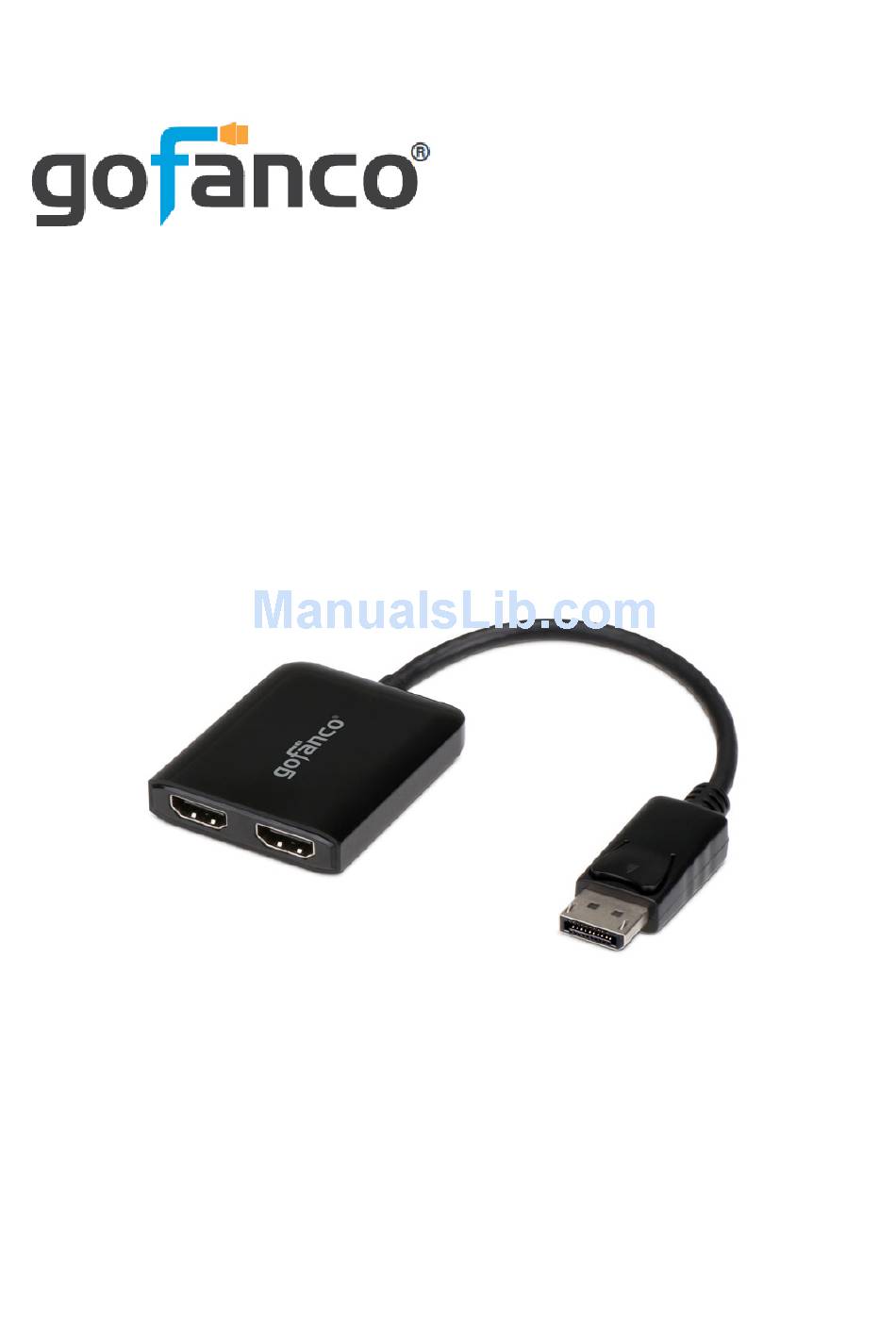

- Page 1 DisplayPort MST Hub to 2x HDMI User's Guide P/N: DPMST2HDMI G4-0039A...
- Page 2 Thank you for purchasing from gofanco. Our products aim to meet all your connectivity needs wherever you go. For optimum performance and safety, please read the instructions carefully and keep this User’s Guide for future reference. If you need more information about our products, please visit www.gofanco.com.
-
Page 3: Specifications
Introduction gofanco DisplayPort MST Hub to 2x HDMI (part# DPMST2HDMI) enables you to connect with 2 external monitors to your DisplayPort enabled computer for multitasking. Specifications Output Signal HDMI Ports Compliance DP 1.2 Input: 1x DisplayPort, Male Connectors Output: 2x HDMI, Female... - Page 4 Product Layout Power Jack (Micro-USB) HDMI Output (x2) DP IN Figure 1: Layout DP IN: Connect to PC's DisplayPort • HDMI Output (x2): Connect to HDMI • displays with HDMI cables (not included) Or connect to HDMI adapters (not included) to DVI or VGA to use with DVI/VGA displays Power Jack (Micro-USB): Connect to PC's...
-
Page 5: Hardware Installation
Hardware Installation Important: If the source DP output doesn't support DP 1.2, the Multiple Stream Transport function will be disabled and this hub becomes a Splitter, mirroring your video source across all displays. Power off all devices you plan to connect to the unit. - Page 6 Blank Page...
- Page 7 Disclaimer The product name and brand name may be registered trademarks of related manufacturers. TM and ® may be omitted on the user’s guide. The pictures on the user’s guide are just for reference, and there may be some slight differences with the actual products.
- Page 8 Thank you for choosing gofanco www.gofanco.com...
