2/4 Port HDMI Splitter 4K
- Black
P/N: Splitter2P/Splitter4P
G4-0023A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Splitter2P and is the answer not in the manual?

Questions and answers

Related Manuals for gofanco Splitter2P

Summary of Contents for gofanco Splitter2P

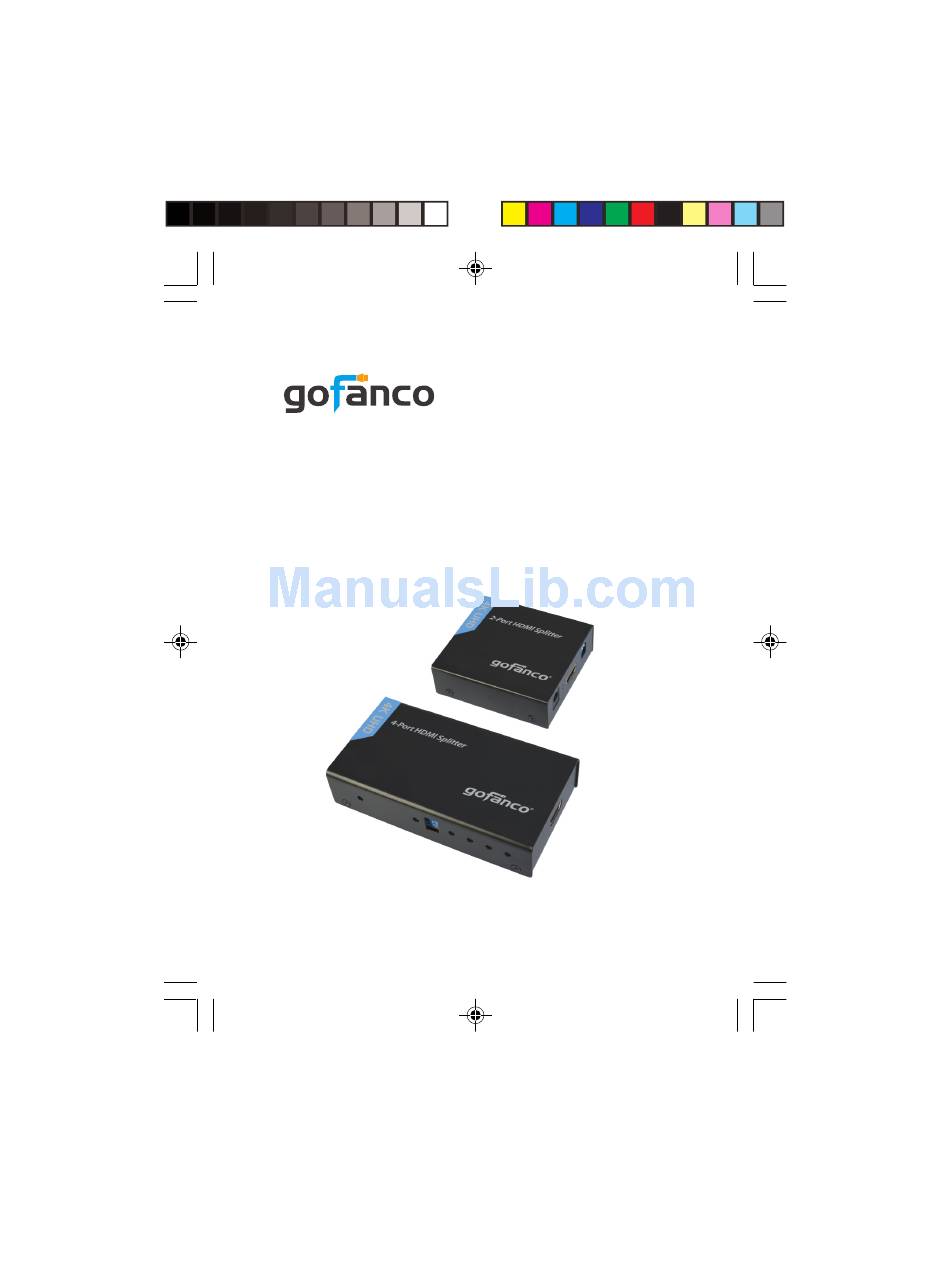

  • Page 1 ® 2/4 Port HDMI Splitter 4K - Black P/N: Splitter2P/Splitter4P G4-0023A...
  • Page 2 Congratulations for owning a gofanco product. Our products aim to meet all your connectivity needs wherever you go. Have fun with our products! Please read this manual carefully before first use. If you need more information about our products, please visit www.gofanco.com.

  • Page 3: Specifications

    Introduction gofanco 2/4-Port HDMI Splitter 4K - Black ( part# Splitter2P/ Splitter4P ) distributes one HDMI source signal to two/four displays simultaneously. Specifications Part No. Splitter2P Splitter4P HDMI Output Port Spec. HDMI v2.0 Compliance HDCP 1.4, 36-bit deep Color, 3D Video Bandwidth 10.2Gbps...
  • Page 4 Layout EDID switches Power plug HDMI Input Input LED HDMI Output HDMI Output Output LEDs Figure 1 & 2: 2-Port HDMI Splitter 4K - Black HDMI Output Power LED Input LED Output LEDs EDID switches Power plug HDMI Input HDMI Outputs Figure 3 &...
  • Page 5 Read EDID information from display with the lowest resolution and use that resolution for all HDMl outputs. - Copy EDID: Splitter2P: Read EDID information from display connected to Output 1 and use that resolution for both HDMI outputs. If there's no display connected to Output 1, Output 2 will display in 1080p resolution.

  • Page 6: Hardware Installation

    HDMI outputs. If there's no display connected to Output 4, all Outputs will display in 1080p resolution. - 1080p output: Display 1080p resolution to all HDMI outputs. - 4Kx2K output: Display 4K resolution to all HDMI outputs. • Power LED : On when the power is connected •...
  • Page 7 Application Split HDMI signals from an HDMI device (such as DVD player or PC ) to 2/4 displays simultaneously at high resolutions up to 4K. HDMI device (DVD player, PC, etc.) HDMI display HDMI display HDMI display HDMI display * 3D support for 1080p (max)
  • Page 8 ® Thank you for choosing gofanco www.gofanco.com...

This manual is also suitable for:

Splitter4p
