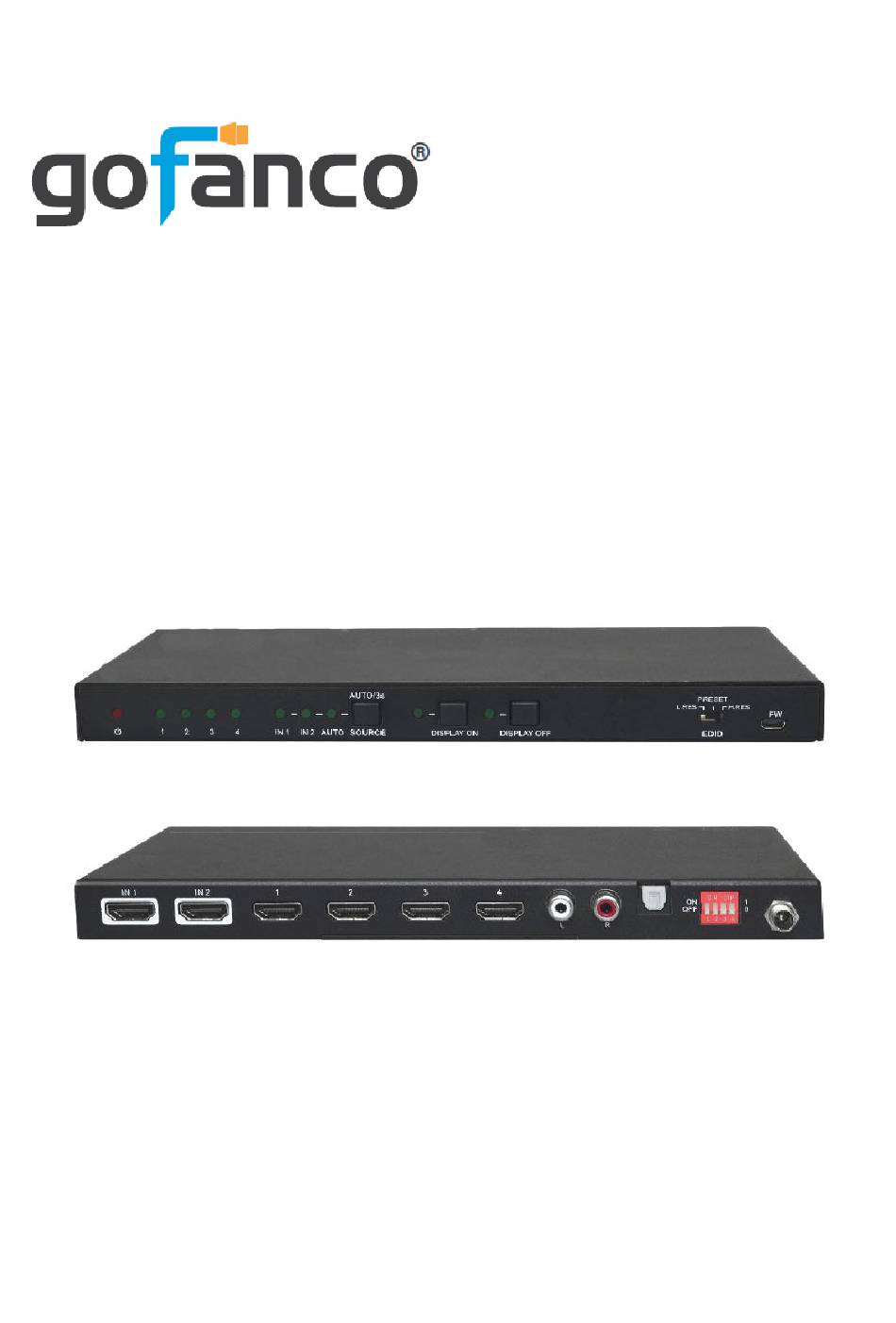

- Page 1 HDMI 2.0 2x4 Splitter 4K with Downscaling User's Guide P/N: HDSplit24 G4-0049A...
- Page 2 Thank you for purchasing from gofanco. Our products aim to meet all your connectivity needs wherever you go. For optimum performance and safety, please read the instructions carefully and keep this User’s Guide for future reference. If you need more information about our products, please visit www.gofanco.com.
- Page 3 Important Safety Notices Please read safety instructions carefully before installation and operation. • Do not expose this unit to rain, heavy moisture, or liquid • Do not repair the device or open the housing without professional guidance to avoid electric shocks. Doing so may void your warranty •...
- Page 4 Introduction The HDMI 2.0 2x4 Splitter 4K with Downscaling allows you to distribute content from any of the 2 HDMI source devices to any of the 4 HDMI display devices, it supports resolutions up to 4Kx2K@60Hz YUV 4:4:4 8bit. Features •...
- Page 5 Installation Requirements HDMI source device (computer, DVD player, XBOX, PS3, etc) HDMI display device (SDTV/Monitor, HDTV/Monitor, projector, etc.) UTP/STP CAT5e/6 cable following IEEE-568B wiring standard...
-
Page 6: Product Layout
Product Layout Front Panel 1. Power LED Lights up when power is detected 2. Output LEDs Lights up when HDMI ouput is active A) Press to switch to the next source device, the corresponding LED will light up B) Automatic Switching Mode*: Press and hold down for at least 3 seconds, the splitter will automatically select the first available active source device starting with HDMI Input 1. -
Page 7: Hardware Installation
Back Panel 1. HDMI Inputs Connect HDMI source devices here 2. HDMI Outputs Connect HDMI display devices here 3. RCA Audio Output Analog Stereo audio output 4. SPDIF Output Toslink connector for optical digital audio output 5. EDID DIP Switch 4-Pin DIP switch for setting EDID 6. -
Page 8: Connection Diagram
Connection Diagram... -
Page 9: Edid Management
EDID Management The Extended Display Identification Data (EDID) is used by the source device to match its video resolution with the connected display(s). By default, the source device obtains its EDID from the first connected display. However, since displays with different capabilities are often connected to the splitter, the 3-pin DIP switch on the front panel and the 4-pin DIP switch on the rear panel can be used in combination to set the... - Page 10 Predefined EDID When the 3-Pin DIP switch on the front panel is in PRESET mode, the 4-Pin DIP switch on the rear panel can be used to set the EDID to a built-in fixed value. Use the following table to determine the settings for the 4-Pin DIP switch for specific video resolution and audio capabilities.
-
Page 11: Firmware Upgrade
Firmware Upgrade Firmware files can be downloaded from gofanco's website, when they become available. Go to www.gofanco.com/download, and use the part number to search for your device. Follow the steps below to upgrade the firmware through the Micro USB port. -
Page 12: Troubleshooting
Troubleshooting Problem Potential Cause Solution Check whether the HDMI The HDMI cables may not be cables are connected connected properly or may be properly and in good damaged working condition Color loss or no video signal on HDMI display Make sure the resolution of The display is not compatible the display(s) is compatible with the current output... -
Page 13: Specifications
Specifications HDMI v2.0 HDCP v2.2 Input Connector 2 HDMI Output Connector 4 HDMI Resolution (Input & Up to 4Kx2K@60Hz YUV 4:4:4 8Bit Output) Bandwidth 18Gbps LPCM 7.1, Dolby Atmos, Dolby TrueHD, HDMI Audio Dolby Digital Plus, DTS:X, and DTS-HD Master Audio, pass-through Stereo Analog L/R Audio Toslink Digital Audio... - Page 14 Blank Page...
- Page 15 Disclaimer The product name and brand name may be registered trademarks of related manufacturers. TM and ® may be omitted on the user’s guide. The pictures on the user’s guide are just for reference, and there may be some slight differences with the actual products.
- Page 16 Thank you for choosing gofanco www.gofanco.com...
