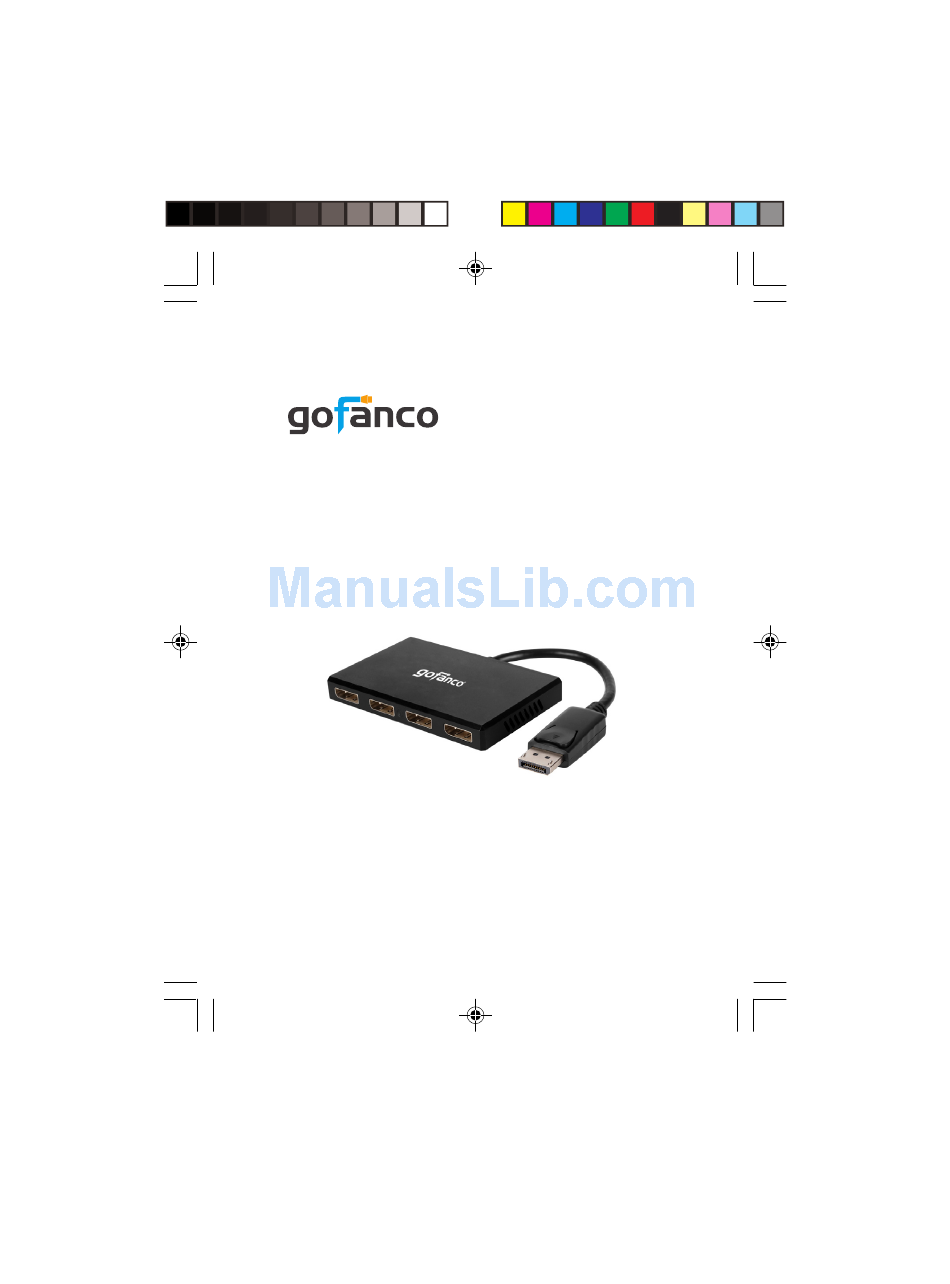

- Page 1 ® DisplayPort 1.2 4-Port MST Hub / Splitter - Black P/N: DPMSTHub G4-0021A...
- Page 2 Congratulations for owning a gofanco product. Our products aim to meet all your connectivity needs wherever you go. Have fun with our products! Please read this manual carefully before first use. If you need more information about our products, please visit www.gofanco.com.
-
Page 3: Specifications
Introduction gofanco DisplayPort 1.2 4-Port MST Hub / Splitter - Black (part# DPMSTHub) enables you to connect with four external monitors to your DP enabled computer for multitasking. Specifications Output Signal DisplayPort Ports Compliance DP 1.2 Input: 1x DisplayPort, Male... - Page 4 Layout Power jack (Micro-USB) DP output (x4) DP IN Figure 1: DisplayPort 1.2 4-Port MST Hub / Splitter - Black • DP IN: Connect to PC's DisplayPort • DP output (x4): Connect to DisplayPort displays with DP cables (not included) Or connect to DP adapters (not included) to HDMI, DVI or VGA to use with HDMI/DVI/VGA displays •...
-
Page 5: Hardware Installation
Hardware Installation Important: If the source DP output doesn't support DP 1.2, the Multiple Stream Transport function will be disabled and this hub becomes a Splitter, mirroring your video source across all displays. 1. Power off all devices you plan to connect to the unit. 2. - Page 6 Monitors & resolutions support The total bandwidth of 21.6 Gbps is shared among all attached monitors. If the total bandwidth is consumed with high resolutions by the first few monitors, the remaining monitors will be disabled (no video output). Please refer to the examples below: Average resolution bandwidth allocation: •...
- Page 7 For AMD Eyefinity Video Cards Go to AMD Radeon Settings, and click Eyefinity for advanced display mode setup such as video wall. Refer to your graphic card menu for more details. Figure 3...
- Page 8 ® Thank you for choosing gofanco www.gofanco.com...
