To set the seed rate for the Amazone DMC Primera 12001-2C:

1. Perform a calibration test before setting the desired spread rate.
2. Carry out the calibration test for seed to ensure the pre-set and actual spread rates match.
3. The maximum seed rate is 223 lb/ac (250 kg/ha) using 2 metering units.
4. The minimum seed rate is 1.78 lb/ac using 1 metering unit.
5. The spread rates are based on a working speed of 15 km/h.
6. Always recalibrate if the seed type, grain size, shape, weight, or dressing changes, or after changing metering rollers.

This answer is automatically generated

Леонид

April 1, 2025

Как насьраивается норма высева

1 comments:

Mr. Anderson

April 1, 2025

To set the sowing rate on the Amazone DMC Primera 12001-2C:

1. Perform a calibration test to ensure the pre-set and actual sowing rates match.
2. Calibrate separately for seed and fertiliser.
3. Adjust settings based on the number of metering units:
- Maximum seed rate: 223 lb/ac (250 kg/ha) with 2 metering units.
- Minimum seed rate: 1.78 lb/ac with 1 metering unit.
4. The spread rates are based on a working speed of 15 km/h.
5. Perform calibration when:
- Changing seed or fertiliser type.
- The same seed type is used but size, shape, weight, or dressing differ.
- Metering rollers are changed.

This answer is automatically generated

Summary of Contents for Amazone DMC Primera 12001-2C

Page 1 Operating Manual AMAz EUROTECHNIKA DMC Primera 12001-2C Trailed seed drill Please read this operating manual before first commis- MG6479 BAG0200.3 03.20 sioning. Printed in Germany Keep it in a safe place for future use. en_us...
Page 2 Reading the instruction Manual and following it should seem to be in- convenient and superfluous as it is not enough to hear from others and to realize that a machine is good, to buy it and to believe that now everything should work by itself.
Page 3 Tel.: + (846) 931-40-93 Fax: + (846) 931-40-97 E-mail: info@eurotechnika.ru Spare part orders Online spare parts catalogue: www.amazone.de When ordering spare parts, always specify the (ten-digit) machine identification number. Formalities of the operating manual Document number: MG6479 Compilation date: 03.20 ...
Page 4 Send us your suggestions by fax. AMAZONEN-WERKE H. DREYER GmbH & Co. KG Postfach 51 D-49202 Hasbergen Tel.: + 49 (0)5405 501-0 Fax: + 49 (0)5405 501-234 E-mail: amazone@amazone.de DMC12001-2C BAG0200.3 03.20...
Page 5: Table Of Contents
Table of Contents User Information ..................8 Purpose of the document ......................8 Locations in the operating manual ................... 8 Diagrams used ......................... 8 General Safety Instructions ................ 9 Obligations and liability ......................9 Representation of safety symbols ..................11 Organisational measures .......................
Page 6 Table of Contents Dual-circuit service brake system ..................46 5.3.1 Coupling the brake and supply lines ..................48 5.3.2 Uncoupling the brake and supply lines ................. 49 5.3.3 Parking brake ........................50 Foldable wheel chocks ......................51 Safety chain between tractor and implements ..............51 Safety device against unauthorised use ................
Page 7 Table of Contents Setting the spread rate and calibration test ................. 105 8.2.1 Calibration test ........................106 Adjusting blower fan speed ....................108 8.3.1 Blower speed table ......................108 8.3.2 Adjusting the blower speed on the machine pressure limiting valve ........108 Adjusting the placement depth of the seed ................
Page 8: User Information
User Information User Information The User Information section supplies information on use of the oper- ating manual. Purpose of the document This operating manual • Describes the operation and maintenance of the machine. • Provides important information on safe and efficient handling of the machine.
Page 9: General Safety Instructions
General Safety Instructions General Safety Instructions This section contains important information on safe operation of the machine. Obligations and liability Comply with the instructions in the operating manual Knowledge of the basic safety information and safety regulations is a basic requirement for safe handling and fault-free machine operation. Obligations of the operator The operator is obliged only to let those people work with/on the ma- chine who...
Page 10 General Safety Instructions Risks in handling the machine The machine has been constructed to the state-of-the art and the recognised rules of safety. However, there may be risks and re- strictions which occur when operating the machine For the health and safety of the user or third persons, •...
Page 11: Representation Of Safety Symbols
General Safety Instructions Representation of safety symbols Safety instructions are indicated by the triangular safety symbol and the highlighted signal word. The signal word (DANGER, WARNING, CAUTION) describes the gravity of the risk and has the following sig- nificance: DANGER Indicates an immediate high risk which will result in death or serious physical injury (loss of body parts or long term damage) if not avoided.
Page 12: Organisational Measures
General Safety Instructions Organisational measures The operator must provide the necessary personal protective equip- ment in accordance with the information provided by the manufactur- er of the crop protection agent to be used, such as: Chemical-resistant gloves, • A chemical-resistant overall, •...
Page 13: User Training
General Safety Instructions User training Only those people who have been trained and instructed may work with/on the machine. The operator must clearly specify the responsi- bilities of the people charged with operation, maintenance and repair work. People being trained may only work with/on the machine under the supervision of an experienced person.
Page 14: Safety Measures In Normal Operation
General Safety Instructions Safety measures in normal operation Only operate the machine if all the safety and protection equipment is fully functional. Check the machine at least once a day for visible damage and check the function of the safety and protection equipment. Dangers from residual energy Note that there may be residual mechanical, hydraulic, pneumatic and electrical/electronic energy on the machine.
Page 15: Spare And Wear Parts And Aids
Immediately replace any machine parts which are not in a perfect state. Use only genuine AMAZONE spare and wear parts or the parts cleared by AMAZONEN-WERKE so that the operating permit retains its validity in accordance with national and international regulations.
Page 16: Warning Labels And Other Signs On The Machine
General Safety Instructions 2.13 Warning labels and other signs on the machine Always keep all the warning labels of the machine clean and in a legi- ble state. Replace illegible warning labels. You can obtain the warning labels from your dealer using the order number (e.g. MD 075). Warning pictorial - structure Warning labels indicate dangers on and around the implement and warn for hazards.
Page 17: Warning Labels And Other Safety Markings On The Implement
General Safety Instructions 2.13.1 Warning labels and other safety markings on the implement Positioning of warning labels and other labels The following diagrams show the arrangement of the warning labels on the machine. Fig. 1 DMC12001-2C BAG0200.3 03.20...
Page 18 General Safety Instructions Order number and explanation Warning labels MO003 WARNING MOVING WING HAZARD • Make sure nobody is in the danger area. MD004 WARNING PINCH HAZARD Secure tractor and machine and wait until • all parts have stopped before reaching into danger area: Make sure nobody is in the danger area or •...
Page 19 General Safety Instructions MO010 WARNING ELECTROCUTION HAZARD • Never touch any power line with the ma- chine. • Always keep a safe distance from all power lines during transport and folding or unfold- ing the machine’s components. Note that the voltage can also flash over •...
Page 20 General Safety Instructions MO024 WARNING RECOMMEND TORQUE 738 ft lbs – 1000 Nm MD028 WARNING HIGH PRESSURE HYDRAULIC OIL IS HAZARDOUS Never use your hands to locate or plug any • leak in the hydraulic hoses. • If hydraulic oil penetrates your skin, seek immediate medical attention.
Page 21 General Safety Instructions MO036 WARNING SKIP HAZARD Loss of machine control can result in death • or serious injury. • Do not exceed transportation speed. MO039 WARNING LOSS HAZARD Always use safety chain. • Consult operator’s manual for details. • MO043 WARNING Read and understand the operator’s manu-...
Page 22 General Safety Instructions MO045 WARNING OVERHEAD CRUSH HAZARD Secure the raised machine parts against • accidental lowering by using hydraulic or mechanical locking devices before entering the danger area. MO046 WARNING Be sure to secure the tractor and the ma- •...
Page 23: Hazards If Safety Information Is Not Observed
General Safety Instructions 2.14 Hazards if safety information is not observed Nonobservance of the safety information • Can pose both a danger to people and also to the environment and machine. Can lead to the loss of all warranty claims. •...
Page 24: Safety Information For Users
General Safety Instructions 2.16 Safety information for users WARNING Risk of contusions, cuts, dragging, catching or knocks from in- sufficient traffic and operational safety. Before starting up the machine and the tractor, always check their traffic and operational safety. 2.16.1 General safety and accident prevention information Beside these instructions, comply with the general valid national •...
Page 25 General Safety Instructions When coupling and uncoupling machines, move the support • equipment (if available) to the appropriate position (stability). • When actuating the support equipment, there is a danger of inju- ry from contusion and cutting points. Be particularly careful when coupling the machine to the tractor •...
Page 26 General Safety Instructions Machine transportation Comply with the national road traffic regulations when using • public highways. Before moving off, check: • ο The correct connection of the supply lines ο The lighting system for damage, function and cleanliness The brake and hydraulic system for visible damage ο...
Page 27: Hydraulic System
• Replace the hydraulic hose line if it is damaged or worn. Only use AMAZONE original hydraulic hose lines. The hydraulic hose lines should not be used for longer than six • years, including any storage time of maximum two years. Even...
Page 28: Electrical System
General Safety Instructions 2.16.3 Electrical system When working on the electrical system, always disconnect the • battery (negative terminal). • Only use the prescribed fuses. If fuses are used with too high a rating, the electrical system will be destroyed – danger of fire. Ensure that the battery is connected correctly - firstly connect the •...
Page 29: Universal Joint Shaft Operation
General Safety Instructions 2.16.5 Universal joint shaft operation Use only the PTO shafts prescribed by the AMAZONEN-WERKE • factories, equipped with the proper safety devices. • Also read and follow the operating manual from the PTO shaft manufacturer. The protective tube and PTO shaft guard must be undamaged, •...
Page 30: Brake System
General Safety Instructions After removing the PTO shaft, attach the protective sleeve to the • universal joint shaft stub. • When using the travel-dependent universal joint shaft, note that the universal joint shaft speed depends on the drive speed, and that the direction of rotation reverses when you drive in reverse.
Page 31: Tyres
• Spare parts must meet at least the specified technical require- ments of AMAZONEN-WERKE. This is ensured through the use of genuine AMAZONE spare parts. DMC12001-2C BAG0200.3 03.20...
Page 32: Loading And Unloading
Loading and unloading Loading and unloading Loading and unloading with a tractor WARNING There is a risk of an accident when the tractor is unsuitable and the machine brake system is not connected to the tractor or is filled. Correctly couple the machine to the tractor, before loading the •...
Page 33: Product Description
Product description Product description Overview of subassemblies Fig. 2 (6) Depth adjustment for coulter rows (1) Chisel (7) Dissel (2) Supporting rolls (8) Section support wheel (3) Coulter frame (9) Jack (4) Seed hoses (5) Foldable boom DMC12001-2C BAG0200.3 03.20...
Page 34 Product description Fig. 3 (1) Running gear with tyres (5) Working platform with foldable ladder (2) Foldable exact harrow (6) Parking brake (3) Seed hopper and fertiliser hopper (7) Wheel chocks (4) Seed hopper / Fertiliser hopper (8) Dosing unit Fig.
Page 35: Safety And Protection Equipment
Product description Safety and protection equipment Railing on the maintenance platform • Road safety bar on the exact following harrow for road transport • Automatic transport locking mechanism for the sections • Stop tap as a transport locking mechanism for the raised exact •...
Page 36: Transportation Equipment
Product description Transportation equipment Fig. 5 (1) Turn indicator (2) Reflector, red (3) Reflector, yellow (4) Brake lights, tail lamp (5) Slow Moving Vehicle Emblem Fig. 6 (1) Turn indicator (2) Reflector, yellow Fig. 7 (1) Reflector, yellow (at side with max. 3 m spacing) DMC12001-2C BAG0200.3 03.20...
Page 37: Intended Use
Compliance with all the instructions in this operating manual. • Execution of inspection and maintenance work. • Exclusive use of genuine AMAZONE spare parts. Other uses to those specified above are forbidden and shall be con- sidered as improper. For any damage resulting from improper use: the operator bears the sole responsibility, •...
Page 38: Danger Area And Hazard Points
Product description Danger area and hazard points The danger area is the area around the machine in which people can be caught: • By work movements made by the machine and its tools • By materials or foreign bodies thrown out of the machine By tools rising or falling unintentionally •...
Page 39: Rating Plate
Product description Rating plate The rating plate shows: • Vehicle-ID no. • Machine ID no • Product • Basic weight kg • Permissible support load kg • Permissible rear axle load kg Permissible system pressure bar • Permissible total weight kg •...
Page 40: Technical Data
Product description Technical data DMC 12001-2C Working width 39,4 ft / 12 m Transport width 15,5 ft / 4,725 m (14,8 ft option) / (4,50 m Option) Transport length 13 ft / 4,00 m Fill level 8,7 ft / 2,65 m Track width 20 in / 3,30 m Permissible total height...
Page 41: Necessary Tractor Equipment
Product description Necessary tractor equipment For the machine to be operated as intended, the tractor must fulfil the following requirements: Tractor engine power Row spacing 7,38 in / 18,75 cm at 260 kW (350 hp) 9,84 in / 25 cm at 245°kW(330°hp) Electrical system Battery voltage:...
Page 42: Structure And Function
Structure and function Structure and function The following section provides information on the machine structure and the functions of the individual components. Mode of operation The DMC facilitates direct sowing via the chisels without prior pro- cessing of the soil. At the same time, fertilisation can be carried out (optional) The seed is carried in the seed hopper.
Page 43: Hydraulic Connections
Structure and function Hydraulic connections All hydraulic hose lines are equipped with grips. • Coloured markings with a code number or code letter have been applied to the gripping sections in order to assign the respective hydraulic function to the pressure line of a tractor control unit! Films are stuck on the implement for the markings that illustrate the respective hydraulic function.
Page 44: Coupling The Hydraulic Hose Lines
Structure and function WARNING Risk of infection from hydraulic fluid escaping at high pressure. When coupling/uncoupling the hydraulic hose line, ensure that the hydraulic system is not under pressure on the tractor or machine side. If you are injured by hydraulic fluid, contact a doctor immediately. Maximum permissible pressure in oil return: 145 psi / 10 bar Therefore do not connect the oil return to the tractor control unit, but to a pressure-free oil return flow with a large plug coupling.
Page 45: Uncoupling The Hydraulic Hose Lines
Structure and function 5.2.2 Uncoupling the hydraulic hose lines 1. Place the tractor control unit in float position (neutral). 2. Release the hydraulic plugs from the hydraulic sockets. 3. Fasten the hydraulic plugs in the empty coupling points. DMC12001-2C BAG0200.3 03.20...
Page 46: Dual-Circuit Service Brake System
Structure and function Dual-circuit service brake system Compliance with the maintenance intervals is essential for the correct function of the two-line operating brake system. Fig. 9 To activate the dual-circuit pneumatic braking system, the tractor re- quires a pneumatic braking system which is also dual circuit. ●...
Page 47 Structure and function (1) Brake line coupling head (yellow) (2) Supply line coupling head (red) Fig. 10 Line filter in the coupling head with sealing sur- faces, O-ring and filter. Fig. 11 (1) Compressed air tank (2) Test connection for pressure gauge (3) Drain valve Fig.
Page 48: Coupling The Brake And Supply Lines
Structure and function 5.3.1 Coupling the brake and supply lines WARNING Risk of contusions, cuts, dragging, catching or knocks from incorrectly functioning brake system. When coupling the brake and supply line, ensure that: • the sealing rings on the hose couplings are clean. ο...
Page 49: Uncoupling The Brake And Supply Lines
Structure and function 5.3.2 Uncoupling the brake and supply lines WARNING Risk of being crushed, cut, caught or struck by the machine un- intentionally rolling away when the operating brake is released. Always uncouple the hose coupling of the supply line (red) first fol- lowed by the hose coupling of the brake line (yellow).
Page 50: Parking Brake
Structure and function 5.3.3 Parking brake When the parking brake is on, it secures the uncoupled machine against unintentionally rolling away. The parking brake is operated by turning the crank via a spindle and bowden cable. Fig. 11/... (1) Crank (2) Direction of rotation for applying brake (3) Direction of rotation for releasing brake Fig.
Page 51: Foldable Wheel Chocks
Structure and function Foldable wheel chocks Each of the wheel chocks is attached with a thumb bolt on the right side of the implement. Put the foldable wheel chocks into operating posi- tion by pressing the button and apply directly on the wheels before uncoupling.
Page 52: Safety Device Against Unauthorised Use
Structure and function Safety device against unauthorised use Lockable device for the drawbar eye, ball brack- et, or lower link crosspiece, prevents unauthor- ised use of the implement. Fig. 17 DMC12001-2C BAG0200.3 03.20...
Page 53: Seed Metering And Fertiliser Metering
Structure and function Seed metering and fertiliser metering The implement has four metering units. Fertiliser can be spread via the two centre metering units at the same time as seeding if necessary. • The left fan supplies the left metering unit with air •...
Page 54: Seed Path - Fertiliser Path
Structure and function 5.7.1 Seed path – fertiliser path The seed hoses are numbered. • • Standard seed hoses, which are switched off when creating tramlines. Alternative adjustable seed hoses for tramlines. • Row spacing 7,38 in / 18,75 cm Fig.
Page 55 Structure and function Row spacing 9,81 in /25 cm Fig. 19 DMC12001-2C BAG0200.3 03.20...
Page 56: Dosing Unit
Structure and function 5.7.2 Dosing unit In the seed metering unit, the seed is metered by a metering roller (1). Each metering unit is equipped with a sliding shutter to be able to • empty the metering unit, • and replace the metering roller when the hopper is full.
Page 57: Metering Rollers
Structure and function 5.7.3 Metering rollers The seed metering unit is equipped with an exchangeable metering roller. The metering roller selection is dependent on the seed type • the spread rate. • Dosing roller diagram table Single metering rollers / cm 0,46 / 7,5 1,22 / 20 2,44 / 40...
Page 58 Structure and function Dosing rollers with different capacities are available. Select the metering roller required depending on the seed or the fertiliser and the spread rate according to the following tables. If the seed is not listed, select the dosing roller of a seed that has a similar grain size.
Page 59: Seed Sluice
Structure and function 5.7.4 Seed sluice The seed sluice is under the metering unit. The hand lever is used to operate the sluice flap that delivers seed to the left or right half of the implement. In the centre position, the seed can be delivered to all of the coulters.
Page 60: Spreading Fertiliser
Structure and function Spreading fertiliser With the DMC, it is possible to spread fertiliser and seed at the same time. For this purpose, fertiliser is spread together with the seed through every coulter. Seed / fertiliser) Hopper for seed and fertiliser Use the front hoppers (hopper 1, hopper 2) for seeding.
Page 61: Seeding Maize (Optional For Standard Row Spacing 18,75 Cm)
Structure and function Seeding maize (optional for standard row spacing 18,75 cm) It is possible to sow maize with the DMC. When sowing maize, you can simultaneously spread fertiliser. Maize / fertiliser) Row spacing The simultaneous sowing of maize and spreading of fertiliser can take place in the following row spacings: •...
Page 62 Structure and function distributor Depending on the desired row spacing, several outlets on all of • the distributors must be closed. Various locking plates and sealing plugs are available (depend- ing on the size of the seed distributor) for this purpose. (1) Outlets open (2) Outlets closed (3) Locking plate suspended...
Page 63 Structure and function Tramline control Before seeding maize, the tramline control of the AMALOG • must be switched off. Set the tramlining rhythm to 15 Replace the hoses Several hoses on the distributor must be replaced to obtain the de- sired row spacing.
Page 64: Overview Of Closed Outlets In The Distributor And Switched-Off Coulters
Structure and function 5.9.1 Overview of closed outlets in the distributor and switched-off coulters Maize row spacing 29,53 in / 75 cm / Fertiliser row spacing 29,53 in / 75 cm Maize : Install the locking plates according to Fig. 24 •...
Page 65 Structure and function Maize row spacing 29,53 in / 75 cm / Fertiliser row spacing 37,5 cm Maize : Install the locking plates according to Fig. 25 • • Fertilizer : Install the locking plates according to Fig. 25 • Switch off the coulter Fig.
Page 66 Structure and function Maize row spacing 14,76 in / 37,5 cm / Fertiliser row spacing 14,76 in / 37,5 cm • Maize : Install the sealing plugs according to Fig. 26. Fertiliser : Install the sealing plugs according to Fig. 26. •...
Page 67 Structure and function DMC 3000 Maize row spacing 14,76 in / 37,5 cm / Fertiliser row spacing 7,38 in / 18,75 cm Maize : Install the sealing plugs according to Fig. 27. • Fig. 31 DMC12001-2C BAG0200.3 03.20...
Page 68: Blower
Structure and function 5.10 Blower The DMC 12001-2C is equipped with two fans, each for two metering units. The hydraulic motor drives the fan and generates an air current. The air current carries the seed from the injector sluice to the coulters. The fan is driven by a tractor control unit.
Page 69: Chisels
Structure and function 5.11 Chisels Fig. 34 The chisel coulters (Fig. 30/1) are arranged in 3 or 4 rows that are offset to each other. The row spacing is 7,38 in / 18.75 cm or 9,84 in / 25 cm. The double rollers installed behind the chisel coulter regulate the depth of the chisel coulters (Fig.
Page 70: Stone Release
Structure and function 5.12 Stone release Fig. 36 (1) Chisel coulter in working position (2) Chisel coulter lifted by stone release The chisel coulter are individually suspended in parallelogram-shaped brackets. These brackets each have a top and lower link, and act as a stone release at the same time.
Page 71: Exact Harrow
Structure and function 5.13 Exact harrow The exact harrow covers the seeds deposited in the sowing furrows with loose earth and smoothes the ground. (1) Exact harrow (2) Road safety bars in transport position dur- ing road transport (3) Stop tap for securing the transport position The road safety bars are secured on the exact harrow with expander strips Fig.
Page 72: Stony Ground Rollers (Optional)
Structure and function 5.14 Stony ground rollers (optional) Stony ground rollers are particularly suitable for stony ground. Fig. 40 5.15 Jack Jack raised during operation or transport. • Jack lowered when implement is uncou- • pled. Raising/lowering the jack: 1. Pull out the pin. 2.
Page 73: 4-Part Hopper
Structure and function 5.17 4-part hopper The hopper consists of 4 funnel-shaped parts, each of which is equipped with a metering unit. Compressed air is applied to the hopper by the fan to optimise the metering. Fig. 43 (1) 2 front parts of the hopper for seed with a common rate setting (2) Rear left hopper for seed or fertiliser with separate rate setting (3) Rear right hopper for seed or fertiliser with separate rate setting (4) Operator platform with railing...
Page 74 Structure and function The overpressure in the 4 hoppers is shown on 4 pressure gauges at the front on the drawbar. Setpoint range: 0,51 – 0,87 psi / 35 – 60 mbar. Fig. 44 Hopper closed pressure-tight by the locked hand lever on the hopper cover.
Page 75: Working Platform
Structure and function 5.18 Working platform Working platform with swivelable ladder. WARNING Riding on the machine as a passenger creates a risk of falling. Riding on the machine as a passenger is prohibited. Always secure the ladder in the transport position. (1) Ladder folded up in transport position and secured.
Page 76: Camera System
Structure and function 5.19 Camera system WARNING Risk of injury or even death. If the camera display alone is used for manoeuvring, persons or objects can be overlooked. The camera system is an aid. It does not replace the operator's awareness of the immediate surroundings. Before manoeuvring, ensure that there are no people or •...
Page 77: Filling Auger (Optional)
Structure and function 5.21 Filling auger (optional) As an option, the machine can be fitted with a filling auger. Fill the filling auger with seed or fertiliser from the transport vehicle via a chute and supply it into the hopper of the DMC. Fig.
Page 78: Distributor Head And Tramline Circuit
Structure and function (1) Switching the filling auger on and off (2) Folding in and out Fig. 54 5.22 Distributor head and tramline circuit I n the distributor head, the seed or fertiliser is distributed uniformly over all the seeding coul- ters.
Page 79: Tramline Rhythm
Structure and function 5.22.1 Tramline rhythm Tramlines can be created on the field. Tramlines are seed-free tracks (A) for fertilising and plant care machines used later. The tramline spacing (b) corresponds to the working width of the care machines (B), e.g. fertiliser spread and/or sprayer, which are used on sown fields.
Page 80 Structure and function 5.22.1.1 Examples for creating tramlines The creation of tramlines is shown in Figure (Fig. 55) using various examples: Working width of the seed drill Tramline spacing (= working width of fertiliser spreader / field sprayer) Tramline rhythm (input in the on-board computer) Tramline counter (during work, the field runs are numbered consecutively and displayed on the on-board computer).
Page 81 Structure and function 5.22.1.2 Tramline rhythm 4, 6 and 8 Figure shows examples for creating tramlines with tramline rhythms 4, 6 and 8. It shows work with the seed drill at half width (partial width) during the first field trip. During work with partial width switched off, the drive of the appropri- ate dosing roller is interrupted.
Page 82: Markers
Structure and function 5.23 Markers When tramlines are being created, the track discs lower automatically and mark the tramline that has just been created. This makes the tram- lines visible before the seed has germinated. The track discs are raised hydraulically if no tramline is being created.
Page 83: Electric Metering And Isobus
Structure and function 5.24 Electric metering and ISOBUS A generator is hydraulically driven to ensure the required electric energy for driving the metering motors. A battery stores the energy. (1) Hydraulic pressure display (generator drive and fan drive) (2) Generator with hydraulic drive (3) Radar, central under the implement (4) ISOBUS computer (5) Battery...
Page 84: Isobus Control Terminal
The implement can be connected to any ISOBUS-compatible control terminal. If the tractor has an ISOBUS system, the AMAZONE job computer can also be connected to the existing ISOBUS socket of the tractor and operated with the on-board terminal.
Page 85: Front Carriage
Structure and function 5.27 Front carriage Using the front vehicle reduces the drawbar load on the tractor by half. 1. Couple the front vehicle on the tractor. 2. Couple the DMC on the front vehicle. When using the front vehicle, observe the section "Coupling and un- coupling the implement".
Page 86: Commissioning
Commissioning Commissioning This section contains information • on commissioning your machine. • on checking how you may connect the machine to your tractor. • Before operating the machine for the first time the operator must have read and understood the operating manual. Comply with the section "Safety information for the user", starting •...
Page 87: Checking The Suitability Of The Tractor
Commissioning Checking the suitability of the tractor WARNING Danger of breaking during operation, insufficient stability and insufficient tractor steering and braking power on improper use of the tractor. • Check the suitability of your tractor, before connecting the ma- chine to the tractor. You may only connect the machine to tractors suitable for the purpose.
Page 88 Commissioning 6.1.1.1 Data required for the calculation Fig. 67 lb [kg] Tractor empty weight See tractor operating manual or vehicle lb [kg] Front axle load of the unladen tractor documentation lb [kg] Rear axle load of the unladen tractor lb [kg] Front weight (if available) See front weight in technical data, or weigh lb [kg] Actually drawbar load Determine...
Page 89 Commissioning 6.1.1.2 Calculation of the required minimum ballasting at the front G of the tractor for V min assurance of the steering capability • − • • • Enter the numeric value for the calculated minimum ballast G V min required on the front side of the tractor, in the table (section 6.1.1.7).
Page 90 Commissioning 6.1.1.7 Table Actual value according to Approved value ac- Double approved calculation cording to tractor load capacity (two instruction manual tyres) Minimum ballast front / rear Total weight ≤ Front axle load ≤ ≤ Rear axle load ≤ ≤ You can find the approved values for the total tractor weight, •...
Page 91: Requirements For Tractor Operation With Attached Machines
Commissioning 6.1.2 Requirements for tractor operation with attached machines WARNING Risk of breakage during operation of components through unap- proved combinations of connecting equipment. Ensure: • that the connection fitting on the tractor possesses a per- ο missible drawbar load sufficient for the actual drawbar load. that the axle loads and weights of the tractor altered by the ο...
Page 92 6.1.2.1 Combination options of coupling devices The table shows the permitted combination options of coupling devic- es for the tractor and implement. Coupling device Tractor AMAZONE implement Upper hitch Socket Pin coupling, form A, B, C Drawbar eye (ISO 5692-2) 1,57 in / 40 mm Ø...
Page 93 Commissioning 6.1.2.2 Compare the permissible D value with actual D value WARNING Danger from breaking the coupling devices between the tractor and the implement when the tractor is not used for its intended purpose! 1. Calculate the actual D value of your combination, comprising tractor and implement.
Page 94 Commissioning Calculate the actual D value for the combination to be coupled The actual D value of a combination to be coupled is calculated as follows: T x C = g x T + C Fig. 68 permissible total weight of your tractor in [t] (See tractor operat- ing manual or vehicle documentation) axle load of the implement [t] loaded with the permissible mass without drawbar load (working load).
Page 95: Securing The Tractor / Machine Against Unintentional Start-Up And Rolling
Commissioning Securing the tractor / machine against unintentional start-up and roll- WARNING Risk of contusions, cutting, catching, drawing in and knocks when making interventions in the machine through Unintentional lowering of the unsecured machine when • raised using the tractor's three-point linkage. Unintentional lowering of raised, unsecured machine parts.
Page 96: Coupling And Uncoupling The Machine
Coupling and uncoupling the machine Coupling and uncoupling the machine When coupling and decoupling machines, take note with the section "Safety information for the user", page 24. WARNING Risk of contusions from unintentional starting and rolling of the tractor and machine when coupling or uncoupling the machine. When coupling or decoupling the machine, secure the tractor and machine against unintentional start-up and rolling away before enter- ing the danger area between the tractor and machine.
Page 97 Coupling and uncoupling the machine WARNING Risk of crushing, catching, entrapment and impacts when the machine is unexpectedly released from the tractor! Use the intended equipment to connect the tractor and the ma- • chine in the proper way. When coupling the machine to the tractor's three-point hydraulic •...
Page 98 Coupling and uncoupling the machine Coupling on the tractor lower links: WARNING Risk of contusions, cutting, catching, drawing in and knocks when the implement unexpectedly releases from the tractor! When coupling the implement to the tractor's three-point • hydraulic system, it is vital to ensure that the tractor mount categories of the tractor and the implement are the same.
Page 99: Coupling The Tensioned Crosspiece
Coupling and uncoupling the machine Coupling the tensioned crosspiece Coupling the tensioned crosspiece 1. Fasten the ball sleeves on the lower link pins of the implement. 2. Secure the lower link pins with linch pins to ensure that they do not accidentally become loose.
Page 100: Coupling The Towing Eye / Ball Coupling
Coupling and uncoupling the machine Coupling the towing eye / ball coupling Coupling the towing eye / ball coupling 1. Direct people out of the danger area between the tractor and implement before you approach the implement with the tractor. 2.
Page 101: Manoeuvring The Uncoupled Machine
Coupling and uncoupling the machine Manoeuvring the uncoupled machine CAUTION You must be particularly careful when manoeuvring the machine with the service brake system released, since only the vehicle itself is now braking the machine as it manoeuvres. The machine must be connected to the vehicle as it manoeuvres before you actuate the release valve on the trailer brake valve.
Page 102: Settings
Settings Settings WARNING Risk of contusions, cutting, catching, drawing in and knocks through Unintentional falling of the machine raised using the trac- • tor's three-point hydraulic system. Unintentional falling of raised, unsecured machine parts. • • Unintentional start-up and rolling of the tractor-machine combination.
Page 103: Selecting The Dosing Roller
Settings Selecting the dosing roller The requisite dosing roller is dependent on the seed type and spread rate and can be found from Table 1. For seed not listed in Table 1, select the dosing roller of one of the seed types listed in the table of a similar grain size.
Page 104: Replacing The Dosing Roller
Settings 8.1.2 Replacing the dosing roller CAUTION Switch off the control terminal! Risk of accident due to unintentional activation of the metering unit or other implement components caused by wheel movements or radar pulses. The metering roller can be replaced more easily if the hopper is emp- 1.
Page 105: Setting The Spread Rate And Calibration Test
Settings 5. Pull the metering roller out of the metering unit. Install the metering roller in the re- verse sequence. Fig. 73 6. If necessary, pull the shutter back out of the slot in the metering unit and fasten in park- ing position.
Page 106: Calibration Test
Settings The maximum spread rate is 446 lb/ac 500 kg/ha for 4 metering units. The maximum seeding rate is therefore reduced when spreading fertiliser and seed. Maximum seed rate: 223 lb/ac 250 kg/ha (2 metering units) Minimum seeding rate. 1,78 lb/ac (1 metering unit) Maximum fertilising rate: 223 lb/ac 250 kg/ha (2 metering units) The spread rates are based on a working speed of 15 km/h.
Page 107 Settings Performing a calibration test 1. Fill at least 1/3 of the seed hopper with seed (accordingly less for fine seed). 2. Loosen the rubber mats on each of the outer injectors. 3. For the calibration test, swivel the sluice flap inwards.
Page 108: Adjusting Blower Fan Speed
Settings Adjusting blower fan speed The blower speed determines the air volume of the air current. The higher the fan speed, the greater is the air volume generated. The on-board computer monitors that the fan speed is maintained. 8.3.1 Blower speed table The fan speed (1/min) is dependent on •...
Page 109: Adjusting The Placement Depth Of The Seed
Settings Adjusting the placement depth of the seed The placement depth can be set centrally for each coulter group via the crank (Fig. 75/1). The setting scale (Fig. 75/2) makes it possible to evenly adjust all coulter groups to each other. The arrow (Fig.
Page 110: Adjusting The Exact Harrow
Settings Adjusting the exact harrow (1) Turnbuckle for tilt adjustment (2) Spacer elements for depth adjustment (op- tional) Tilt adjustment: 1. Move the implement on the field into work- ing position. 2. Apply the parking brake, switch the tractor engine off and remove the ignition key. 3.
Page 111: Transportation
Transportation Transportation During transportation, follow the instructions given in the section • "Safety instructions for the operator", page 26. • Before moving off, check: that the supply lines are connected correctly. ο ο the lighting system for damage, proper operation and cleanness, the braking and hydraulic systems for obvious defects.
Page 112 Transportation WARNING Danger of breaking during operation, insufficient stability and insufficient tractor steering and braking power on improper use of the tractor. These risks pose serious injuries or death. Comply with the maximum load of the connected machine and the approved axle and support loads of the tractor.
Page 113: Placing The Machine In The Transport Position
Transportation Placing the machine in the transport position Fig. 85 Move the implement from working position to transport position (Fig. 82). Fig. 86 1. Move the selection lever to Position B. 2. Actuate yellow tractor control unit. Lift the coulters and exact following harrow. →...
Page 114 Transportation 6. Move the stop tap (Fig. 83/1) to position A. → Prevents unintentional lowering of the exact following harrow. Fig. 87 7. Both stop taps: close the harrow folding (0). → Prevents unintentional unfolding of the ex- act following harrow. Fig.
Page 115: Use Of The Machine
Use of the machine Use of the machine When using the machine, observe the information in the sections • "Warning symbols and other labels on the machine" starting on page 16 and "Safety information for the user", starting on page 24 ff. •...
Page 116 Use of the machine WARNING Risk of being crushed, caught or struck by damaged compo- nents or foreign objects ejected from the machine. Observe the permissible machine drive speed before switching on the tractor universal joint shaft. WARNING Risk of contusions, drawing in and catching during machine operation without the intended protective equipment.
Page 117: Filling The Seed Hopper
Use of the machine 10.1 Filling the seed hopper Convenient filling of the implement is only possible with the filling auger. 2 people are needed for the filling procedure. One person at the filling funnel to regulate the inflow. • One person at the hopper to distribute into the different hoppers.
Page 118 Use of the machine DANGER Never move between the supply vehicle and the machine. Never stand under suspended loads. Observe the approved filling levels and total weights. After use or before transport, move the ladder to the transport position and secure. DMC12001-2C BAG0200.3 03.20...
Page 119: Placing The Machine In The Working Position
Use of the machine 10.2 Placing the machine in the working position Move the implement from transport position to working position: 1. Move the selection lever to Position A. Fig. 91 2. Open the harrow height stop tap (1) (B). Fig.
Page 120: Sowing Operation
Use of the machine 10.3 Sowing operation See operating manual for software ISOBUS. Align the implement horizontally: • Using the tractor lower link. • If necessary, adjust the height of the coupling device. Fig. 94 WARNING Excessive wear of the coulter suspension when the stone release is under constant strain can lead to failure of the implement! The stone release may only react to occasionally occurring ob-...
Page 121: Headland
Use of the machine Before starting work, check that the correct tramline counter is dis- played for the first field trip. Dressed seed is extremely poisonous to birds. The seed must be worked in fully and covered with earth. When lifting out the coulters, ensure that the seed does not trickle out.
Page 122: Emptying The Dosing Unit Or Hopper And Dosing Unit
Use of the machine 10.5 Emptying the dosing unit or hopper and dosing unit Empty and carefully clean the fertiliser hopper daily after work! Re- maining fertiliser can damage the metering unit. Seed residues left in the metering unit can swell or germinate if the metering unit is not completely emptied! This can cause blocking to the rotation of the metering wheels and damage to the drive!
Page 123 Use of the machine For complete emptying in the event of a seed change, remove the metering rollers (see Seite 104) and clean them together with the metering unit. 6. Remove the metering roller (see page "104"). 7. Close the housing cover (Fig. 94/1). 8.
Page 124: Faults
Faults Faults WARNING Risk of contusions, cutting, catching, drawing in and knocks through Unintentional falling of the machine raised using the trac- • tor's three-point hydraulic system. Unintentional falling of raised, unsecured machine parts. • Unintentional start-up and rolling away of the tractor- •...
Page 125: Cleaning, Maintenance And Repairs
Cleaning, maintenance and repairs Cleaning, maintenance and repairs WARNING Risk of contusions, cutting, catching, drawing in and knocks through Unintentional falling of the machine raised using the trac- • tor's three-point hydraulic system. Unintentional falling of raised, unsecured machine parts. •...
Page 126 Regu- lar and proper maintenance is a requirement of our warranty conditions. Use only genuine AMAZONE spare parts (see "Spare and wear • parts and aids" section, page 15). Use only genuine AMAZONE replacement hoses, and hose •...
Page 127: Cleaning
Cleaning, maintenance and repairs 12.1 Cleaning Pay particular attention to the brake, air and hydraulic hose • lines. • Never treat brake, air and hydraulic hose lines with petrol, ben- zene, petroleum or mineral oils. After cleaning, grease the machine, in particular after cleaning •...
Page 128: Cleaning The Distributor Head (Workshop)
Cleaning, maintenance and repairs 12.1.1 Cleaning the distributor head (workshop) Clean distributor heads which have been soiled by residual seed immediately. Deposits of dirt on the distributor heads could in- fluence the sowing rate. Clean the distributor head: 1. Bring the machine to a stop. 2.
Page 129: Lubrication Specifications (Workshop Work)
Cleaning, maintenance and repairs 12.2 Lubrication specifications (workshop work) Lubricate all grease nipples (keep gaskets clean). Lubricate / grease the machine at the specified intervals. Lubrication points on the machine are indicated with the foil sticker (Fig. 96). Carefully clean the lubrication points and grease gun before lubrication so that no dirt is pressed into the bearings.
Page 130 Cleaning, maintenance and repairs Fig. 101, DMC12001-2C BAG0200.3 03.20...
Page 131: Sowing Shaft Bearings
Cleaning, maintenance and repairs 12.2.2 Sowing shaft bearings Sowing shaft bearings: Lightly grease the seat of the sowing shaft bear- ing with a thin mineral oil (SAE 30 or SAE 40). Fig. 102 12.2.3 Lubricating axles Brake shaft bearing, outer and inner CAUTION no grease or oil should be allowed to enter the brakes.
Page 132: Service Plan - Overview
Cleaning, maintenance and repairs 12.3 Service plan – overview Carry out maintenance work when the first interval is • reached. The times, continuous services or maintenance intervals of • any third party documentation shall have priority. Before each start-up 1. Check hoses/tubes and connection pieces for any visually obvi- ous defects/leaking connections.
Page 133 Cleaning, maintenance and repairs Every three months / 200 operating hours Component Maintenance work Specialist workshop page Parking brake Check the braking effect with • the brake applied Dual-circuit service brake Inspection according to check • system instructions • Joints on brake valves, brake cylinders and brake linkages Brake settings on the linkage •...
Page 134: Axle And Brake
Cleaning, maintenance and repairs 12.4 Axle and brake For optimum brake performance with a minimum of wear, we recom- mend that the brakes on the tractor are balanced with those on the machine. After the service braking system has been run in for a suita- ble period, arrange for the brakes to be balanced by a specialist workshop.
Page 135 Cleaning, maintenance and repairs Checking the brake drum for dirt 1. Unscrew the two cover plates (Fig. 99/1) on the inside of the brake drum. 2. Remove any dirt and plant debris which may have entered the drum. 3. Refit the cover plates. CAUTION Dirt entering the drums may be deposited on the brake shoes (Fig.
Page 136 Cleaning, maintenance and repairs Check the brake shoes To check the brake pad thickness, open the in- spection hole (1) by opening the rubber tab. Changing the brake pads → Workshop work Criterion for changing the brake pads: Minimum pad thickness of 0,2 in / 5 mm •...
Page 137: Inspection Instructions For The Dual Circuit Service Brake System
Cleaning, maintenance and repairs 12.4.1 Inspection instructions for the dual circuit service brake system Leak tightness check 1. Check all connections, pipe lines, hose lines and screw connec- tions for leak tightness. 2. Remedy leakages. 3. Repair any areas of chafing on pipes and hoses. 4.
Page 138: Parking Brake
Cleaning, maintenance and repairs 12.5 Parking brake On new machines, the brake cables of the parking brake may stretch. Readjust the parking brake, • if three quarters of the spindle tensioning distance is required to firmly apply the parking brake. if you have just fitted new brake pads.
Page 139: Check The Coupling Device
Cleaning, maintenance and repairs 12.6 Check the coupling device DANGER! Replace a damaged drawbar with a new one immediately - • for road traffic safety reasons. Repairs may only be carried out by the manufacturer • factory. For safety reasons, it is forbidden to weld on and drill holes •...
Page 140: Generator
Cleaning, maintenance and repairs 12.7 Generator Checking the V-belt tension Check the belt tension with a test force of 300 N. The deflection must be 0,59 in / 15 mm. If nec- essary, readjust the belt tension using the elon- gated slots.
Page 141: Tyres / Wheels
Cleaning, maintenance and repairs 12.8 Tyres / wheels • Required tyre pressure: 31,90 psi / 2.2 bar. Required tightening torque for wheel nuts or bolts: • 738 ft-lb / 1000 Nm • Regularly check ο wheel nuts for firm seating. ο...
Page 142: Hydraulic System
Replace the hydraulic hose line if it is damaged or worn. Only • use AMAZONE original hydraulic hose lines. The hydraulic hose lines should not be used for longer than six • years, including any storage time of maximum two years. Even...
Page 143: Labelling Hydraulic Hose Lines
Cleaning, maintenance and repairs 12.9.1 Labelling hydraulic hose lines The assembly labelling provides the follow- ing information: Fig. 106/... (1) Manufacturer's marking on the hydraulic hose line (A1HF) (2) Date of manufacture of hydraulic hose line (04 / 02 = year / month = February 2004) (3) Maximum approved operating pressure (3046 psi / 210 bar).
Page 144: Installation And Removal Of Hydraulic Hose Lines
• 12.9.4 Installation and removal of hydraulic hose lines only genuine AMAZONE replacement hoses. These hoses stand • up to chemical, mechanical and thermal loads. • only hose clips made from V2A should be used for fitting hoses.
Page 145: Upper And Lower Link Pins
Cleaning, maintenance and repairs 12.10 Upper and lower link pins WARNING Risk of contusions, catching, and knocks when the machine unexpectedly releases from the tractor. Check the upper and lower link pins for visible damage each time you couple the machine. Replace the upper and lower link pins in the event of clearly visible wear.
Page 146: Adjusting The Tramline To The Tractor Track Width (Specialised Workshop)
Cleaning, maintenance and repairs 12.11 Adjusting the tramline to the tractor track width (specialised workshop) The seed hoses are numbered. • • Standard seed hoses, which are switched off when creating tramlines. Alternative adjustable seed hoses for tramlines. • Row spacing 7,38 in / 18.75 cm Row spacing 9,84 in / 25 cm Fig.
Page 147 Cleaning, maintenance and repairs Check whether the tramline control is properly set for the track width of the cultivating tractor: • The seed line tubes (1) of the tramline coul- ters must be attached to the distributor head openings, which can be closed by the shutters (2).
Page 148: Adjusting The Wheelmark Width (Activating Or Deactivating Shutters)
Cleaning, maintenance and repairs 12.11.1 Adjusting the wheelmark width (activating or deactivating shutters) The wheelmark width of the tramline increases with an increasing number of tramline coulters arranged next to each other. 6 tramline coulters can be connected to one distributor head. The shutters close the feed lines to the tramline coulters.
Page 149: Electrical Lighting System
Cleaning, maintenance and repairs 10. Install the foam insert (Fig. 111/1) 11. Install the inner distributor cover (Fig. 111/2) 12. Install the ring (Fig. 111/3) 13. Install the outer distributor cover (Fig. 111/4) 14. Check the function of the tramline control. Fig.
Page 150: Hydraulics Diagram
Cleaning, maintenance and repairs 12.13 Hydraulics diagram Fig. 116 DMC12001-2C BAG0200.3 03.20...
Page 151 Cleaning, maintenance and repairs Fig. 117 DMC12001-2C BAG0200.3 03.20...
Page 152: 12.13.1 Blower
Cleaning, maintenance and repairs 12.13.1 Blower Fig. 118 12.13.2 Filling auger Fig. 119 DMC12001-2C BAG0200.3 03.20...
Page 153: Bolt Tightening Torques
Notes 12.14 Bolt tightening torques ft-lb [Nm] 10.9 12.9 18.5 [25] 25.8 [35] 30.2 [41] M 8x1 19.9 [27] 28 [38] 30.2 [41] M 10 36 [49] 51 [69] 61 [83] 16 (17) M 10x1 38 [52] 54 [73] 65 [88] M 12 63 [86] 89 [120]...
Page 154 Cleaning, maintenance and repairs DMC12001-2C BAG0200.3 03.20...

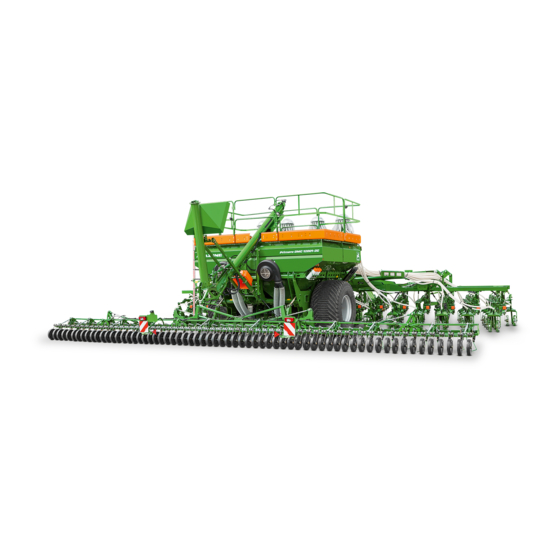

Amazone DMC Primera 12001-2C Operating Manual

1 User Information

2 General Safety Instructions

3 Loading and Unloading

4 Product Description

5 Structure and Function

6 Commissioning

7 Coupling and Uncoupling the Machine

8 Settings

9 Transportation

10 Use of the Machine

11 Faults

12 Cleaning, Maintenance and Repairs

Quick Links

Need help?

Questions and answers

Related Manuals for Amazone DMC Primera 12001-2C

Summary of Contents for Amazone DMC Primera 12001-2C

Table of Contents
