Summary of Contents for Simpli Home brooklyn + max WyndenHall AXCKIT05-BL

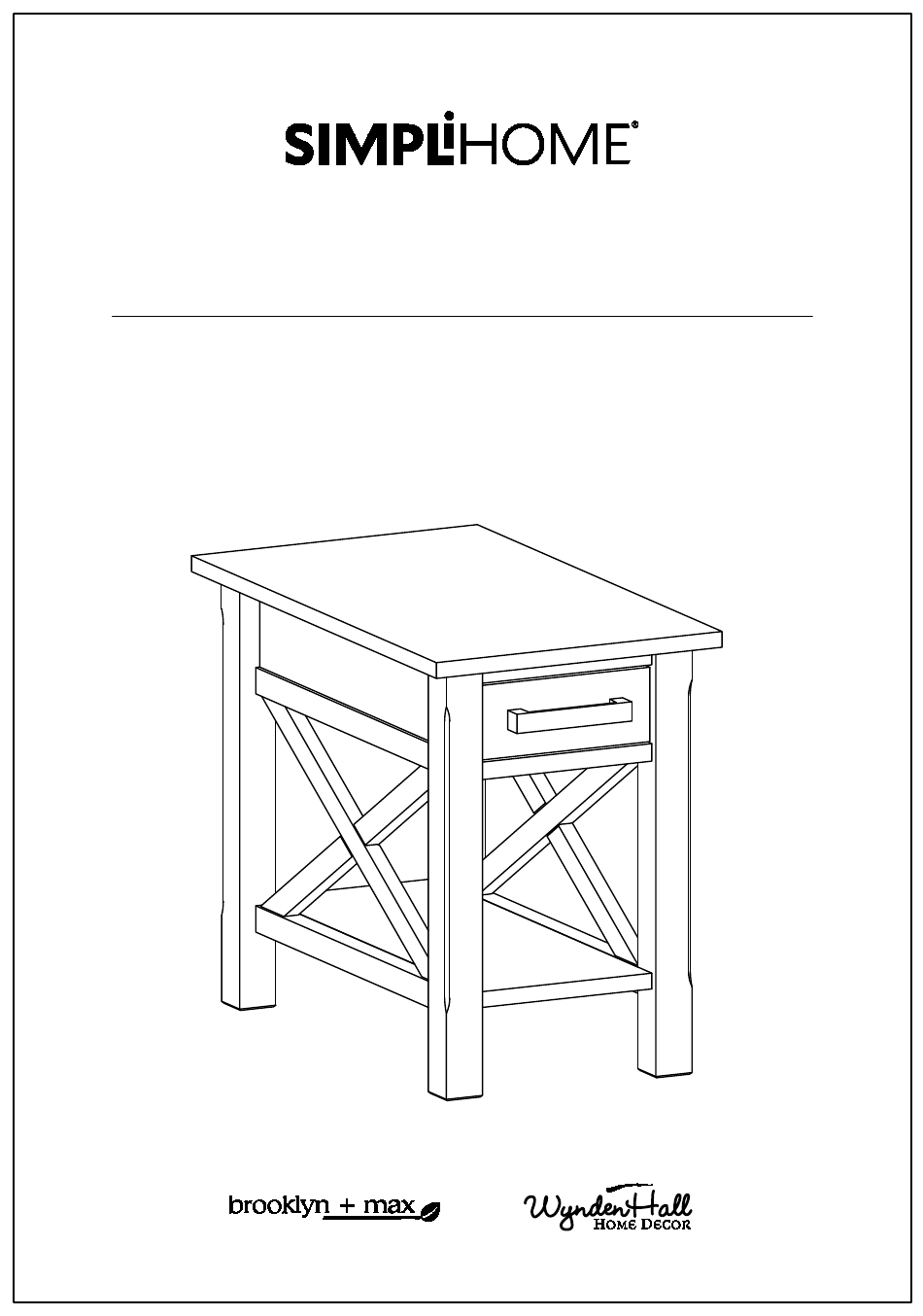

- Page 1 Kitchener / Waterloo / Providence Narrow Side Table Model # AXCKIT05-BL...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
- Page 5 IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all of the parts and hardware required. Hardware package may have spare parts.
-
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions. -
Page 7: Bottom Shelf
Pre-Assembly Information Model # AXCKIT05-BL Part Description LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 BOTTOM SHELF FRONT BAR BACK PANEL QTY 1 QTY 1 QTY 1 DRAWER FRONT LEFT DRAWER SIDE RIGHT DRAWER SIDE QTY 1 QTY 1 QTY 1 DRAWER BACK DRAWER BOTTOM... - Page 8 Pre-Assembly Information Model # AXCKIT05-BL Hardware Description WOOD DOWEL CAM LOCK PIN ALLEN KEY SCREW CAM LOCK Ø8 X 30mm M6 X 30mm QTY 10 SETS QTY 16 QTY 10 HANDLE ALLEN KEY M4 X 25 mm QTY 1 QTY 1 SETS Required - Flathead screwdriver Phillips screwdriver...
- Page 9 Components - Key Diagram Model # AXCKIT05-BL...
- Page 10 Assembly Model # AXCKIT05-BL Step 1 1. Attach four Cam Lock Pins 2 into pre-drilled holes at back of Drawer Front F . 2. Use Phillips screwdriver secure Cam Lock Pins. Do not over-tighten. Step 2...
- Page 11 Assembly Model # AXCKIT05-BL Step 3 Step 4 1. Align Drawer Back H with Drawer Bottom I and press firmly into slot . 2. Attach Drawer Back using two Allen Key Screws 1 through drilled holes on each Drawer Side GL , GR . 3.
- Page 12 Assembly Model # AXCKIT05-BL Step 6 1. Attach three Cam Lock Pins 2 into pre-drilled holes on each Sides Bl , BR . 2. Use Phillips screwdriver secure Cam Lock Pins. Do not over-tighten. Step 7 1. Insert four Wood Dowels 3 into guide holes on Bottom Shelf C . 2.
- Page 13 Assembly Model # AXCKIT05-BL Step 8 1. Align Cam Lock Pins and Wood Dowels with guide holes and attach Bottom Shelf C to Right Side BR . 2. Insert three Cam Locks 2 into guide holes on Bottom Shelf C . 3.
- Page 14 Assembly Model # AXCKIT05-BL Step 10 1. Align Wood Dowels with guide holes and attach Back Panel E and Front Bar D to Right Side BR . Step 11 1. Align Cam Lock Pins and Wood Dowels with guide holes and attach Left Side BL to Parts C , D , E .
- Page 15 Assembly Model # AXCKIT05-BL Step 12 1. Insert four Wood Dowels 3 into guide holes on the frame. 2. Use rubber mallet to tap Dowels 3 into bottom of holes securely. 1/2 length of Dowels should be exposed. Step 13 1.
- Page 16 Assembly Model # AXCKIT05-BL Step 14 1. Insert assembled drawer into glides on assembled Narrow Side Table.
