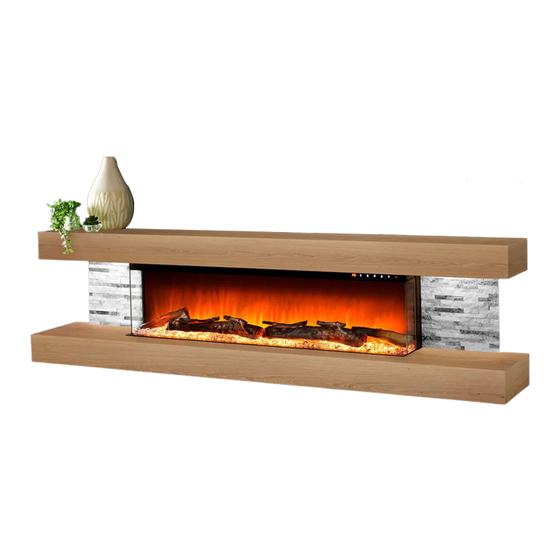

evolution fires VEGAS 72 Owner's Manual

Ac 110v-120v 50hz 1500 w
Hide thumbs Also See for VEGAS 72:
Table of Contents

Advertisement

Quick Links

Download this manual

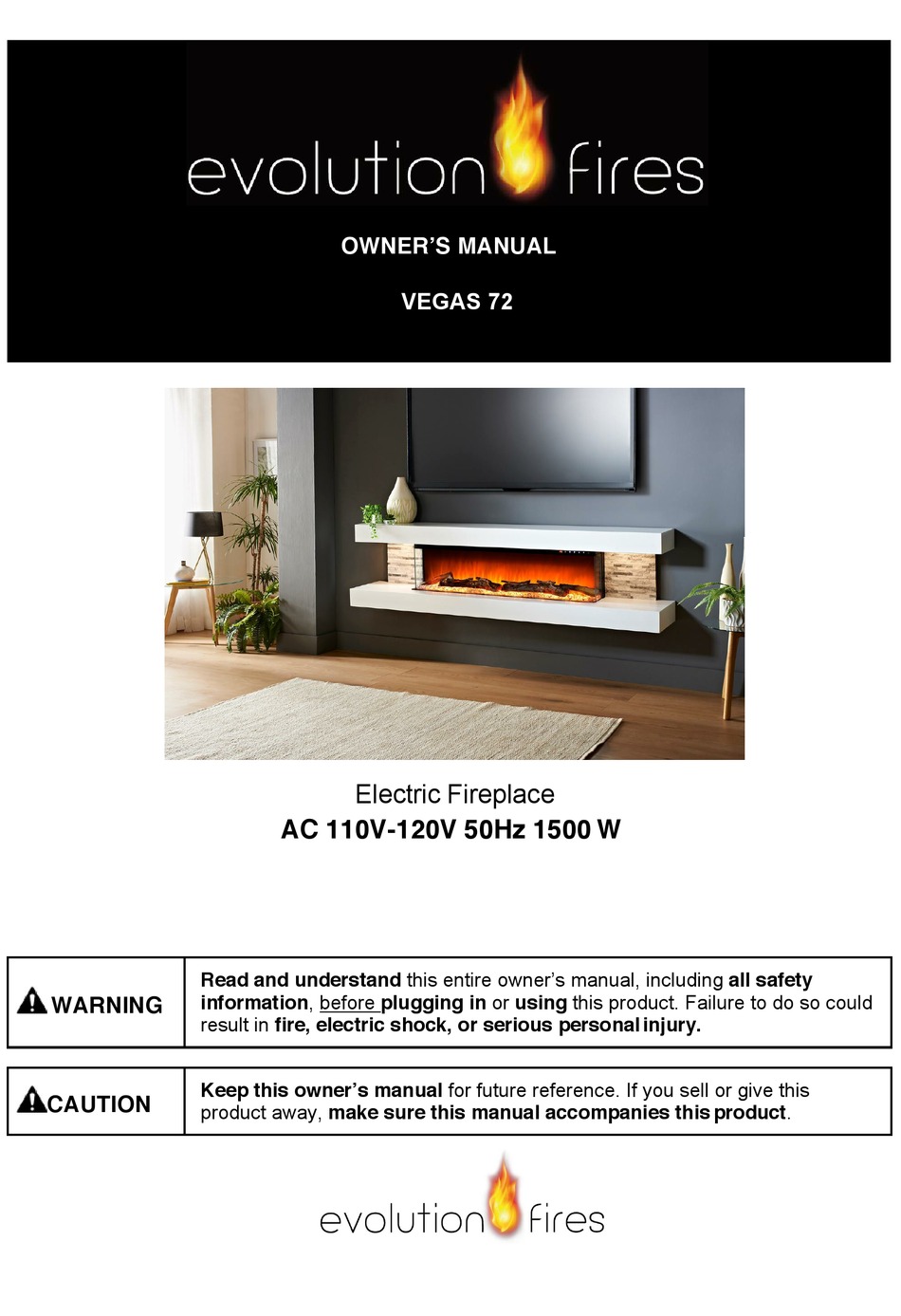

OWNER'S� MANUAL
VEGAS 72
Electric Fireplace
AC 110V-120V 50Hz 1500 W
Read and understand this entire owner's manual, including all safety
information, before plugging in or using this product. Failure to do so could
WARNING
result in fire, electric shock, or serious personal injury.
Keep this owner's manual for future reference. If you sell or give this
CAUTION
product away, make sure this manual accompanies this product.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VEGAS 72 and is the answer not in the manual?

Questions and answers

Related Manuals for evolution fires VEGAS 72

Summary of Contents for evolution fires VEGAS 72

  • Page 1 OWNER’S� MANUAL VEGAS 72 Electric Fireplace AC 110V-120V 50Hz 1500 W Read and understand this entire owner’s manual, including all safety information, before plugging in or using this product. Failure to do so could WARNING result in fire, electric shock, or serious personal injury.

  • Page 2: Important Safety Information

    IMPORTANT SAFETY INFORMATION! WARNING When using electrical appliances basic precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following: Read all instructions before using this heater. This heater is hot when in use. To avoid burning, do not touch hot surface. If provided, use handles when moving this heater.

  • Page 3: Parts And Hardware

    Preparation This product includes a GLASS panel! Always use extreme caution when handling glass. Failure to do so could result in personal injury or property damage. Remove all parts and hardware from the carton and place them on a clean, soft, dry surface. Parts and assembly steps are grouped for wall-hanging or recessing use.

  • Page 4: Installation And Assembly

    Installation and Assembly Your appliance is a wall-mounted, recessed and/or mantel installed appliance. Select a suitable location that is not susceptible to moisture and is away from drapes, furniture and high traffic areas. NOTE: Follow all National and local electrical codes. MINIMUM CLEARANCE TO COMBUSTIBLES Measurements are taken from the glass front.
  • Page 5 Engine Only Recessed To Wall Installation Hole Size ( A ) STEP A. Selection a dry wall to open a hole for fireplace box. Size of hole as below chart Figure ( A ) Framing Hole Size Model Number BEF-36WM 35.9”...
  • Page 6 ( B ) ( D ) ( E ) STEP D. Fix the metal brackets to the BOTTOM and the TOP of the fireplace box. Figure (D,E) NOTE: Metal brackets can be use as movable, please adjust to the best location as need...
  • Page 7 STEP E. Have two adult people to lift of the fireplace box and put it inside of the wall opening hole. Using the screw driver to fix all wood screws and drywall anchors through the metal brackets to the wall and fixing tightly. NOTE: Making sure that all screws and drywall anchors are well screwed.

  • Page 8: Wall Mounted Installation

    Wall Mounted Installation Due to the many different materials used on different walls, it is highly recommended that you consult your local builder before you install this appliance on the wall. A.Select a location that is not prone to moisture and is located at least 36" (914mm) away from combustible materials such as curtain drapes, furniture, bedding, paper, etc.
  • Page 9 BEF-60WM/BEF-72WM Wall Bracket Illustrated...

  • Page 10: Hard Wiring Installation

    Log-set / Crystal Ember Installation (NOTE:Please make the installation according to the embers which you bought or selected.) Glass front must be removed and the appliance must be mounted in its final location before the log-set / crystal / pebble embers are installed. If your fireplace come with log-set, You do not need to do anything just use as it is .

  • Page 11: Operation

    the appliance directly to the house hold wiring. This appliance must be electrically connected and grounded in accordance with local codes, if hard wired. In the absence of local codes, use the current CSA C22.1 CANADIAN ELECTRICAL CODE in Canada or the current ANSI/NFPA 70 NATIONAL ELECTRICAL CODE in the United States.
  • Page 12 Power Plug the power cord into a 110~120 Volt 15 Amp grounded outlet (see IMPORTANT SAFETY INFORMATION on Pages 2 and 3). Make sure the outlet is in good condition and that the plug is not loose. NEVER exceed the maximum amperage for the circuit.
  • Page 13 COLOR button: Makes the color flame effect 1. Press once. Flame color effect gets changing. changing. NOTE: color effect stays on until power button 2. Press again until desired setting is is turned off. Color flame effect must be on for reached.total 3 colors.

  • Page 14: Care And Maintenance

    Care and Maintenance Cleaning ALWAYS turn the fireplace OFF and unplug the power cord from the outlet before cleaning, performing maintenance, or moving this fireplace. Failure to do so could result in electric shock, fire, or personal injury. NEVER immerse in water or spray with water. Doing so could result in electric shock, fire, or personal injury.
