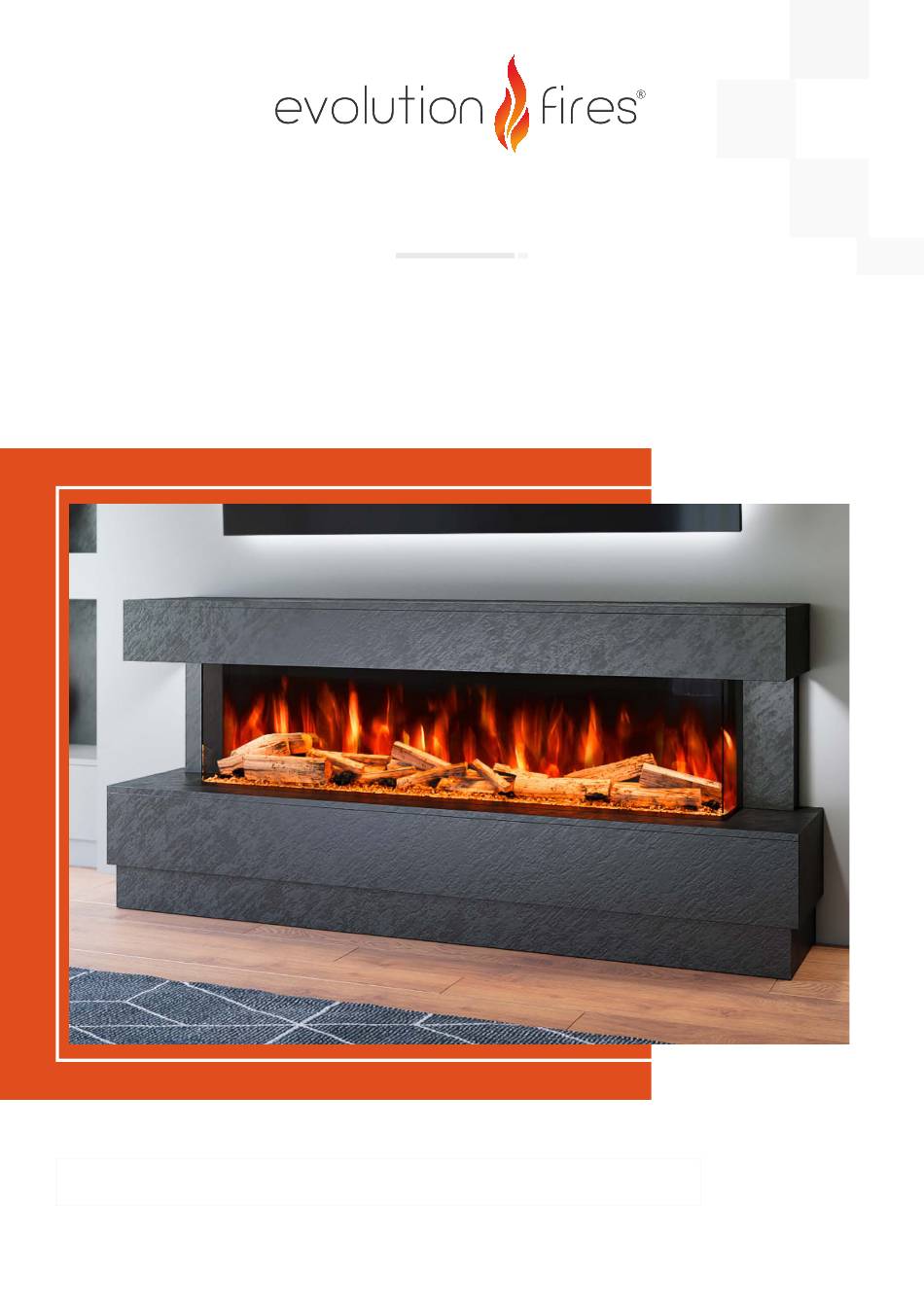

- Page 1 ADVANCE SERIES Raphael - Davinci - Angelo Electric Suites...
-
Page 2: Table Of Contents
TABLE OF CONTENT Important safety information! Parts and hardware Specification and dimension Preparation Installation - minimum clearances Installation overview Operation Unpacking Installation choose your viewing style Optional side panels Product information Installation and location Operating the fire Wi-fi / smart control Cleaning and maintenance Troubleshooting/ faq... -
Page 3: Important Safety Information
IMPORTANT SAFETY INFORMATION! WARNING When using electrical appliances basic precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following: READ ALL THE INSTRUCTIONS BEFORE USING THIS APPLIANCE This heater is hot when in use. To avoid burning, do not touch hot surface. If provided, use handles when moving this heater. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 1 m from the front of the heater and keep them away from the sides and rear. -
Page 4: Parts And Hardware
PARTS AND HARDWARE A – Fireplace Backet 2 D-Remote Control Log Set Small Crystals Smoked gems Coal SPECIFICATION AND DIMENSION Dimensions 1333 1302 EAS1300 1533 1502 EAS1500 1833 1802 EAS1800 2002 2033 EAS2000... -
Page 5: Preparation
Do not cut the plug off the power cable, this also applies to fuse spares. If the plug is removed Evolution Fires will no longer honor the warranty. The frame of the media wall must be hollow allowing air flow to reach the fire. If there is not enough airflow getting to the fire you will find your fire switches off when the heater is used. -
Page 6: Installation - Minimum Clearances
INSTALLATION - MINIMUM CLEARANCES Your appliance is a recessed and/or mantel installed appliance. Select a suitable location that is not susceptible to moisture build-up. It must be located with enough distance away from flammable materials such as curtains, furniture and high traffic areas. Note Follow all local and national electrical regulations/codes. -
Page 7: Operation
OPERATION Please read the entire owner’s manual, including all safety information, before plugging in or using this product. Failure to do so could result in fire, electric shock, or serious personal injury. Power Plug the power cord into a 220-240V 50Hz outlet (see IMPORTANT SAFETY INFORMATION on Pages 2 and 3). -
Page 8: Unpacking
UNPACKING Congratulations on your new electric fire. In order to unpack your product without causing any damage to yourself of the product, please take care and follow the instructions. Place the box on a flat surface. Make sure you have enough space. Remove any rings or bracelets which may scratch the product or be damaged during removal. -
Page 9: Installation
INSTALLATION Attach the relevant side panels or side trims to achieve your look. One sided Step 1 Side Panel Side Panel two sided DESIRED CLOSED SLDE Step 2 DESIRED CLOSED SLDE Side Panel Side Trim Three sided Step 3 Side Trim Side Trim... -
Page 10: Product Information
PRODUCT INFORMATION Product technical information : Supplier name Evolution Fires Model number EAS1300 EAS1500 EAS1800 EAS2000 Voltage 220-240V AC 50HZ Fuse 13Amp Nominal heat output 2.0KW Minimum heat output 1.0KW Maximum heat output 2.0KW PRODUCT DIMENTIONS Dimensions 1333 1302 EAS1300... -
Page 11: Installation And Location
INSTALLATION AND LOCATION Please read the instructions carefully BEFORE installation. The installation MUST be carried out by a qualified person. Connect the appliance to a single-phase AC supply of the voltage specified on the ratings plate. In the instance that the fire is connected directly to the mains electricity supply, a fused switched spur with a 13 amp fuse must be fitted. -
Page 12: Operating The Fire
OPERATING THE FIRE Manual control: This appliance can be operated manually using the controls situated on the top right hand side of the fire screen. ON/OFF POWER SWITCH- This switch is used to turn the mains supply to the appliance on or off. When the switch is in the ON position an orange indicator light will show in the middle of the screen. -
Page 13: Standby Button
Standby button: Use this button to switch the fire on / off, and unlock the remote if remote is locked. Heat button: Use this button to control heating level. Setting the colour functions: Press lamp buttons: Then rotate the rotate button, will change colour of flame light, bottom light and top light separately. -
Page 14: Adaptive Control
Adjusting the desired temperatu While the fire is heating on, use rotate button to set the desired temperature. A confirmation beep will be heard from the fire. If the room is already warmer than the temperature set then the heater will switch off until the thermostatic sensor detects a fall in temperature. Adaptive Control Adaptive control works in target temperature 25°C with high heat. -
Page 15: Wi-Fi / Smart Control
WI-FI / SMART CONTROL Preparation In order to prepare please check that your mobile phone is connected to your Wi-Fi router. Plug your fire in to the wall. Switch the fire on at the wall socket. DO NOT use the STANDBY button to turn on, use the power switch. - Page 16 3. Add your device 4. Scan the QR code Please touch the 'Add device' button or Touch the 'SCAN' symbol. Scan the below the 'Add' symbol to add your device. QR code.
- Page 17 5. Connecting to your Wi-Fi Select your Wi-Fi network and input the password of your Wi-Fi network. 6. Establishing a connection Give a long press to the standby button for around 3 seconds. You should see a red light next to the orange dot in the middle of the fire screen.
- Page 18 7. Adding your device Wait whilst the app adds the device. Please keep the phone close to the device whilst the device is syncing. If it fails to sync Repeat steps 4,5 and 6 8. Your device has been added successfully. Now your device has been successfully added click on the device and you are ready to start using your phone to control your fire.
- Page 19 1. To turn the fire on press the Switch button at the bottom of the screen 2. To set timers press the clock button at the bottom right of the screen. 7 days timer is available on the 3. Popup buttons: Mode- use this button to select preset colour mode.
- Page 20 Maintenance: You MUST remove the plug from the socket outlet and allow the heater to cool completely before cleaning or maintenance. Cleaning: A soft dry cloth, such as microfiber cloths, can be used to remove dust and for general day to day care.
-
Page 21: Safety Features
Safety Features As this appliance contains a heating component there is an automatic thermal cut out safety feature. This feature stops the product from overheating and from potentially causing a fire. If the appliance reaches a temperature above the guideline parameters the automatic thermal cut out safety feature will activate and the heater will cut out. -
Page 22: Cleaning And Maintenance
CLEANING AND MAINTENANCE Cleaning ALWAYS turn the fireplace OFF and unplug the power cord from the outlet before cleaning, performing maintenance, or moving this fireplace. Failure to do so could result in electric shock, fire, or personal injury. NEVER immerse in water or spray with water. Doing so could result in electric shock, fire, or personal injury.ming maintenance, or moving this fireplace. -
Page 23: Temperature Limiting Control
Electrical and Moving Parts: The fan motors are lubricated at the factory and will not require lubrication. Electrical components are integrated in the fireplace and are not serviceable by the consumer. Storage: Store fireplace in a clean dry place when not in use. WARNING! NO SERVICING of the internal or electrical parts should be performed by the consumer. -
Page 24: Troubleshooting/ Faq
TROUBLESHOOTING/ FAQ Problem Note Possible Cause Solution Fire not turning on Fire not plugged in or Check plug is correctly fitted If all solutions have switched on at socket into socket and the socket is been tested and turned on. problem persists, a new control panel is Disconnect plug and inspect the... -
Page 25: Product Warranty
Heater cutting out If problem persists, the Build-up of hot air Ensure inlets and outlet are free installation will need from obstruction and there are assessed to ensure it sufficient clearances surrounding adheres to all required the unit. minimumclearances as stated in this manual. - Page 26 If your fire is to be buit on to an existing chimney breast, the chimney must be blocked off as the drafts can affect the appliance causing it to over heat. If the problem continues, keep the product unplugged from the power socket and contact your supplier.
-
Page 27: Year Limited Warranty
Removal of the plug will invalidate your warranty. Product warranty only applies if purchased through an Evolution Fires authorized seller only. The warranty is only valid while the product remains with the original purchaser. If the Item is installed in another home and has a new ownership the warranty does not apply. - Page 28 GET IN TOUCH www.evolutionfires.co.uk sales@evolutionfires.com Unit 2 Firefly Square, Plantation Road, Burscough, Lancashire, L40 8JT United Kingdom...
